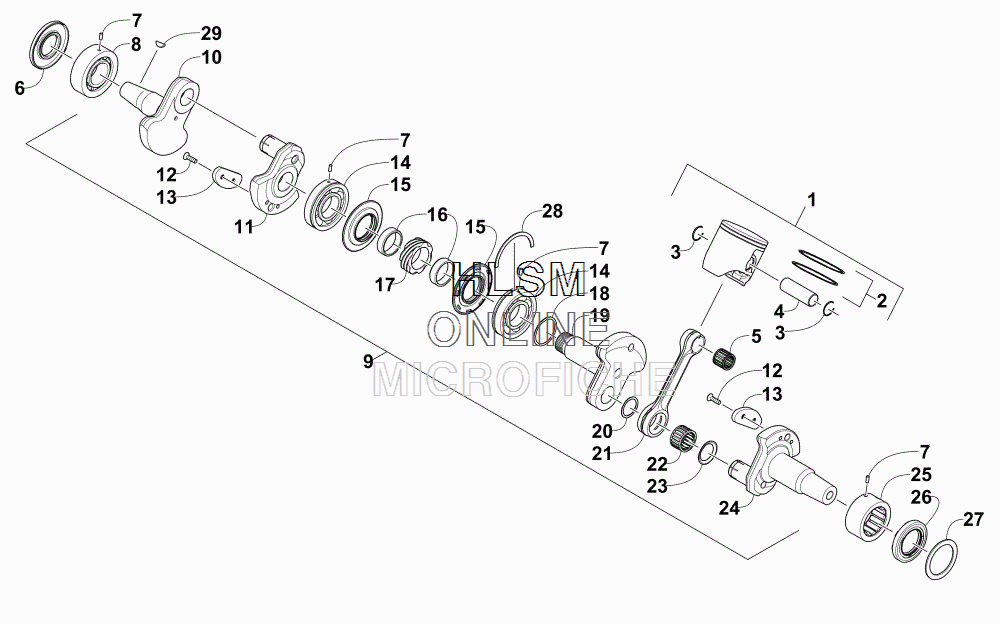

PISTON AND CRANKSHAFT для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска`
-
№АртикулНазвание
-
10905-096 PISTON, 73.8 - S.P. ASSEMBLY (INC. 2-3)PISTON, 73.8 - S.P. ASSEMBLY (INC. 2-3)
-
20905-095 ...RING,73.8-CAST IRON (SET OF 2)...RING,73.8-CAST IRON (SET OF 2)
-
30931-006 ...CIRCLIP- 20MM (SET OF 2)...CIRCLIP- 20MM (SET OF 2)
-
40905-009 PIN, PISTONPIN, PISTON
-
50932-010 BEARING, PISTON PINBEARING, PISTON PIN
-
60930-039 SEAL,OIL-MAG (35X75X7)SEAL,OIL-MAG (35X75X7)
-
70929-004 PIN, ALIGNMENTPIN, ALIGNMENT
-
80932-004 BEARING ASSEMBLY,CRANKSHAFT,MAGBEARING ASSEMBLY,CRANKSHAFT,MAG
-
91905-001 CRANKSHAFT ASSEMBLY (INC. 10-24)CRANKSHAFT ASSEMBLY (INC. 10-24)
-
100905-002 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
110905-004 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
120905-045 ...SCREW,CRANKSHAFT BALANCER...SCREW,CRANKSHAFT BALANCER
-
130905-040 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
140932-001 ...BEARING,CRANKSHAFT, MID, 35X75X17W...BEARING,CRANKSHAFT, MID, 35X75X17W
-
150930-028 ...SEAL,OIL-MID CRANKSHAFT...SEAL,OIL-MID CRANKSHAFT
-
160905-047 ...SPACER,MIDDLE OIL SEAL...SPACER,MIDDLE OIL SEAL
-
170905-041 ...GEAR,OIL PUMP DRIVE (R10:7)...GEAR,OIL PUMP DRIVE (R10:7)
-
180905-044 ...SHIM, 40 X 46 X 1 MM...SHIM, 40 X 46 X 1 MM
-
190905-003 ...CRANKSHAFT - CENTER...CRANKSHAFT - CENTER
-
200905-017 ...SHIM, 27 X 33 X 1 MM...SHIM, 27 X 33 X 1 MM
-
210905-006 ...CONNECTING ROD...CONNECTING ROD
-
220932-008 ...BEARING, CONROD, 27X34X20W...BEARING, CONROD, 27X34X20W
-
230905-016 ...WASHER SHIM, CONROD-SPECIAL...WASHER SHIM, CONROD-SPECIAL
-
240905-005 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
250932-009 BEARING, CRANKSHAFT-PTOBEARING, CRANKSHAFT-PTO
-
260930-051 SEAL, OIL - PTO-SIDE (40 X 64 X 8)SEAL, OIL - PTO-SIDE (40 X 64 X 8)
-
270930-024 SPACER,OIL SEALSPACER,OIL SEAL
-
280905-052 C-RING,CRANKSHAFT-75MMC-RING,CRANKSHAFT-75MM
-
290829-006 KEY WOODRUFF, CB SHAFTKEY WOODRUFF, CB SHAFT
