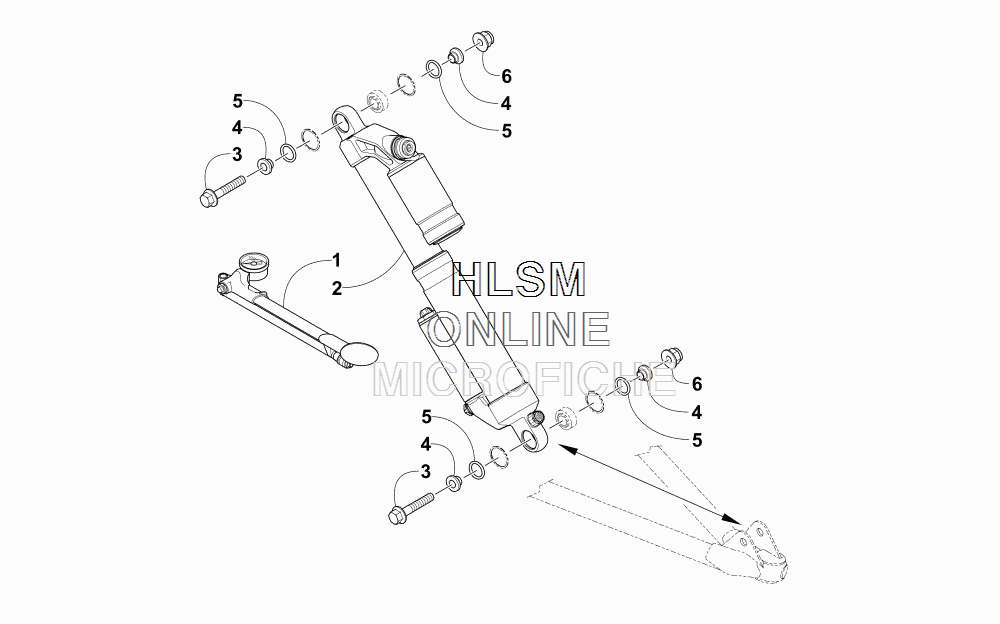

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10641-257 PUMP, SHOCK FOX FLOAT EVOL DUAL-GAUGEPUMP, SHOCK FOX FLOAT EVOL DUAL-GAUGE
-
23703-346 SHOCK ABSORBER - RIGHTSHOCK ABSORBER - RIGHT
-
23703-347 SHOCK ABSORBER - LEFTSHOCK ABSORBER - LEFT
-
38408-050 SCREW,CAP-HFH M10X1.25X50 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X50 CL8.8 Z & Y
-
43604-709 SPACER,SPHERICAL BEARINGSPACER,SPHERICAL BEARING
-
52604-698 O-RING,5/8ID X 7/8ODO-RING,5/8ID X 7/8OD
-
68427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
