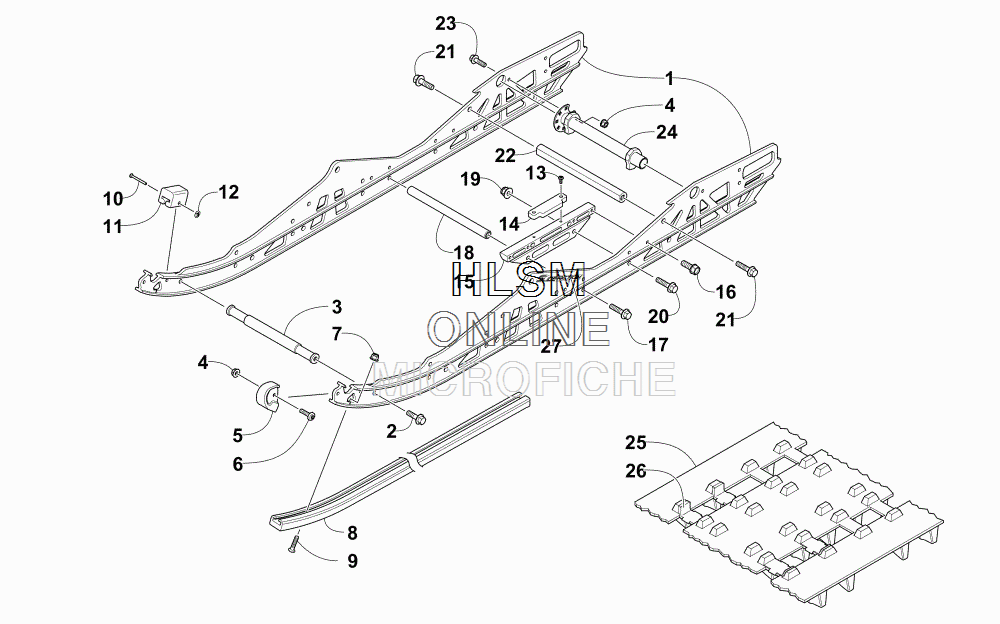

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-757 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    2704-783 RAIL, FORMED - (WHITE)
    RAIL, FORMED - (WHITE)
  • 2
    8408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 3
    3604-679 AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP
    AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP
  • 4
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 5
    4604-093 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 6
    8476-630 SCREW,MACH-TSTRH M6X1.0X30 Z & Y
    SCREW,MACH-TSTRH M6X1.0X30 Z & Y
  • 7
    8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
    NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
  • 8
    4604-089 WEARSTRIP - BLACK
    WEARSTRIP - BLACK
  • 9
    0123-859 SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
    SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
  • 10
    0123-767 RIVET,SOLID-1/8 X 1.50
    RIVET,SOLID-1/8 X 1.50
  • 11
    0104-631 PAD,SHOCK-RUBBER
    PAD,SHOCK-RUBBER
  • 12
    0123-766 NUT, PUSH
    NUT, PUSH
  • 13
    1623-175 SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z
    SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z
  • 14
    3604-793 PAD,SHOCK-LIMITER
    PAD,SHOCK-LIMITER
  • 15
    4604-114 BRACE, RAIL
    BRACE, RAIL
  • 16
    1623-948 SCREW,SELF-TAP-HFH TRILOBE-M6X20 Z & Y
    SCREW,SELF-TAP-HFH TRILOBE-M6X20 Z & Y
  • 17
    8408-841 SCREW,CAP-HFH M8X1.25X40 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X40 CL8.8 W/2353
  • 18
    3604-704 AXLE,XBRC-16.51X 195.58 (M8X1.25)
    AXLE,XBRC-16.51X 195.58 (M8X1.25)
  • 19
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 20
    8408-835 SCREW,CAP-HFH M8X1.25X35 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X35 CL8.8 Z & Y
  • 21
    8408-031 SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353
    SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353
  • 22
    3604-803 CROSSBRACE
    CROSSBRACE
  • 23
    8408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
  • 24
    2704-770 BLOCK, COUPLING
    BLOCK, COUPLING
  • 25
    2602-491 TRACK,COBRA-15X129X1.352"(2.86) (INC. 26)
    TRACK,COBRA-15X129X1.352"(2.86) (INC. 26)
  • 26
    2602-383 ...CLIP, GUIDE
    ...CLIP, GUIDE
  • 27
    0621-907 DECAL, "SLIDE ACTION"
    DECAL, "SLIDE ACTION"
