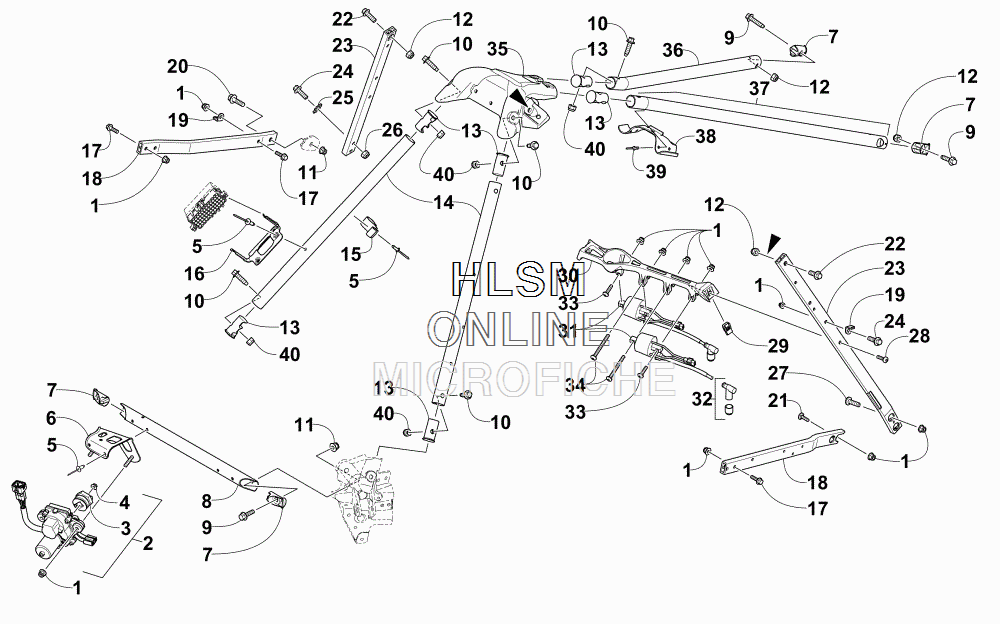

STEERING SUPPORT ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 2
    0902-012 SERVOMOTOR (INC. 3-4)
    SERVOMOTOR (INC. 3-4)
  • 3
    0902-019 ...PULLEY, CONTROLLER
    ...PULLEY, CONTROLLER
  • 4
    8424-501 ...NUT,HEX-FLG M5X0.8 CL8 Z & C
    ...NUT,HEX-FLG M5X0.8 CL8 Z & C
  • 5
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
  • 6
    4706-845 BRACKET, MOUNTING - SERVOMOTOR
    BRACKET, MOUNTING - SERVOMOTOR
  • 7
    1607-002 INSERT,UPPER SPAR
    INSERT,UPPER SPAR
  • 8
    1707-582 SUPPORT, SHOCK MOUNT BRACKET
    SUPPORT, SHOCK MOUNT BRACKET
  • 9
    1623-982 SCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
    SCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
  • 10
    1623-836 SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z & Y-MPT
    SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z & Y-MPT
  • 11
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 12
    8422-802 NUT,HEX-THK NYL M8X1.25 CL8 Z & Y
    NUT,HEX-THK NYL M8X1.25 CL8 Z & Y
  • 13
    1607-187 INSERT,UPPER SPAR-10MM MALE
    INSERT,UPPER SPAR-10MM MALE
  • 14
    2707-497 SPAR, FRONT - (BLACK)
    SPAR, FRONT - (BLACK)
  • 15
    1623-938 CLAMP,THROTTLE/FUEL LINE
    CLAMP,THROTTLE/FUEL LINE
  • 16
    0645-653 BRACKET, MOUNTING - FUSE BLOCK
    BRACKET, MOUNTING - FUSE BLOCK
  • 17
    8408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
  • 18
    0607-248 SUPPORT, CHASSIS - RIGHT
    SUPPORT, CHASSIS - RIGHT
  • 18
    1607-583 SUPPORT, CHASSIS - LEFT
    SUPPORT, CHASSIS - LEFT
  • 19
    2612-707 TAB, SPRING
    TAB, SPRING
  • 20
    8408-885 SCREW,CAP-HFH M8X1.25X85 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X85 CL8.8 Z & Y
  • 21
    1623-917 BOLT,CARRIAGE-M6X1.0X20 Z & Y CL 8.8
    BOLT,CARRIAGE-M6X1.0X20 Z & Y CL 8.8
  • 22
    8408-820 SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
  • 23
    0607-252 SUPPORT, SIDE - REAR - RIGHT
    SUPPORT, SIDE - REAR - RIGHT
  • 23
    1607-581 SUPPORT, SIDE - REAR - LEFT
    SUPPORT, SIDE - REAR - LEFT
  • 24
    8408-625 SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
  • 25
    8053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
    WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
  • 26
    8422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
  • 27
    8476-616 SCREW,MACH-TSTRH M6X1.0X16 Z & Y
    SCREW,MACH-TSTRH M6X1.0X16 Z & Y
  • 28
    8476-626 SCREW,MACH-TSTRH M6X1.0X25 Z & Y W/2353
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y W/2353
  • 29
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 30
    0708-626 BRACKET, MOUNTING - COIL
    BRACKET, MOUNTING - COIL
  • 31
    0902-034 COIL, IGNITION - ASSEMBLY (INC. 32)
    COIL, IGNITION - ASSEMBLY (INC. 32)
  • 32
    3006-367 ...CAP, SPARK PLUG - (NGK TB05EMD)
    ...CAP, SPARK PLUG - (NGK TB05EMD)
  • 33
    8468-640 SCREW,MACH-TSPNH M6X1.0X40 CL8.8 (BLACK)
    SCREW,MACH-TSPNH M6X1.0X40 CL8.8 (BLACK)
  • 34
    8468-650 SCREW,MACH-TSPNH M6X1.0X50 CL8.8 (BLACK)
    SCREW,MACH-TSPNH M6X1.0X50 CL8.8 (BLACK)
  • 35
    2707-491 SUPPORT, STEERING
    SUPPORT, STEERING
  • 36
    2707-498 SPAR, REAR - RIGHT
    SPAR, REAR - RIGHT
  • 37
    5706-998 SPAR, REAR - LEFT (INC. 38-39)
    SPAR, REAR - LEFT (INC. 38-39)
  • 38
    6606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE
    ...BRACKET, HOLD-DOWN - SEAT-BASE
  • 39
    8060-484 ...RIVET, BLIND-DH SS53 ZINC
    ...RIVET, BLIND-DH SS53 ZINC
  • 40
    8422-002 NUT,HEX-THK NYL M10X1.25 CL8 Z & Y
    NUT,HEX-THK NYL M10X1.25 CL8 Z & Y
