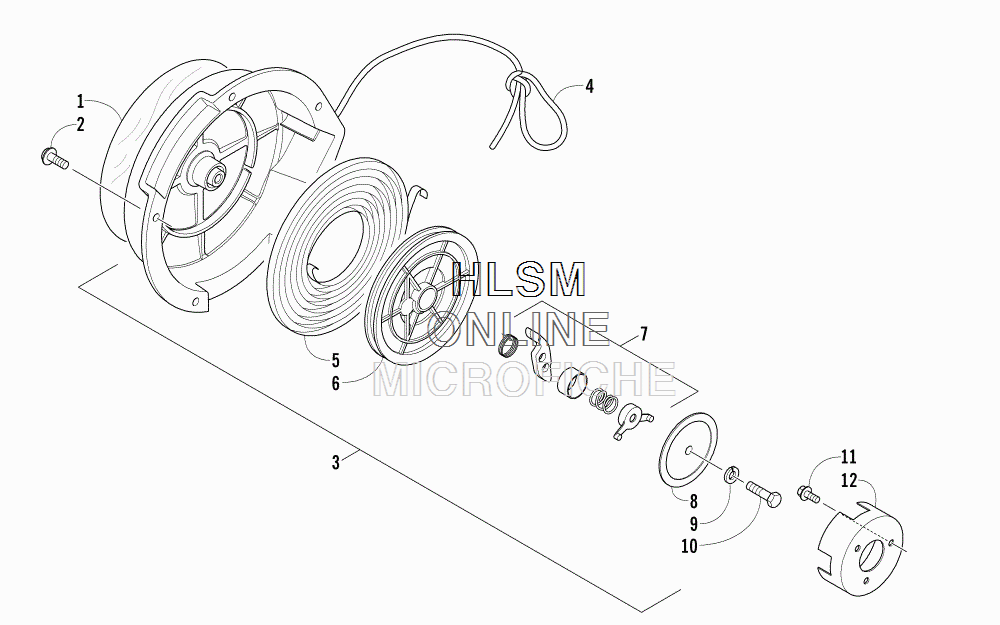

RECOIL STARTER для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4606-425 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 2
    0923-024 SCREW,CAP-TSRDWH M6X1X16 CL 10.9
    SCREW,CAP-TSRDWH M6X1X16 CL 10.9
  • 3
    0920-001 STARTER ASSEMBLY (INC. 4-10)
    STARTER ASSEMBLY (INC. 4-10)
  • 4
    3006-889 ...ROPE, STARTER - CTL (6 MM DIA.) (203 CM)
    ...ROPE, STARTER - CTL (6 MM DIA.) (203 CM)
  • 5
    0920-015 ...SPIRAL SPRING
    ...SPIRAL SPRING
  • 6
    0920-016 ...ROLLER, STARTER
    ...ROLLER, STARTER
  • 7
    0920-018 ...RATCHET SET
    ...RATCHET SET
  • 8
    0920-017 ...PLATE, FRICTION
    ...PLATE, FRICTION
  • 9
    8051-247 ...WASHER,SPR LOCK-5/16 .314X.593X.097 Z & Y
    ...WASHER,SPR LOCK-5/16 .314X.593X.097 Z & Y
  • 10
    8408-826 ...SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
    ...SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 11
    0923-023 SCREW,CAP-HFH M8X1.25X12 CL8.8
    SCREW,CAP-HFH M8X1.25X12 CL8.8
  • 12
    0920-002 PULLEY, STARTER
    PULLEY, STARTER
