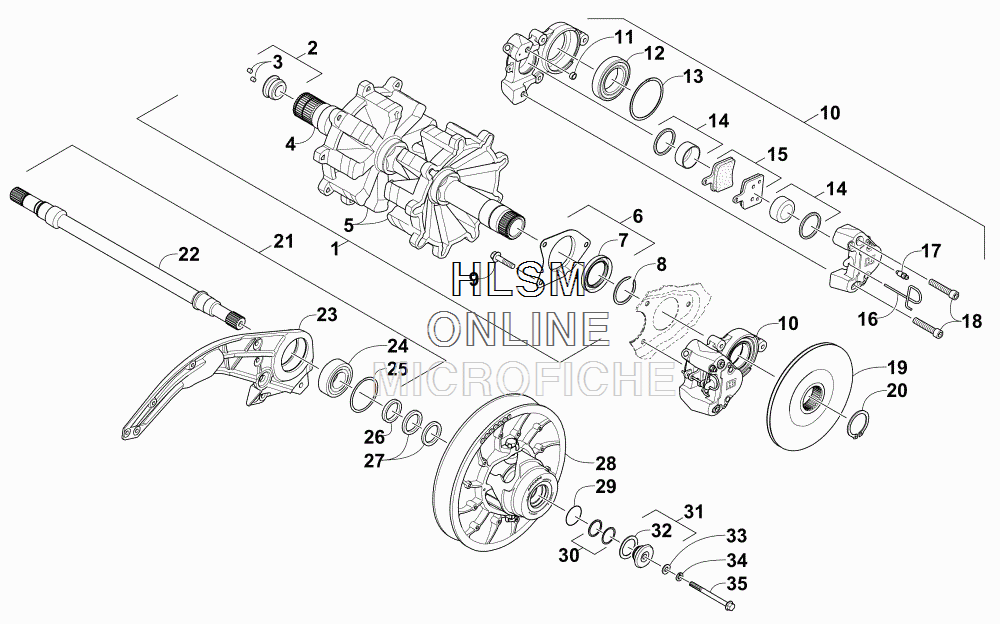

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat PANTERA 7000 (BLACK) - 2015 года выпуска`

№

Артикул

Название
1

0728-225 TRACK, DRIVE - ASSEMBLY (INC. 2-8)

TRACK, DRIVE - ASSEMBLY (INC. 2-8)

75 910 ₽
2

1702-243 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)

...PLUG, MAGNETIC - ASSEMBLY (INC. 3)

7 480 ₽
3

2602-211 ......MAGNET,.250 X .250

......MAGNET,.250 X .250

920 ₽
4

2602-740 ...DRIVESHAFT

...DRIVESHAFT

39 310 ₽
5

2602-771 ...SPROCKET, DRIVE

...SPROCKET, DRIVE

10 390 ₽
6

1702-206 ...PLATE, RETAINING - SEAL (INC. 7)

...PLATE, RETAINING - SEAL (INC. 7)

2 070 ₽
7

1602-344 ......SEAL,OIL-45MM X 65MM X 8MM

......SEAL,OIL-45MM X 65MM X 8MM

1 240 ₽
8

2602-233 ...SNAP RING(FS-0175)

...SNAP RING(FS-0175)

340 ₽
9

8408-831 SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353

SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353

150 ₽
10

2602-486 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)

CALIPER, BRAKE - ASSEMBLY (INC. 11-18)

63 430 ₽
11

2602-411 ...SEAL,CROSSOVER

...SEAL,CROSSOVER

520 ₽
12

2602-198 ...BEARING (6009-2RSFP-C3)

...BEARING (6009-2RSFP-C3)

3 740 ₽
13

2602-280 ...RING,SNAP(EH-75)

...RING,SNAP(EH-75)

540 ₽
14

2602-410 ...PISTON SET

...PISTON SET

11 230 ₽
15

1702-245 ...PAD, BRAKE - SET (INC. 16)

...PAD, BRAKE - SET (INC. 16)

17 050 ₽
16

2602-409 ......PIN, RETAINING

......PIN, RETAINING

860 ₽
17

2602-408 ...FITTING,BLEEDER

...FITTING,BLEEDER

860 ₽
18

2602-412 ...BOLT,BRAKE CALIPER

...BOLT,BRAKE CALIPER

710 ₽
19

2602-249 DISK,BRAKE-FORGED-34T SPLINED-BOTTOM

DISK,BRAKE-FORGED-34T SPLINED-BOTTOM

34 520 ₽
20

2602-629 SNAP RING-(MSH-43)

SNAP RING-(MSH-43)

400 ₽
21

1702-370 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)

SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)

61 980 ₽
22

2602-772 ...SHAFT, DRIVEN

...SHAFT, DRIVEN

23 710 ₽
23

1707-585 ...SUPPORT, CHASSIS - LEFT

...SUPPORT, CHASSIS - LEFT

35 150 ₽
24

2602-524 ...BEARING,30 X 62 X 16-6206 2RLD-C3

...BEARING,30 X 62 X 16-6206 2RLD-C3

2 070 ₽
25

2602-729 ...SNAP RING (FH-062)

...SNAP RING (FH-062)

540 ₽
26

0648-839 SPACER-30IDX38ODX7.62

SPACER-30IDX38ODX7.62

5 610 ₽
27

0648-816 WASHER, SHIM (.030 IN.)

WASHER, SHIM (.030 IN.)

1 240 ₽
27

0648-817 WASHER, SHIM (.060 IN.)

WASHER, SHIM (.060 IN.)

860 ₽
27

0648-818 WASHER, SHIM (.090 IN.)

WASHER, SHIM (.090 IN.)

420 ₽
28

0726-339 CLUTCH, DRIVEN - ASSEMBLY

CLUTCH, DRIVEN - ASSEMBLY

109 820 ₽
29

0648-441 O-RING,ADJUSTER SHEAVE (2-121)

O-RING,ADJUSTER SHEAVE (2-121)

90 ₽
30

0648-715 WASHER, SHIM (.030 IN.)

WASHER, SHIM (.030 IN.)

190 ₽
30

0648-716 WASHER, SHIM (.060 IN.)

WASHER, SHIM (.060 IN.)

520 ₽
30

0648-714 WASHER, SHIM (.090 IN.)

WASHER, SHIM (.090 IN.)

310 ₽
31

1702-114 KIT,ADJUSTER-SHEAVE W/WASHER (INC. 32)

KIT,ADJUSTER-SHEAVE W/WASHER (INC. 32)

4 780 ₽
32

0648-788 ...WASHER,THRUST-DRIVEN ADJUSTER

...WASHER,THRUST-DRIVEN ADJUSTER

290 ₽
33

8450-127 WASHER,FLAT-M8-9.12 X 18.80 X 2.30Z & Y

WASHER,FLAT-M8-9.12 X 18.80 X 2.30Z & Y

150 ₽
34

8051-242 WASHER,SPR LOCK-5/16 .314X.583X.078 Z & Y

WASHER,SPR LOCK-5/16 .314X.583X.078 Z & Y

250 ₽
35

8408-801 SCREW,CAP-HFH M8X1.25X100 CL8.8Z & Y/W2353

SCREW,CAP-HFH M8X1.25X100 CL8.8Z & Y/W2353

3 110 ₽
