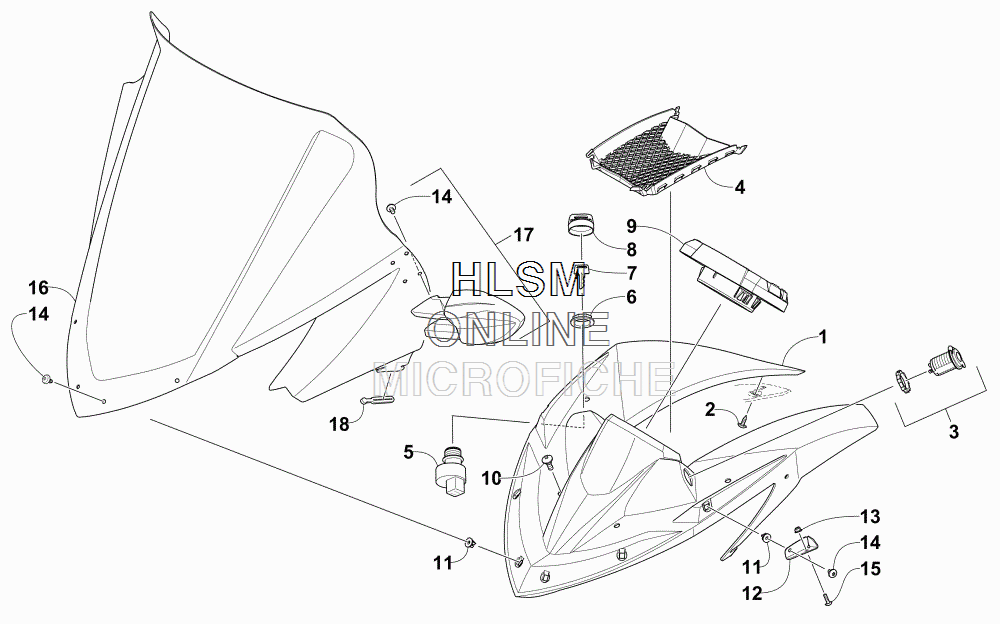

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat PANTERA 7000 (BLACK) - 2015 года выпуска
-
№АртикулНазвание
-
16606-628 POD, INSTRUMENT - (BLACK)POD, INSTRUMENT - (BLACK)
-
21623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
30641-897 OUTLET, ACCESSORY - 12V DCOUTLET, ACCESSORY - 12V DC
-
46606-556 VENT,PODVENT,POD
-
50609-911 SWITCH, IGNITION (INC. 6-8)SWITCH, IGNITION (INC. 6-8)
-
60430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
70430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
70430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
80430-054 ...COVER, KEY...COVER, KEY
-
90720-029 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
102623-042 SCREW,SHOULDER-TSBH-M6-1.0 X 18 - (BLACK)SCREW,SHOULDER-TSBH-M6-1.0 X 18 - (BLACK)
-
111623-025 INSERT GROMMET,SCREW-PLASTICINSERT GROMMET,SCREW-PLASTIC
-
125706-668 BRACKET, MOUNTING - WINDSHIELD - RIGHT - (BLACK)BRACKET, MOUNTING - WINDSHIELD - RIGHT - (BLACK)
-
125706-669 BRACKET, MOUNTING - WINDSHIELD - LEFT - (BLACK)BRACKET, MOUNTING - WINDSHIELD - LEFT - (BLACK)
-
138427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & YNUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
-
142623-146 ...SCREW,SELF TAP-TSTRH-M6X14-BOSSCREW...SCREW,SELF TAP-TSTRH-M6X14-BOSSCREW
-
158477-516 SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)
-
166606-587 WINDSHIELD - HIGH - TOURINGWINDSHIELD - HIGH - TOURING
-
176639-769 MIRROR KIT (SINGLE) - BLACK (INC. FOUR NO. 14)MIRROR KIT (SINGLE) - BLACK (INC. FOUR NO. 14)
-
176639-770 MIRROR KIT (PAIR) - BLACK (INC. EIGHT NO. 14)MIRROR KIT (PAIR) - BLACK (INC. EIGHT NO. 14)
-
182606-853 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
