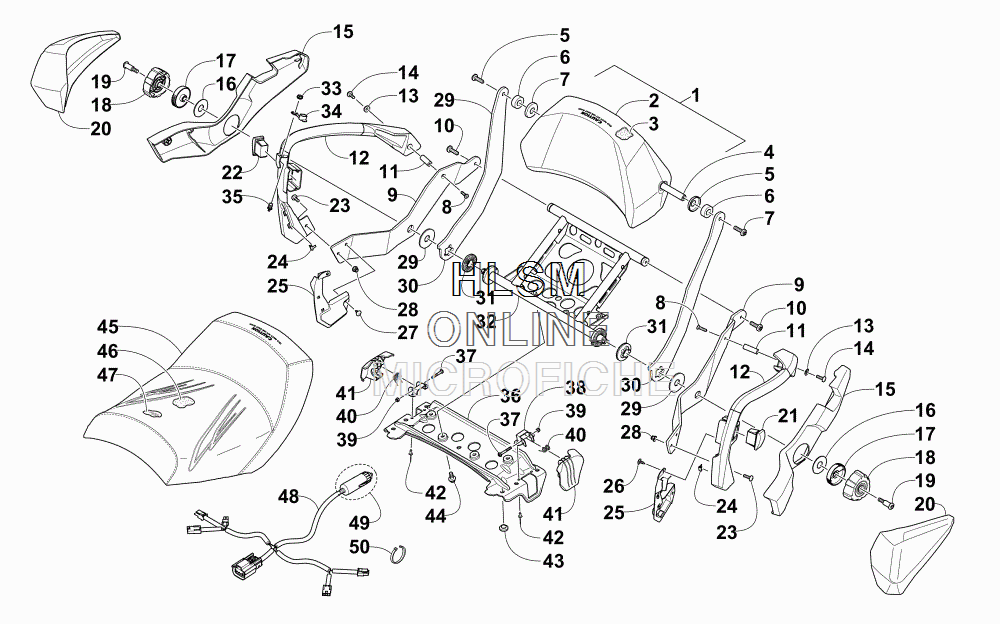

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat PANTERA 7000 (BLACK) - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-950 BACKREST - ASSEMBLY (INC. 2-3)
    BACKREST - ASSEMBLY (INC. 2-3)
  • 2
    5706-949 ...COVER,BACKREST-PANTERA
    ...COVER,BACKREST-PANTERA
  • 3
    0717-210 ...FOAM, BACKREST
    ...FOAM, BACKREST
  • 4
    6606-593 AXLE, BACKREST
    AXLE, BACKREST
  • 5
    0723-003 WASHER,CUP-PTD (BLACK)
    WASHER,CUP-PTD (BLACK)
  • 6
    0616-547 BLOCK, TENSION - BACKREST
    BLOCK, TENSION - BACKREST
  • 7
    8477-831 SCREW,MACH-TSTRH M8X1.25X30 Z & BLK W/2353
    SCREW,MACH-TSTRH M8X1.25X30 Z & BLK W/2353
  • 8
    2623-073 SCREW,MACH-TSFH M6X1.0X25 Z & B-W/2353
    SCREW,MACH-TSFH M6X1.0X25 Z & B-W/2353
  • 9
    5706-576 BRACKET, MOUNTING - HANDHOLD - RIGHT
    BRACKET, MOUNTING - HANDHOLD - RIGHT
  • 9
    5706-577 BRACKET, MOUNTING - HANDHOLD - LEFT
    BRACKET, MOUNTING - HANDHOLD - LEFT
  • 10
    8468-621 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353
    SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353
  • 11
    6606-678 AXLE, HANDHOLD
    AXLE, HANDHOLD
  • 12
    6606-828 HANDHOLD - RIGHT
    HANDHOLD - RIGHT
  • 12
    5606-085 HANDHOLD - LEFT
    HANDHOLD - LEFT
  • 13
    8050-218 WASHER
    WASHER
  • 14
    1623-789 SCREW,MACH-TSTRH M6X1.0X20 RIEBLK W/2510
    SCREW,MACH-TSTRH M6X1.0X20 RIEBLK W/2510
  • 15
    6606-690 COVER, BRACKET- HANDHOLD - RIGHT
    COVER, BRACKET- HANDHOLD - RIGHT
  • 15
    6606-691 COVER, BRACKET- HANDHOLD - LEFT
    COVER, BRACKET- HANDHOLD - LEFT
  • 16
    1623-986 SPACER-19X49X1.89
    SPACER-19X49X1.89
  • 17
    6606-643 TENSIONER, BACKREST
    TENSIONER, BACKREST
  • 18
    6606-644 KNOB TENSIONER
    KNOB TENSIONER
  • 19
    2623-072 SCREW, SHOULDER
    SCREW, SHOULDER
  • 20
    6606-494 WINDGUARD - RIGHT
    WINDGUARD - RIGHT
  • 20
    6606-495 WINDGUARD - LEFT
    WINDGUARD - LEFT
  • 21
    0609-836 SWITCH, HEATED SEAT
    SWITCH, HEATED SEAT
  • 22
    0609-835 SWITCH, HANDWARMER
    SWITCH, HANDWARMER
  • 23
    8468-620 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)
    SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)
  • 24
    1623-703 CLIP, SPEED-WIRE RETAINER
    CLIP, SPEED-WIRE RETAINER
  • 25
    6606-866 COVER, HARNESS - RIGHT
    COVER, HARNESS - RIGHT
  • 25
    6606-867 COVER, HARNESS - LEFT
    COVER, HARNESS - LEFT
  • 26
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 27
    1623-661 SCREW,PT THD-TSTRH K60-2.69X16MM RIE (BLACK)
    SCREW,PT THD-TSTRH K60-2.69X16MM RIE (BLACK)
  • 28
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 29
    1623-758 WASHER,RUBBER-17.9ID X 53.1OD X 3 THK
    WASHER,RUBBER-17.9ID X 53.1OD X 3 THK
  • 30
    5706-578 BRACKET, BACKREST - RIGHT
    BRACKET, BACKREST - RIGHT
  • 30
    5706-579 BRACKET, BACKREST - LEFT
    BRACKET, BACKREST - LEFT
  • 31
    6606-642 PLATE, LOCKING
    PLATE, LOCKING
  • 32
    5706-443 BASE, SEAT - PASSENGER
    BASE, SEAT - PASSENGER
  • 33
    0609-944 NUT,RETAINING-OUTLET
    NUT,RETAINING-OUTLET
  • 34
    0609-945 COVER, OUTLET - SHIELD
    COVER, OUTLET - SHIELD
  • 35
    0609-940 OUTLET, HEATED SHIELD
    OUTLET, HEATED SHIELD
  • 36
    5706-453 PLATE, BASE- PASSENGER SEAT
    PLATE, BASE- PASSENGER SEAT
  • 37
    2623-064 SCREW,MACH-TSPNH-M5X.8X40-CL8.8 - (BLACK)
    SCREW,MACH-TSPNH-M5X.8X40-CL8.8 - (BLACK)
  • 38
    6606-538 BRACKET, LATCH
    BRACKET, LATCH
  • 39
    8422-502 NUT, M5 X 1 NYL Z & Y
    NUT, M5 X 1 NYL Z & Y
  • 40
    6606-540 SPRING, LATCH
    SPRING, LATCH
  • 41
    6606-682 HANDLE, LATCH - RIGHT
    HANDLE, LATCH - RIGHT
  • 41
    6606-683 HANDLE, LATCH - LEFT
    HANDLE, LATCH - LEFT
  • 42
    1623-257 RIVET,3/16 HUCK-M5
    RIVET,3/16 HUCK-M5
  • 43
    0406-877 BUMPER,SEAT
    BUMPER,SEAT
  • 44
    8408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 45
    5706-857 COVER, SEAT - PASSENGER
    COVER, SEAT - PASSENGER
  • 46
    0717-221 FOAM, SEAT - PASSENGER
    FOAM, SEAT - PASSENGER
  • 47
    0609-869 PAD, SEAT HEATER
    PAD, SEAT HEATER
  • 48
    1686-696 HARNESS, SEAT - PASSENGER
    HARNESS, SEAT - PASSENGER
  • 49
    0630-334 PLUG, ACCESSORY
    PLUG, ACCESSORY
  • 50
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
