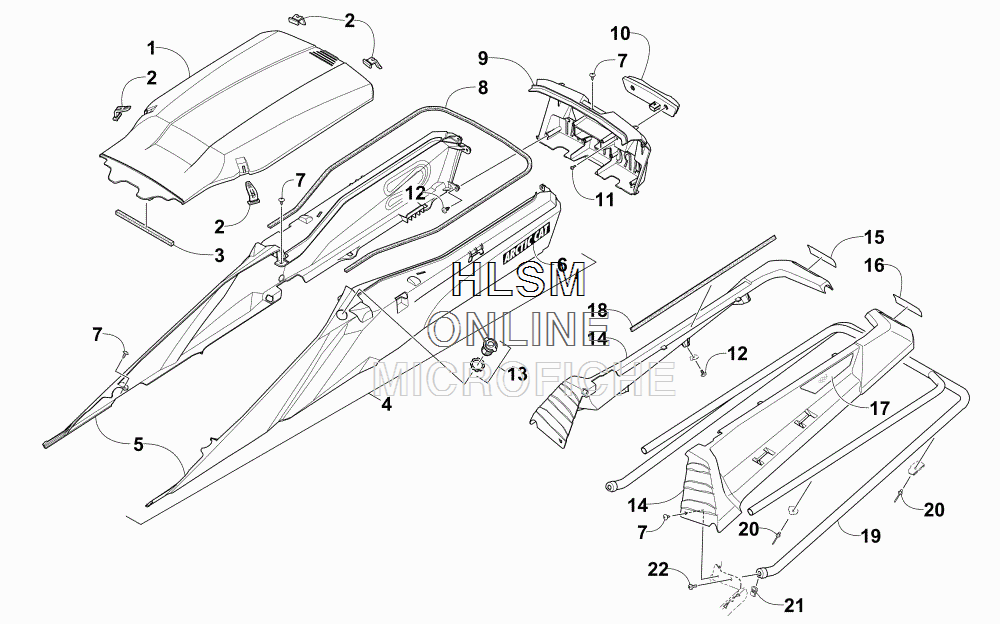

REAR BUMPER- STORAGE- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTERA 7000 (BLACK) - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-697 LID, STORAGE BOX
    LID, STORAGE BOX
  • 2
    4606-926 STRAP,HOLDDOWN-STORAGE BOX LID
    STRAP,HOLDDOWN-STORAGE BOX LID
  • 3
    0617-746 SEAL,FOAM-LID-FRONT
    SEAL,FOAM-LID-FRONT
  • 4
    4718-426 FASCIA, FRONT RACK - RIGHT - ASSEMBLY (INC. 5 AND ONE NO. 6)
    FASCIA, FRONT RACK - RIGHT - ASSEMBLY (INC. 5 AND ONE NO. 6)
  • 4
    4718-427 FASCIA, FRONT RACK - LEFT - ASSEMBLY (INC. 5 AND ONE NO. 6)
    FASCIA, FRONT RACK - LEFT - ASSEMBLY (INC. 5 AND ONE NO. 6)
  • 5
    6606-684 ...FASCIA, FRONT RACK - RIGHT - (BLACK)
    ...FASCIA, FRONT RACK - RIGHT - (BLACK)
  • 5
    6606-685 ...FASCIA, FRONT RACK - LEFT - (BLACK)
    ...FASCIA, FRONT RACK - LEFT - (BLACK)
  • 6
    1621-698 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
    ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 8
    0617-741 SEAL, LID - REAR
    SEAL, LID - REAR
  • 9
    6606-499 FASCIA, RACK - REAR
    FASCIA, RACK - REAR
  • 10
    0609-898 TAILLIGHT, LED (RED)
    TAILLIGHT, LED (RED)
  • 11
    8476-512 SCREW,MACH-TSTRH M5X0.8X12 Z & Y
    SCREW,MACH-TSTRH M5X0.8X12 Z & Y
  • 12
    2623-017 SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW-RIE BL
    SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW-RIE BL
  • 13
    0641-897 OUTLET, ACCESSORY - 12V DC
    OUTLET, ACCESSORY - 12V DC
  • 14
    4718-346 PANEL, REAR BUMPER W/DECALS - RIGHT (INC. 15 AND 17)
    PANEL, REAR BUMPER W/DECALS - RIGHT (INC. 15 AND 17)
  • 14
    4718-347 PANEL, REAR BUMPER W/DECALS - LEFT (INC. 16-17)
    PANEL, REAR BUMPER W/DECALS - LEFT (INC. 16-17)
  • 15
    5611-852 ...DECAL, WARNING - TOWING (FRENCH)
    ...DECAL, WARNING - TOWING (FRENCH)
  • 16
    5611-853 ...DECAL, WARNING - TOWING (ENGLISH)
    ...DECAL, WARNING - TOWING (ENGLISH)
  • 17
    1621-394 ...DECAL, REFLECTOR - RIGHT - (RED)
    ...DECAL, REFLECTOR - RIGHT - (RED)
  • 17
    1621-395 ...DECAL, REFLECTOR - LEFT - (RED)
    ...DECAL, REFLECTOR - LEFT - (RED)
  • 18
    0617-742 SEAL, BUMPER PANEL
    SEAL, BUMPER PANEL
  • 19
    1707-628 BUMPER, REAR - (BLACK)
    BUMPER, REAR - (BLACK)
  • 20
    8060-706 RIVET,BLIND-DH SS64 (BLACK)
    RIVET,BLIND-DH SS64 (BLACK)
  • 21
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 22
    8476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & Y
    SCREW,MACH-TSTRH M6X1.0X20 Z & Y
