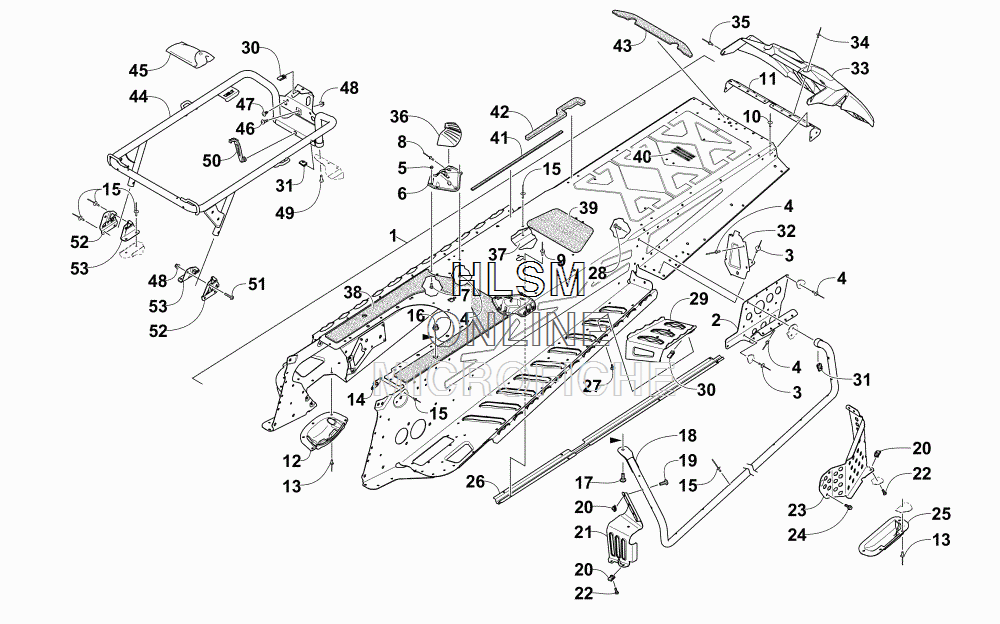

TUNNEL AND REAR RACK ASSEMBLY для Arctic Cat PANTERA 7000 (BLACK) - 2015 года выпуска
-
№АртикулНазвание
-
-1707-940 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-875 TUNNEL ASSEMBLY (INC. 2-11)TUNNEL ASSEMBLY (INC. 2-11)
-
22707-090 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)...BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
-
22707-091 ...BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)...BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
-
38060-686 ...RIVET,BLIND-DH SS64 ZINC...RIVET,BLIND-DH SS64 ZINC
-
41623-241 ...RIVET,3/16 HUCK-M6...RIVET,3/16 HUCK-M6
-
58422-502 ...NUT, M5 X 1 NYL Z & Y...NUT, M5 X 1 NYL Z & Y
-
61707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
61707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
78476-512 ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
-
81623-257 ...RIVET,3/16 HUCK-M5...RIVET,3/16 HUCK-M5
-
98060-504 ...RIVET,BLIND-DH SS53 (BLACK)...RIVET,BLIND-DH SS53 (BLACK)
-
108060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
-
111607-153 ...END CAP, TUNNEL...END CAP, TUNNEL
-
121607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
138061-708 RIVET, BLIND-LF SS66 (BLACK)RIVET, BLIND-LF SS66 (BLACK)
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-706 RIVET,BLIND-DH SS64 (BLACK)RIVET,BLIND-DH SS64 (BLACK)
-
168427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
178476-820 SCREW,MACH-TSTRH M8X1.25X20 Z & YSCREW,MACH-TSTRH M8X1.25X20 Z & Y
-
181707-602 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
181707-603 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
198468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
210607-997 FOOTREST - LEFTFOOTREST - LEFT
-
228470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
-
231607-346 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
248408-613 SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
260630-301 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
271623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
288477-620 SCREW,MACH-TSTRH M6X1.0X20 Z & (BLACK)SCREW,MACH-TSTRH M6X1.0X20 Z & (BLACK)
-
291607-288 FOOTREST, PASSENGER - RIGHTFOOTREST, PASSENGER - RIGHT
-
291607-289 FOOTREST, PASSENGER - LEFTFOOTREST, PASSENGER - LEFT
-
301623-030 CLIP, U-NUTCLIP, U-NUT
-
310423-577 CLIP, U-NUTCLIP, U-NUT
-
321607-194 CLOSE OFF, RUNNING BOARD - RIGHTCLOSE OFF, RUNNING BOARD - RIGHT
-
321607-195 CLOSE OFF, RUNNING BOARD - LEFTCLOSE OFF, RUNNING BOARD - LEFT
-
336606-486 SNOWFLAPSNOWFLAP
-
348061-706 RIVET,BLIND-LF SS64 (BLACK)RIVET,BLIND-LF SS64 (BLACK)
-
358061-506 RIVET,BLIND-LF SS54 (BLACK)RIVET,BLIND-LF SS54 (BLACK)
-
366606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
366606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
371607-459 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
380617-750 PAD, FUEL TANK - FRONTPAD, FUEL TANK - FRONT
-
396606-935 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
402621-316 DECAL, CAPACITY - STORAGE BOXDECAL, CAPACITY - STORAGE BOX
-
410617-743 FOAM, SIDE PANELFOAM, SIDE PANEL
-
420617-748 FOAM, RACK - RIGHTFOAM, RACK - RIGHT
-
420617-749 FOAM, RACK - LEFTFOAM, RACK - LEFT
-
430617-744 FOAM, FASCIA - REARFOAM, FASCIA - REAR
-
445706-635 RACK, REAR - (BLACK)RACK, REAR - (BLACK)
-
450744-064 KIT,TOOL BAG-4 STROKE-ASSEMBLYKIT,TOOL BAG-4 STROKE-ASSEMBLY
-
460423-356 SCREW, SHOULDER-M6-1.0 X 22 RIE (BLACK)SCREW, SHOULDER-M6-1.0 X 22 RIE (BLACK)
-
472623-017 SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW-RIE BLSCREW,SELF-TAP-TSTRH-M6X12-BOSCRW-RIE BL
-
488427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
492623-059 SCREW,MACH-TSPNH M6X1X16 MPT Z & Y-W/2353SCREW,MACH-TSPNH M6X1X16 MPT Z & Y-W/2353
-
506606-392 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
518468-635 SCREW,MACH-TSPNH M6X1.0X35 CL8.8 (BLACK)SCREW,MACH-TSPNH M6X1.0X35 CL8.8 (BLACK)
-
525706-450 BRACKET, MOUNTING - RACK - OUTER - RIGHT - (BLACK)BRACKET, MOUNTING - RACK - OUTER - RIGHT - (BLACK)
-
525706-451 BRACKET, MOUNTING - RACK - OUTER - LEFT - (BLACK)BRACKET, MOUNTING - RACK - OUTER - LEFT - (BLACK)
-
535706-448 BRACKET, MOUNTING - RACK - INNER - RIGHT - (BLACK)BRACKET, MOUNTING - RACK - INNER - RIGHT - (BLACK)
-
535706-449 BRACKET, MOUNTING - RACK - INNER - LEFT - (BLACK)BRACKET, MOUNTING - RACK - INNER - LEFT - (BLACK)
