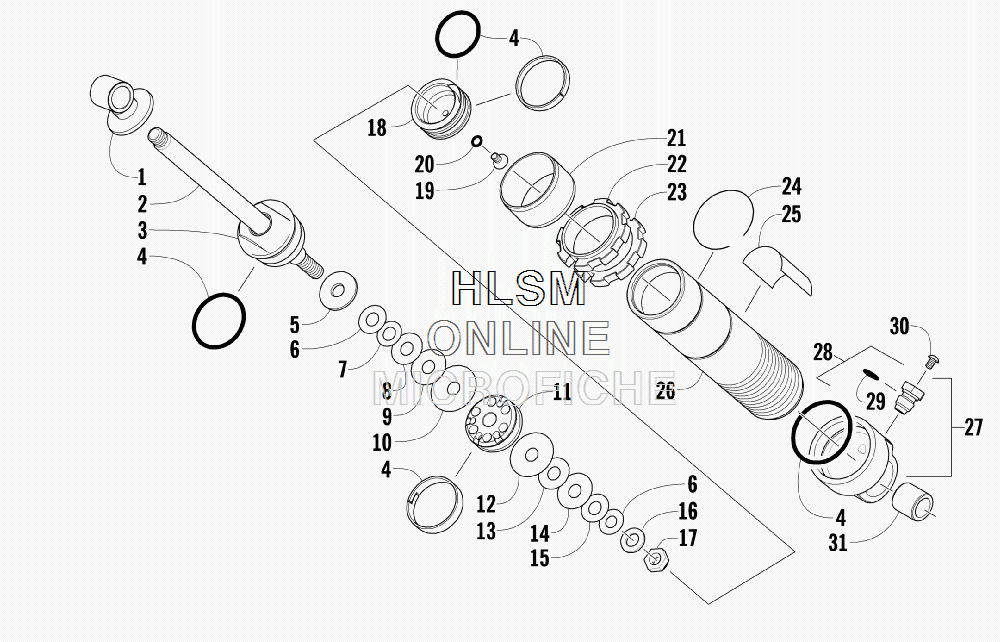

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat CROSSFIRE 600 - 2011 года выпуска`
-
№АртикулНазвание
-
-1704-747 SHOCK, FRT ARM-12.51 (FOX)SHOCK, FRT ARM-12.51 (FOX)
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
23604-411 SHAFT,CHROME STEEL-.498" OD X 6.525" TLGSHAFT,CHROME STEEL-.498" OD X 6.525" TLG
-
32604-812 BEARING, ENDCAP -.498" X .960"-ASSYBEARING, ENDCAP -.498" X .960"-ASSY
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
70603-880 VALVE, 0.900 X 0.012 IN.VALVE, 0.900 X 0.012 IN.
-
80603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
90603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
100603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
112603-309 PISTON, DAMPING-1.459 BORE-.093 ORIFICEPISTON, DAMPING-1.459 BORE-.093 ORIFICE
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
140603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
150603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
160603-389 WASHER, BACKUPWASHER, BACKUP
-
170603-301 NUT, CAP-FOX SHOCKNUT, CAP-FOX SHOCK
-
182604-816 PISTON, FLOATINGPISTON, FLOATING
-
191604-316 SCREW, MACHINE W/O-RING (INC. 20)SCREW, MACHINE W/O-RING (INC. 20)
-
201604-425 ...O-RING (FOX ONLY)...O-RING (FOX ONLY)
-
212603-246 SLEEVE, WEARSLEEVE, WEAR
-
222604-840 NUT, ADJUSTERNUT, ADJUSTER
-
232604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
242603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
252603-475 DECAL, SHOCKDECAL, SHOCK
-
263604-412 BODY, SHOCKBODY, SHOCK
-
272604-817 END CAP, SHOCK (INC. 28-29)END CAP, SHOCK (INC. 28-29)
-
280703-341 ...VALVE, PRESSURE (INC. 29)...VALVE, PRESSURE (INC. 29)
-
291604-318 ......O-RING-END CAP FITTING (FOX ONLY)......O-RING-END CAP FITTING (FOX ONLY)
-
300624-097 SCREW, VALVESCREW, VALVE
-
312604-415 BUSHING, SHOCKBUSHING, SHOCK
-
-5639-240 OIL, SHOCK - 1 QT - NOT ILLUSTRATEDOIL, SHOCK - 1 QT - NOT ILLUSTRATED
