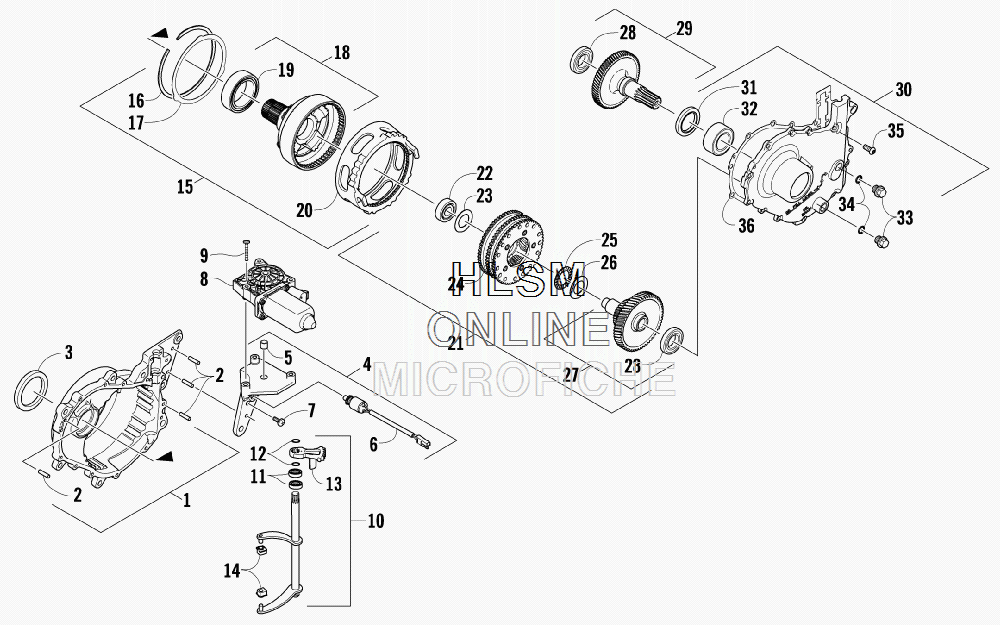

GEARCASE ASSEMBLY для Arctic Cat CROSSFIRE 600 - 2011 года выпуска

№

Артикул

Название
-

1702-170 COMPLETE GEARCASE ASSEMBLY

COMPLETE GEARCASE ASSEMBLY

420 ₽
1

1702-047 HOUSING, GEARCASE (INC. 2-3)

HOUSING, GEARCASE (INC. 2-3)

34 520 ₽
2

1602-915 ...PIN, DOWEL

...PIN, DOWEL

380 ₽
3

2602-172 ...SEAL, OIL-HIGH COMP-50 X 65 X 8MM

...SEAL, OIL-HIGH COMP-50 X 65 X 8MM

4 360 ₽
4

0702-891 BRACKET, MOUNTING - REVERSE ACTUATOR (INC. 5-6)

BRACKET, MOUNTING - REVERSE ACTUATOR (INC. 5-6)

22 250 ₽
5

1602-916 ...BEARING

...BEARING

230 ₽
6

0630-228 ...SWITCH,ALARM-REVERSE

...SWITCH,ALARM-REVERSE

16 220 ₽
7

0423-538 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

110 ₽
8

0630-236 ACTUATOR, REVERSE

ACTUATOR, REVERSE

33 480 ₽
9

8468-536 SCREW, MACHINE

SCREW, MACHINE

270 ₽
10

1702-003 FORK, SHIFT - ASSEMBLY (INC. 11-13)

FORK, SHIFT - ASSEMBLY (INC. 11-13)

18 510 ₽
11

2602-013 ...SEAL, OIL-SHIFT ROD 12X22X7

...SEAL, OIL-SHIFT ROD 12X22X7

610 ₽
12

2602-057 ...RING, RETAINING, EXT-12MM

...RING, RETAINING, EXT-12MM

150 ₽
13

2602-007 ...ARM,SHIFT FORK-11T-REVERSE (LONG)

...ARM,SHIFT FORK-11T-REVERSE (LONG)

13 720 ₽
14

2602-127 BLOCK, SLIDER

BLOCK, SLIDER

650 ₽
15

0702-910 SLIDER ASSEMBLY (INC. 16-20)

SLIDER ASSEMBLY (INC. 16-20)

125 210 ₽
16

2602-040 ...RING, RETAINING-136MM X 1.09MM

...RING, RETAINING-136MM X 1.09MM

2 700 ₽
17

2602-064 ...WASHER, THRUST-LOCK-116 X 131.5 X .9

...WASHER, THRUST-LOCK-116 X 131.5 X .9

2 070 ₽
20

2602-063 ...SLIDER

...SLIDER

41 590 ₽
21

1702-132 GEAR, TRANSFER - 60T/34T - ASSEMBLY (INC. 22-27 AND ONE NO. 28)

GEAR, TRANSFER - 60T/34T - ASSEMBLY (INC. 22-27 AND ONE NO. 28)

130 ₽
22

2602-108 ...BEARING,TRANSFER GEAR-17MM- PEER

...BEARING,TRANSFER GEAR-17MM- PEER

1 240 ₽
23

2602-058 ...WASHER, SPACER

...WASHER, SPACER

420 ₽
24

1702-130 ...GEAR, PLANETARY - ASSEMBLY

...GEAR, PLANETARY - ASSEMBLY

106 490 ₽
25

2602-317 ...BEARING, THRUST 25X42MM (INA)

...BEARING, THRUST 25X42MM (INA)

1 870 ₽
26

2602-316 ...WASHER, THRUST 25X42X1MM (INA)

...WASHER, THRUST 25X42X1MM (INA)

520 ₽
27

1702-133 ...GEAR, TRANSFER (INC. ONE NO. 28)

...GEAR, TRANSFER (INC. ONE NO. 28)

41 590 ₽
28

1602-981 ......BEARING,25MMX47MMX8MM-PEER

......BEARING,25MMX47MMX8MM-PEER

2 700 ₽
29

0702-691 SHAFT, INPUT - 60T (INC. ONE NO. 28)

SHAFT, INPUT - 60T (INC. ONE NO. 28)

25 990 ₽
30

0702-953 COVER, GEARCASE (INC. 31-34)

COVER, GEARCASE (INC. 31-34)

44 920 ₽
31

2602-160 ...SEAL, OIL

...SEAL, OIL

3 530 ₽
32

1602-982 ...BEARING,SHAFT-INPUT-30MM-PEER

...BEARING,SHAFT-INPUT-30MM-PEER

5 190 ₽
33

2602-099 ...PLUG, GEARCASE 12MM

...PLUG, GEARCASE 12MM

2 070 ₽
34

1602-213 ...O-RING

...O-RING

60 ₽
35

1623-683 SCREW, MACHINE

SCREW, MACHINE

190 ₽
36

2602-174 GASKET, GEARCASE

GASKET, GEARCASE

3 530 ₽
-

4639-628 FLUID, GEARCASE - 12 OZ - NOT ILLUSTRATED

FLUID, GEARCASE - 12 OZ - NOT ILLUSTRATED

2 710 ₽
