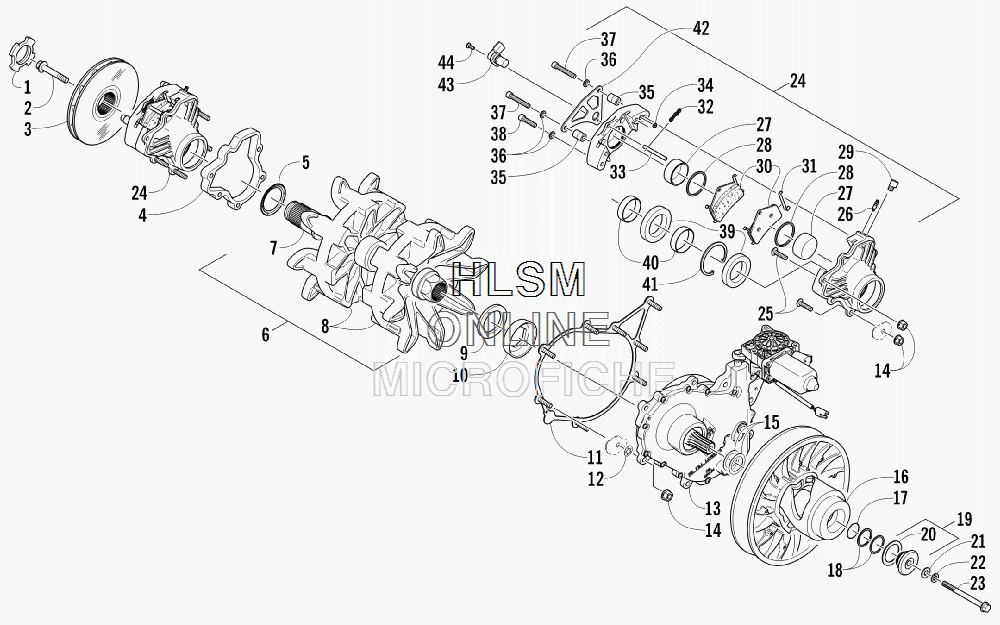

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat CROSSFIRE 600 - 2011 года выпуска`
-
№АртикулНазвание
-
11602-957 NUT, RETAININGNUT, RETAINING
-
21623-461 SCREW, CAPSCREW, CAP
-
31602-656 DISC, BRAKEDISC, BRAKE
-
41602-497 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
52602-076 SHIELD, BEARINGSHIELD, BEARING
-
60728-170 TRACK, DRIVE - ASSEMBLY (INC. 7-8)TRACK, DRIVE - ASSEMBLY (INC. 7-8)
-
70702-880 ...SHAFT,DRIVE W/RETAINER-ASSY...SHAFT,DRIVE W/RETAINER-ASSY
-
81602-592 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
92602-068 SPACERSPACER
-
101602-984 SEALSEAL
-
110702-882 PLATE, MOUNTING - GEARCASEPLATE, MOUNTING - GEARCASE
-
121623-355 NUT, PUSHNUT, PUSH
-
131702-170 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
148047-426 NUT, LOCKNUT, LOCK
-
150648-442 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
150648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
160726-302 CLUTCH, DRIVENCLUTCH, DRIVEN
-
170648-441 O-RINGO-RING
-
180648-714 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
180648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
180648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
191702-114 ADJUSTER, SHEAVE (INC. 20)ADJUSTER, SHEAVE (INC. 20)
-
200648-788 ...WASHER, THRUST...WASHER, THRUST
-
211623-415 WASHER, FLAT-.875X.400X.156 Z & YWASHER, FLAT-.875X.400X.156 Z & Y
-
228051-272 WASHER, SPR LOCK-3/8 .377X.680X.094 Z & YWASHER, SPR LOCK-3/8 .377X.680X.094 Z & Y
-
231623-572 SCREW, CAP-HFH 3/8-16X4.50 GR8-VENTEDSCREW, CAP-HFH 3/8-16X4.50 GR8-VENTED
-
241702-014 CALIPER, BRAKE - ASSEMBLY (INC. 25-41)CALIPER, BRAKE - ASSEMBLY (INC. 25-41)
-
251623-360 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
261602-458 ...FITTING, BLEED...FITTING, BLEED
-
271602-461 ...PISTON...PISTON
-
281602-669 ...O-RING...O-RING
-
290602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
300702-563 ...PAD, BRAKE - SET (INC. 31-32)...PAD, BRAKE - SET (INC. 31-32)
-
311602-466 ......CLIP, ANTI-RATTLE......CLIP, ANTI-RATTLE
-
321602-467 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
331602-464 ...PIN, RETAINING - BRAKE PAD...PIN, RETAINING - BRAKE PAD
-
340602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
352602-132 ...SPACER...SPACER
-
360402-165 ...WASHER...WASHER
-
371602-670 ...BOLT,SHCS 5/16-18 UNC-2A 3.00 LG...BOLT,SHCS 5/16-18 UNC-2A 3.00 LG
-
381602-671 ...BOLT,SHCS 5/16-18 UNC-2A 2.00 LG...BOLT,SHCS 5/16-18 UNC-2A 2.00 LG
-
392602-131 ...BEARING, 45MM X 68MM X 12MM...BEARING, 45MM X 68MM X 12MM
-
401602-463 ...SLEEVE, DRIVESHAFT...SLEEVE, DRIVESHAFT
-
411602-456 ...RING, RETAINING...RING, RETAINING
-
426606-167 PLATE, MOUNTING - SPEEDOMETER SENSORPLATE, MOUNTING - SPEEDOMETER SENSOR
-
430430-091 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
448468-617 SCREW, MACHINESCREW, MACHINE
