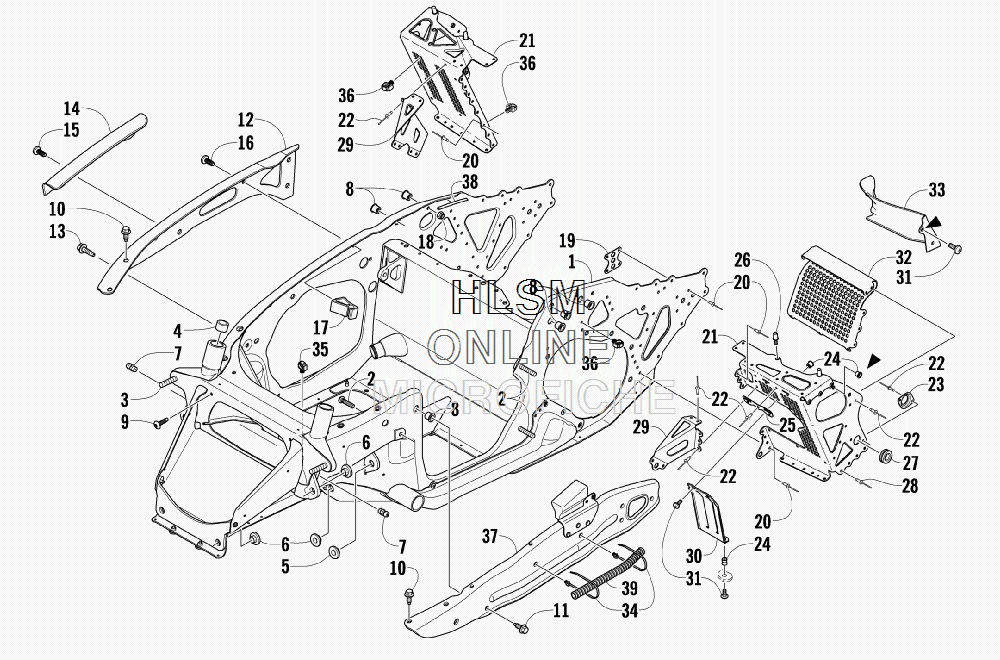

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat CROSSFIRE 600 - 2011 года выпуска`
-
№АртикулНазвание
-
-1707-431 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-178 CHASSIS - ASSEMBLY (INC. 2-8)CHASSIS - ASSEMBLY (INC. 2-8)
-
21623-359 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
31623-019 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
40675-161 ...BEARING-14DU12...BEARING-14DU12
-
50607-656 ...BUSHING, UPPER A-ARM MOUNT...BUSHING, UPPER A-ARM MOUNT
-
60607-657 ...BUSHING, LOWER A-ARM MOUNT...BUSHING, LOWER A-ARM MOUNT
-
71623-010 ...FITTING, GREASE...FITTING, GREASE
-
80623-581 ...INSERT...INSERT
-
91623-022 SCREW, MACHINESCREW, MACHINE
-
101623-480 SCREW, CAPSCREW, CAP
-
111623-481 SCREW, CAPSCREW, CAP
-
126606-068 BRACE, SIDE PLATE - RIGHTBRACE, SIDE PLATE - RIGHT
-
131623-561 SCREW, CAPSCREW, CAP
-
144606-793 PROTECTOR, MAIN HARNESSPROTECTOR, MAIN HARNESS
-
151623-353 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161623-204 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170608-449 GUIDE, ROPEGUIDE, ROPE
-
188041-426 NUT, LOCKNUT, LOCK
-
192706-580 PLATE, BACKINGPLATE, BACKING
-
208060-686 RIVETRIVET
-
214706-034 FOOTREST - RIGHT (INC. 22-24 AND 26)FOOTREST - RIGHT (INC. 22-24 AND 26)
-
214706-035 FOOTREST - LEFT (INC. 22-26)FOOTREST - LEFT (INC. 22-26)
-
228060-484 ...RIVET...RIVET
-
233606-837 ...PLATE, RETAINING...PLATE, RETAINING
-
241623-657 ...INSERT...INSERT
-
250607-835 ...PLATE, MOUNTING - BELT GUARD...PLATE, MOUNTING - BELT GUARD
-
261623-706 ...STUD, CAPTIVE...STUD, CAPTIVE
-
271623-529 GROMMETGROMMET
-
281623-130 RIVETRIVET
-
293606-904 BRACKET, SUPPORT - FOOTREST - RIGHTBRACKET, SUPPORT - FOOTREST - RIGHT
-
294606-353 BRACKET, SUPPORT - FOOTREST - LEFTBRACKET, SUPPORT - FOOTREST - LEFT
-
303706-673 PANEL, CLOSE-OUT - FOOTREST (INC. TWO NO. 24)PANEL, CLOSE-OUT - FOOTREST (INC. TWO NO. 24)
-
311623-498 SCREW, MACHINESCREW, MACHINE
-
324606-742 BRACKET, SUPPORT - FOOTREST - LOWER RIGHTBRACKET, SUPPORT - FOOTREST - LOWER RIGHT
-
324606-743 BRACKET, SUPPORT - FOOTREST - LOWER LEFTBRACKET, SUPPORT - FOOTREST - LOWER LEFT
-
334606-434 COVER, FOOTREST - RIGHTCOVER, FOOTREST - RIGHT
-
334606-435 COVER, FOOTREST - LEFTCOVER, FOOTREST - LEFT
-
340623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
351623-717 CLIP,ROUTING-LOCKING-.472CLIP,ROUTING-LOCKING-.472
-
361623-406 CLIP,ROUTING-LOCKING-.350CLIP,ROUTING-LOCKING-.350
-
373706-921 BRACE, SIDE PLATE - LEFTBRACE, SIDE PLATE - LEFT
-
380706-371 TRIMTRIM
-
391619-350 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
