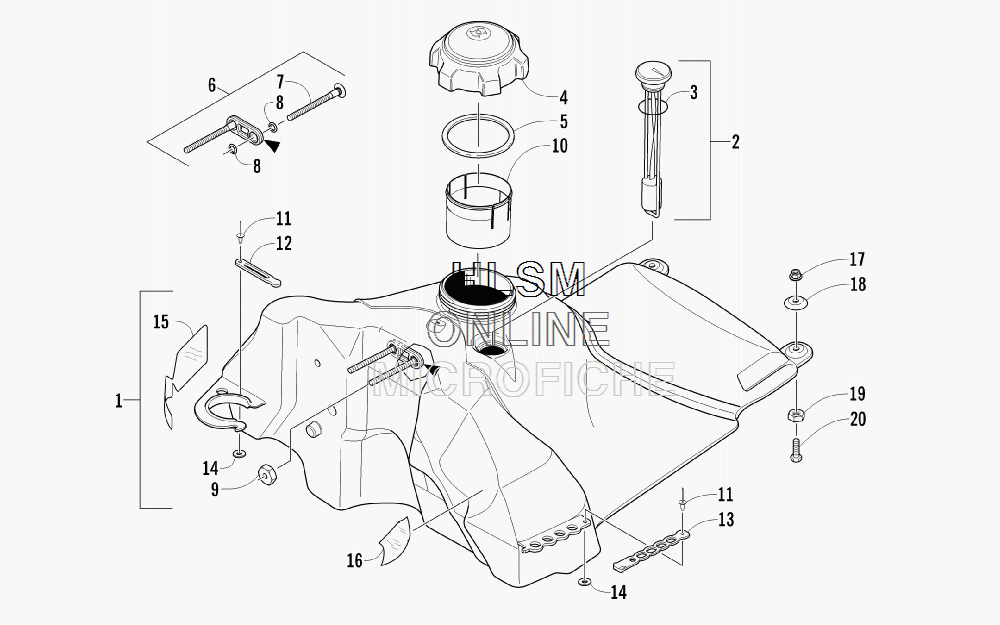

GAS TANK ASSEMBLY для Arctic Cat CROSSFIRE 600 - 2011 года выпуска`
-
№АртикулНазвание
-
10770-810 TANK, GAS (INC. 2-16)TANK, GAS (INC. 2-16)
-
21670-824 ...GAUGE, FUEL W/SEAL (INC. 3)...GAUGE, FUEL W/SEAL (INC. 3)
-
30470-400 ......SEAL, FUEL GAUGE......SEAL, FUEL GAUGE
-
41670-447 ...CAP, GAS TANK (INC. 5)...CAP, GAS TANK (INC. 5)
-
51670-511 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
61705-116 ...PLATE, MOUNTING - STEERING POST (INC. 7 AND TWO NO. 8)...PLATE, MOUNTING - STEERING POST (INC. 7 AND TWO NO. 8)
-
71623-447 ......BOLT, CARRIAGE......BOLT, CARRIAGE
-
81623-448 ......O-RING,3/8 X 9/16 X 3/32-VITON......O-RING,3/8 X 9/16 X 3/32-VITON
-
91623-483 ...NUT, ALUMINUM...NUT, ALUMINUM
-
101670-801 ...NECK, GAS TANK EXTENSION...NECK, GAS TANK EXTENSION
-
118061-630 ...RIVET...RIVET
-
123606-173 ...STRAP, HOLD-DOWN - COOLANT TANK...STRAP, HOLD-DOWN - COOLANT TANK
-
134606-160 ...STRAP, HOLD-DOWN - SPARK PLUG...STRAP, HOLD-DOWN - SPARK PLUG
-
148050-157 ...WASHER...WASHER
-
155606-107 ...FOIL,PROTECTIVE-COOLANT BOTTLE MTG...FOIL,PROTECTIVE-COOLANT BOTTLE MTG
-
165606-049 ...FOIL,PROTECTIVE-GASTANK-LH...FOIL,PROTECTIVE-GASTANK-LH
-
178047-366 NUT, LOCKNUT, LOCK
-
180123-765 WASHER, CUPWASHER, CUP
-
191623-077 NUTNUT
-
201623-889 SCREW, CAPSCREW, CAP
