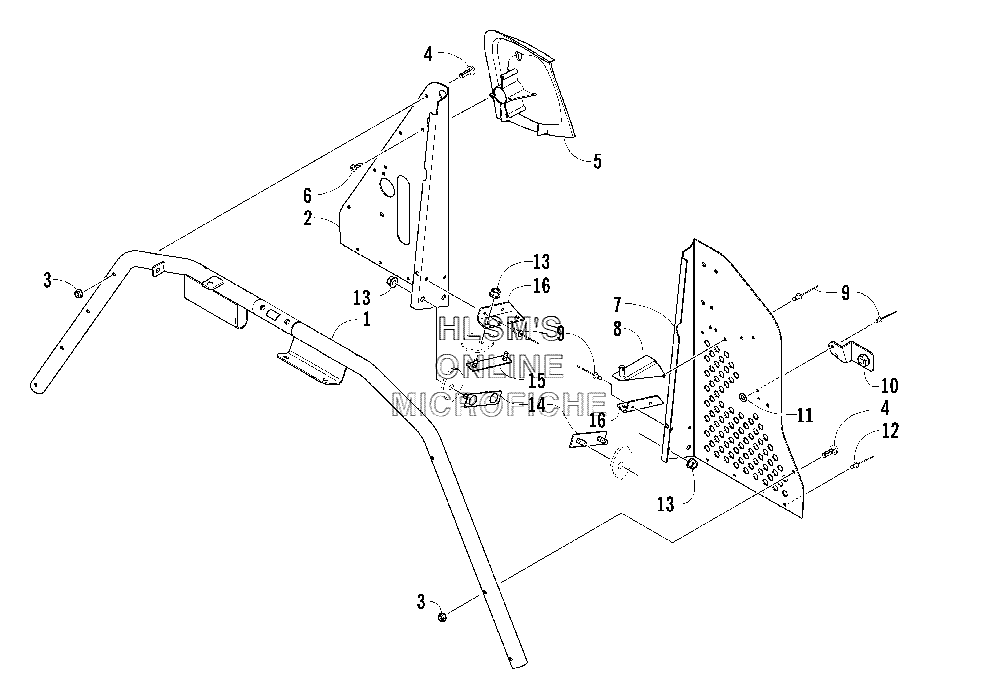

STEERING SUPPORT ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска
-
№АртикулНазвание
-
10705-972 SUPPORT, STEERINGSUPPORT, STEERING
-
22706-276 PLATE, BACKING VENT (RIGHT)PLATE, BACKING VENT (RIGHT)
-
38040-246 NUT, LOCKNUT, LOCK
-
40623-227 SCREW, MACHINESCREW, MACHINE
-
52606-739 PANEL, RECOIL ROPE CUPPANEL, RECOIL ROPE CUP
-
60623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
72706-275 PLATE, BACKING VENT (LEFT)PLATE, BACKING VENT (LEFT)
-
80705-943 BRACKET, BELT GUARDBRACKET, BELT GUARD
-
90623-166 RIVETRIVET
-
102706-274 MOUNT, BELLY PAN/HOOD STRAP HOOK (RIGHT)MOUNT, BELLY PAN/HOOD STRAP HOOK (RIGHT)
-
102706-273 MOUNT, BELLY PAN/HOOD STRAP HOOK (LEFT)MOUNT, BELLY PAN/HOOD STRAP HOOK (LEFT)
-
110123-149 WASHERWASHER
-
128060-504 RIVETRIVET
-
138048-366 NUT, LOCKNUT, LOCK
-
140705-042 PLATE, BACKINGPLATE, BACKING
-
150705-043 PLATE, BACKINGPLATE, BACKING
-
160605-120 BRACE, STEERING SUPPORT (RIGHT)BRACE, STEERING SUPPORT (RIGHT)
-
160605-121 BRACE, STEERING SUPPORT (LEFT)BRACE, STEERING SUPPORT (LEFT)
