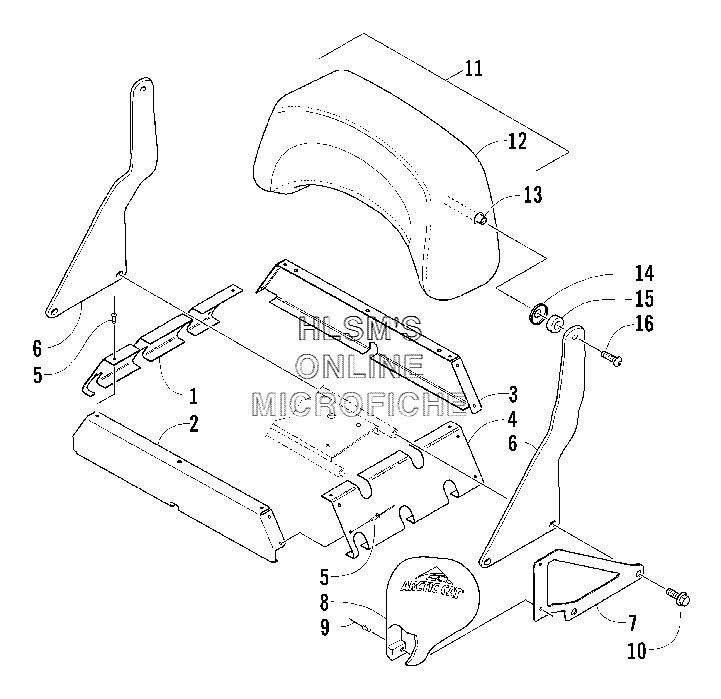

BACKREST ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    2706-286 RISER, SEAT (RIGHT)
    RISER, SEAT (RIGHT)
  • 2
    2706-285 RISER, SEAT (FRONT)
    RISER, SEAT (FRONT)
  • 3
    2706-284 RISER, SEAT (REAR)
    RISER, SEAT (REAR)
  • 4
    2706-287 RISER, SEAT (LEFT)
    RISER, SEAT (LEFT)
  • 5
    8060-704 RIVET
    RIVET
  • 6
    2706-170 BRACKET, BACKREST (RIGHT)
    BRACKET, BACKREST (RIGHT)
  • 6
    2706-171 BRACKET, BACKREST (LEFT)
    BRACKET, BACKREST (LEFT)
  • 7
    2706-214 BRACKET, MOUNTING, WIND DEFLECTOR (RIGHT)
    BRACKET, MOUNTING, WIND DEFLECTOR (RIGHT)
  • 7
    2706-215 BRACKET, MOUNTING, WIND DEFLECTOR (LEFT)
    BRACKET, MOUNTING, WIND DEFLECTOR (LEFT)
  • 8
    1606-238 DEFLECTOR, WIND (RIGHT)
    DEFLECTOR, WIND (RIGHT)
  • 8
    1606-239 DEFLECTOR, WIND (LEFT)
    DEFLECTOR, WIND (LEFT)
  • 9
    8061-706 RIVET
    RIVET
  • 10
    8020-220 SCREW, CAP
    SCREW, CAP
  • 11
    2706-497 BACKREST (INC. 12, 13)
    BACKREST (INC. 12, 13)
  • 12
    2706-498 COVER, BACKREST
    COVER, BACKREST
  • 13
    0114-163 AXLE
    AXLE
  • 14
    0723-003 WASHER, CUP
    WASHER, CUP
  • 15
    0616-547 BLOCK, TENSION, BACKREST
    BLOCK, TENSION, BACKREST
  • 16
    0623-566 SCREW, MACHINE
    SCREW, MACHINE
