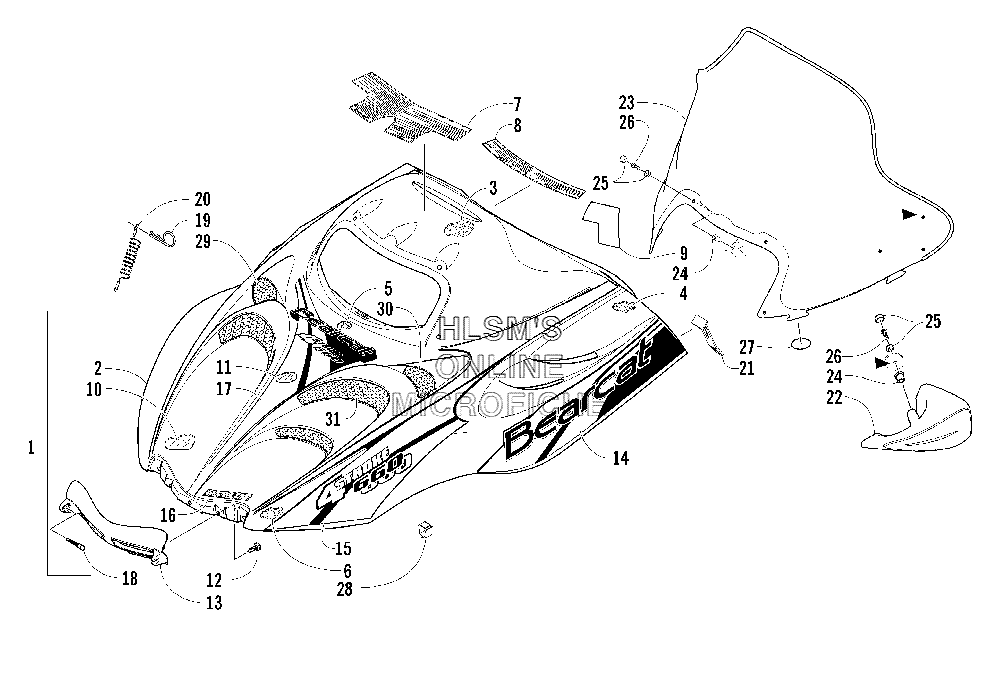

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-457 HOOD W/DECALS (INC. 2, 17)
    HOOD W/DECALS (INC. 2, 17)
  • 2
    1718-201 HOOD W/O DECALS (INC. 3, 13)
    HOOD W/O DECALS (INC. 3, 13)
  • 3
    0717-166 FOAM, HOOD (UPPER/MIDDLE/RIGHT)
    FOAM, HOOD (UPPER/MIDDLE/RIGHT)
  • 4
    0717-140 FOAM, HOOD (REAR/RIGHT)
    FOAM, HOOD (REAR/RIGHT)
  • 4
    0717-141 FOAM, HOOD (REAR/LEFT)
    FOAM, HOOD (REAR/LEFT)
  • 5
    0717-138 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 6
    0717-146 FOAM, HOOD (FRONT/RIGHT)
    FOAM, HOOD (FRONT/RIGHT)
  • 6
    0717-147 FOAM, HOOD (FRONT/LEFT)
    FOAM, HOOD (FRONT/LEFT)
  • 7
    3611-485 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 8
    3611-970 DECAL, CAUTION, ENGINE/BATTERY/FUEL
    DECAL, CAUTION, ENGINE/BATTERY/FUEL
  • 9
    3611-580 DECAL, REVERSE
    DECAL, REVERSE
  • 10
    1606-938 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 10
    1606-939 FOIL, HOOD (LEFT)
    FOIL, HOOD (LEFT)
  • 11
    2606-935 FOIL, HOOD
    FOIL, HOOD
  • 12
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    1606-720 HINGE, HOOD
    HINGE, HOOD
  • 14
    5611-402 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 14
    5611-403 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 15
    5611-400 DECAL, HOOD (UPPER/RIGHT)
    DECAL, HOOD (UPPER/RIGHT)
  • 15
    5611-401 DECAL, HOOD (UPPER/LEFT)
    DECAL, HOOD (UPPER/LEFT)
  • 16
    5611-409 DECAL, "ARCTIC CAT", HOOD
    DECAL, "ARCTIC CAT", HOOD
  • 17
    5611-408 DECAL, HOOD, CREST
    DECAL, HOOD, CREST
  • 18
    1623-016 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 20
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 21
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 22
    2639-477 MIRROR, KIT (INC. SIX NO. 24, 26)
    MIRROR, KIT (INC. SIX NO. 24, 26)
  • 23
    2606-753 WINDSHIELD
    WINDSHIELD
  • 24
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 25
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 26
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    0616-032 O-RING
    O-RING
  • 28
    0123-394 CLIP, RETAINING
    CLIP, RETAINING
  • 29
    2606-890 SCREEN, HOOD (RIGHT)
    SCREEN, HOOD (RIGHT)
  • 30
    2606-891 SCREEN, HOOD (UPPER/LEFT)
    SCREEN, HOOD (UPPER/LEFT)
  • 31
    2606-889 SCREEN, HOOD (LEFT)
    SCREEN, HOOD (LEFT)
