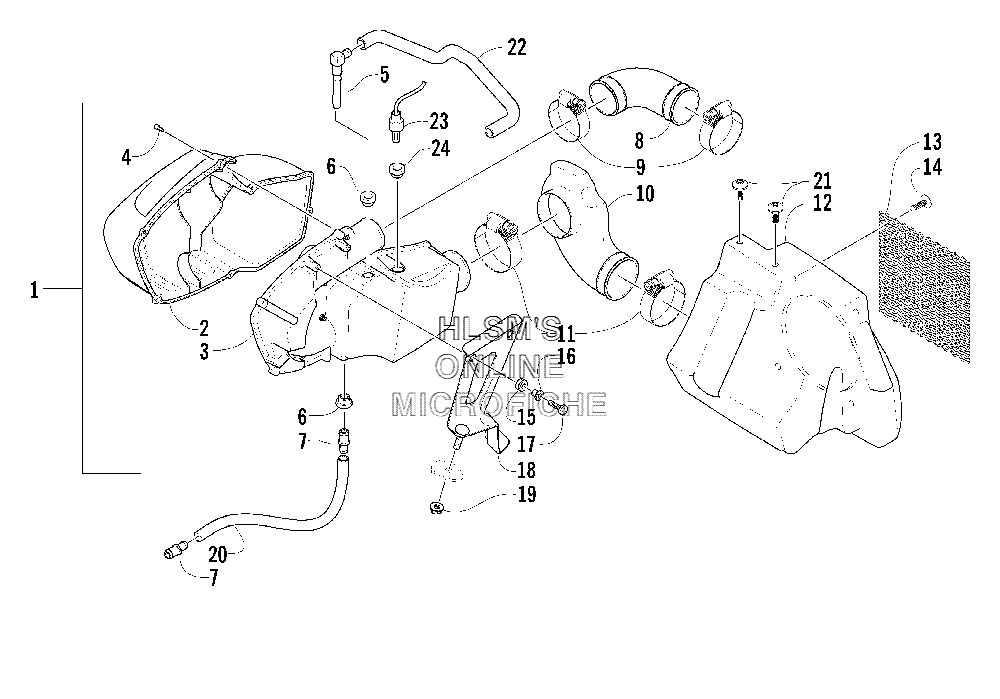

AIR SILENCER ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-605 SILENCER, AIR, ASSY (INC. 2, 6 AND ONE NO. 7)
    SILENCER, AIR, ASSY (INC. 2, 6 AND ONE NO. 7)
  • 2
    1670-434 COVER (OUTER)
    COVER (OUTER)
  • 3
    0770-621 COVER (INNER)
    COVER (INNER)
  • 4
    8019-397 SCREW, CAP
    SCREW, CAP
  • 5
    1670-515 FITTING, ELBOW
    FITTING, ELBOW
  • 6
    1670-507 GROMMET
    GROMMET
  • 7
    1670-516 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 8
    0610-491 TUBE (OUTLET)
    TUBE (OUTLET)
  • 9
    0214-027 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    1670-483 TUBE (INLET)
    TUBE (INLET)
  • 11
    0214-032 CLAMP, TUBE
    CLAMP, TUBE
  • 12
    1670-466 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 13
    1670-468 SCREEN, PLENUM
    SCREEN, PLENUM
  • 14
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 15
    1670-545 ISOLATOR, RUBBER
    ISOLATOR, RUBBER
  • 16
    0607-737 BUSHING
    BUSHING
  • 17
    1623-135 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 18
    0707-737 BRACKET, MOUNTING, AIR SILENCER
    BRACKET, MOUNTING, AIR SILENCER
  • 19
    8048-486 NUT, LOCK
    NUT, LOCK
  • 20
    0610-529 HOSE, DRAIN
    HOSE, DRAIN
  • 21
    8017-579 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    0610-489 HOSE, BREATHER
    HOSE, BREATHER
  • 23
    3006-656 SENSOR, AIR TEMPERATURE
    SENSOR, AIR TEMPERATURE
  • 24
    3006-657 GROMMET
    GROMMET
