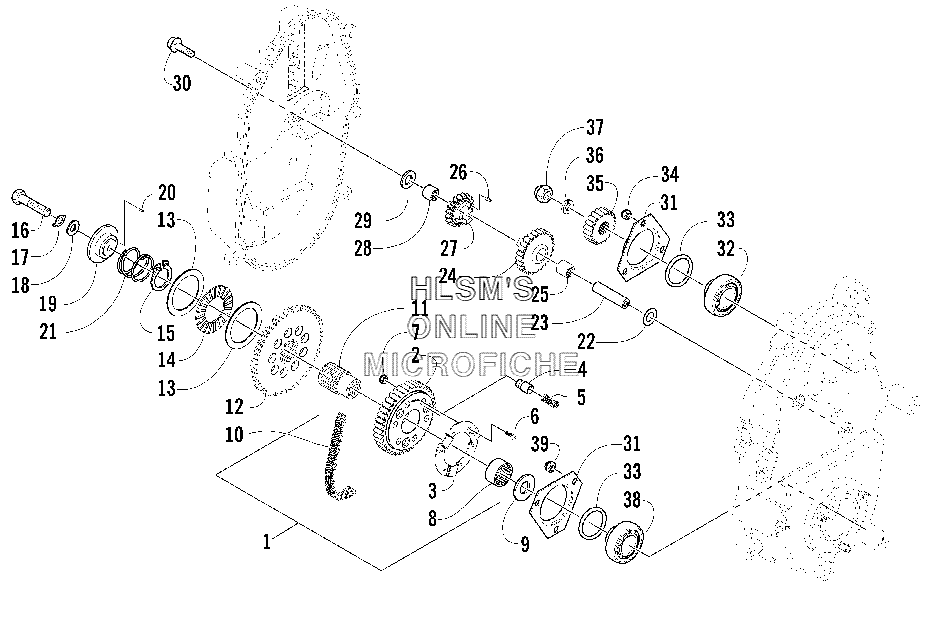

DRIVE/REVERSE DROPCASE ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска`
-
№АртикулНазвание
-
10702-394 SPROCKET ASSY (40 TEETH) (15 WIDE) (INC. 2, 8)SPROCKET ASSY (40 TEETH) (15 WIDE) (INC. 2, 8)
-
10702-383 SPROCKET ASSEMBLY (44 TEETH) (15 WIDE) (INC. 2, 8) (OVER 5, 000 FT ALT.)SPROCKET ASSEMBLY (44 TEETH) (15 WIDE) (INC. 2, 8) (OVER 5, 000 FT ALT.)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
100602-968 CHAIN, 70P (15 WIDE)CHAIN, 70P (15 WIDE)
-
100602-972 CHAIN, 72P (15 WIDE) (OVER 5, 000 FT ALT.)CHAIN, 72P (15 WIDE) (OVER 5, 000 FT ALT.)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
168002-231 SCREW, CAPSCREW, CAP
-
171602-046 WASHER, TAB LOCKWASHER, TAB LOCK
-
188050-272 WASHERWASHER
-
190702-372 RETAINER, SHAFT (INC. 20)RETAINER, SHAFT (INC. 20)
-
208070-153 PIN, SPRINGPIN, SPRING
-
210602-028 SPRING, RETURNSPRING, RETURN
-
220602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
230602-094 SHAFT, REVERSESHAFT, REVERSE
-
240702-260 IDLER, REVERSE, ASSY (24 TEETH) (INC. 25)IDLER, REVERSE, ASSY (24 TEETH) (INC. 25)
-
250602-018 BEARINGBEARING
-
260602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
270702-366 IDLER, REVERSE, ASSY (19 TEETH) (INC. 28)IDLER, REVERSE, ASSY (19 TEETH) (INC. 28)
-
281602-045 BEARINGBEARING
-
291602-044 WASHER, THRUSTWASHER, THRUST
-
308020-130 SCREW, CAPSCREW, CAP
-
311602-521 PLATE, FLANGEPLATE, FLANGE
-
321602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
330107-003 O-RINGO-RING
-
348041-426 NUT, LOCKNUT, LOCK
-
350602-995 SPROCKET (18 TEETH) (15 WIDE)SPROCKET (18 TEETH) (15 WIDE)
-
360623-231 WASHER, SPRINGWASHER, SPRING
-
370623-465 NUT, LOCKNUT, LOCK
-
381602-051 BEARING, 1 IN.BEARING, 1 IN.
-
398040-426 NUT, LOCKNUT, LOCK
