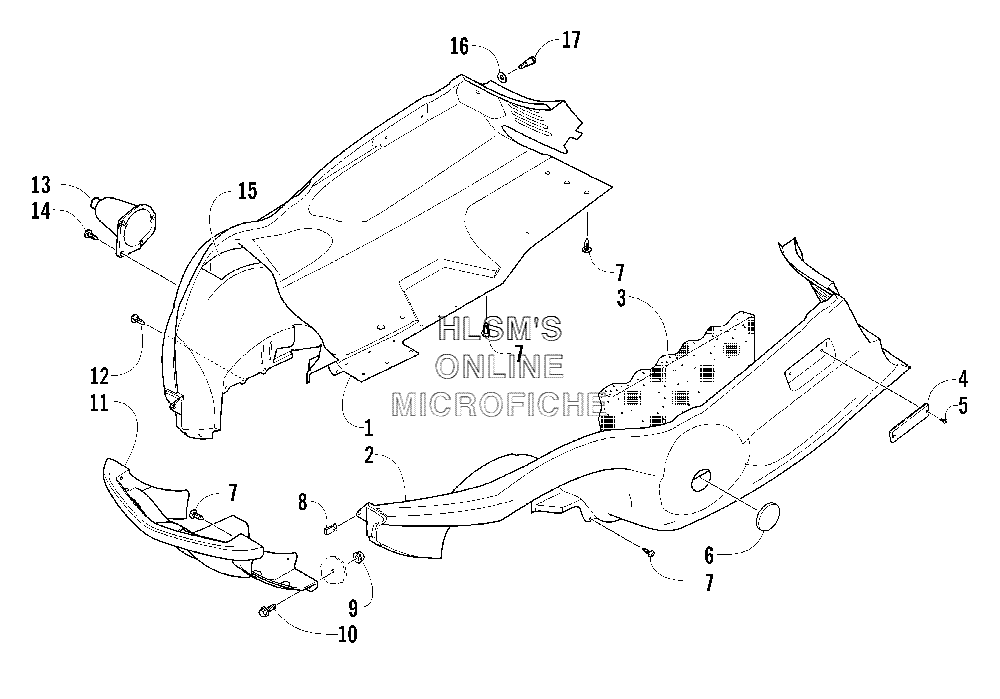

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска`
-
№АртикулНазвание
-
12606-540 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
23606-225 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
50623-269 CLIP, RETAININGCLIP, RETAINING
-
60623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
70623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-427 NUT, UNUT, U
-
98048-366 NUT, LOCKNUT, LOCK
-
108020-040 SCREW, CAPSCREW, CAP
-
111606-721 BUMPER (FRONT)BUMPER (FRONT)
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
130605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
140623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
150619-206 TAPE, FOILTAPE, FOIL
-
168050-217 WASHERWASHER
-
170623-855 SCREW, SHOULDERSCREW, SHOULDER
