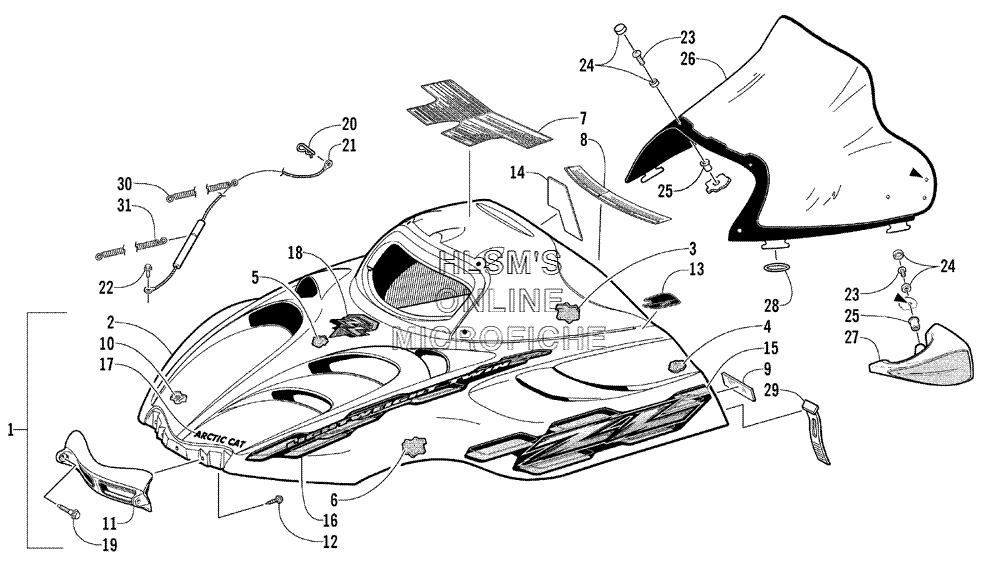

HOOD AND WINDSHIELD ASSY. для Arctic Cat ZL 550 (ESR) - 2002 года выпуска
-
№АртикулНазвание
-
11718-025 HOOD W/DECALS (SILVER) (INC. 2, 18) (ESR)HOOD W/DECALS (SILVER) (INC. 2, 18) (ESR)
-
21718-092 HOOD W/O DECALS (SILVER/INC. 3, 14) (ESR)HOOD W/O DECALS (SILVER/INC. 3, 14) (ESR)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40617-323 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
60617-327 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
134611-334 DECAL, "ACT", HOOD (RIGHT)DECAL, "ACT", HOOD (RIGHT)
-
134611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
-
143611-580 DECAL REVERSE (ESR)DECAL REVERSE (ESR)
-
154611-174 DECAL, HOOD (LOWER) (RIGHT) (ESR)DECAL, HOOD (LOWER) (RIGHT) (ESR)
-
154611-175 DECAL, HOOD (LOWER) (LEFT) (ESR)DECAL, HOOD (LOWER) (LEFT) (ESR)
-
164611-182 DECAL, HOOD (UPPER) (RIGHT) (ESR)DECAL, HOOD (UPPER) (RIGHT) (ESR)
-
164611-183 DECAL, HOOD (UPPER) (LEFT) (ESR)DECAL, HOOD (UPPER) (LEFT) (ESR)
-
173611-187 DECAL, "ARCTIC CAT", HOOD (ESR)DECAL, "ARCTIC CAT", HOOD (ESR)
-
184611-389 DECAL, HOOD, CREST (ESR)DECAL, HOOD, CREST (ESR)
-
190623-690 SCREW, MACHINESCREW, MACHINE
-
200623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
212606-226 CABLE, HOODCABLE, HOOD
-
220623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230623-902 SCREW, MACHINE (ESR)SCREW, MACHINE (ESR)
-
240124-054 SNAP CAP W/WASHER (ESR)SNAP CAP W/WASHER (ESR)
-
250623-845 NUT, EXPANSION (ESR)NUT, EXPANSION (ESR)
-
262606-366 WINDSHIELD (ESR)WINDSHIELD (ESR)
-
272639-477 MIRROR, KIT (INC. THREE NO. 23, 25)MIRROR, KIT (INC. THREE NO. 23, 25)
-
280616-032 O-RINGO-RING
-
291606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
300123-510 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
310623-199 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
