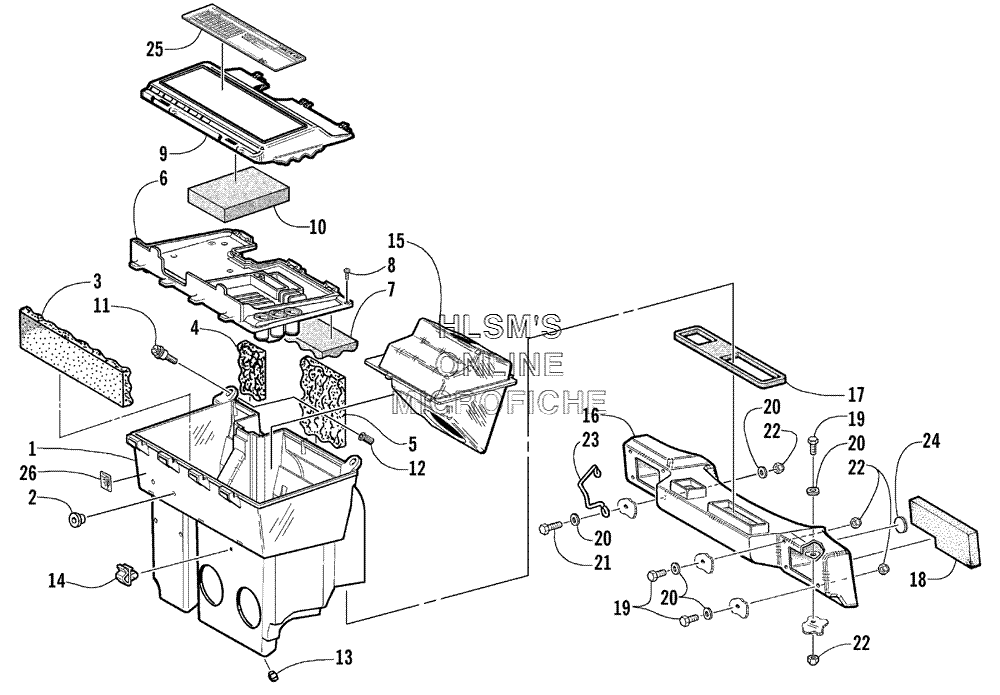

AIR SILENCER ASSY. для Arctic Cat ZL 550 (ESR) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-511 SILENCER, AIR, ASSY. (INC. 2)
    SILENCER, AIR, ASSY. (INC. 2)
  • 2
    0623-627 INSERT, THREADED
    INSERT, THREADED
  • 3
    0617-254 FOAM, AIR SILENCER (FRONT)
    FOAM, AIR SILENCER (FRONT)
  • 4
    0617-252 FOAM, AIR SILENCER, BACK MAGNETO
    FOAM, AIR SILENCER, BACK MAGNETO
  • 5
    0617-253 FOAM, AIR SILENCER, BACK PTO
    FOAM, AIR SILENCER, BACK PTO
  • 6
    1670-197 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 7
    0617-393 FOAM, AIR SILENCER, COVER
    FOAM, AIR SILENCER, COVER
  • 8
    0623-882 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 10
    0617-411 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 11
    0623-780 SCREW, MACHINE, HEX SHOULDER
    SCREW, MACHINE, HEX SHOULDER
  • 12
    0623-779 INSERT
    INSERT
  • 13
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 14
    0623-403 CLAMP, PUSH MOUNT
    CLAMP, PUSH MOUNT
  • 15
    1670-062 RESONATOR, Q, WAVE
    RESONATOR, Q, WAVE
  • 16
    1670-076 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 17
    0617-245 SEAL, AIR SILENCER/PLENUM
    SEAL, AIR SILENCER/PLENUM
  • 18
    0617-270 FOAM, PLENUM, INTAKE
    FOAM, PLENUM, INTAKE
  • 19
    8002-040 SCREW, CAP
    SCREW, CAP
  • 20
    8050-222 WASHER
    WASHER
  • 21
    8002-042 SCREW, CAP
    SCREW, CAP
  • 22
    8040-366 NUT, LOCK
    NUT, LOCK
  • 23
    0607-669 BRACKET, GUIDE, HARNESS/ROPE
    BRACKET, GUIDE, HARNESS/ROPE
  • 24
    0623-078 DISC, VELCRO
    DISC, VELCRO
  • 25
    4611-133 DECAL, JET CHART
    DECAL, JET CHART
  • 26
    4611-029 DECAL, FUEL SHUT, OFF VALVE
    DECAL, FUEL SHUT, OFF VALVE
