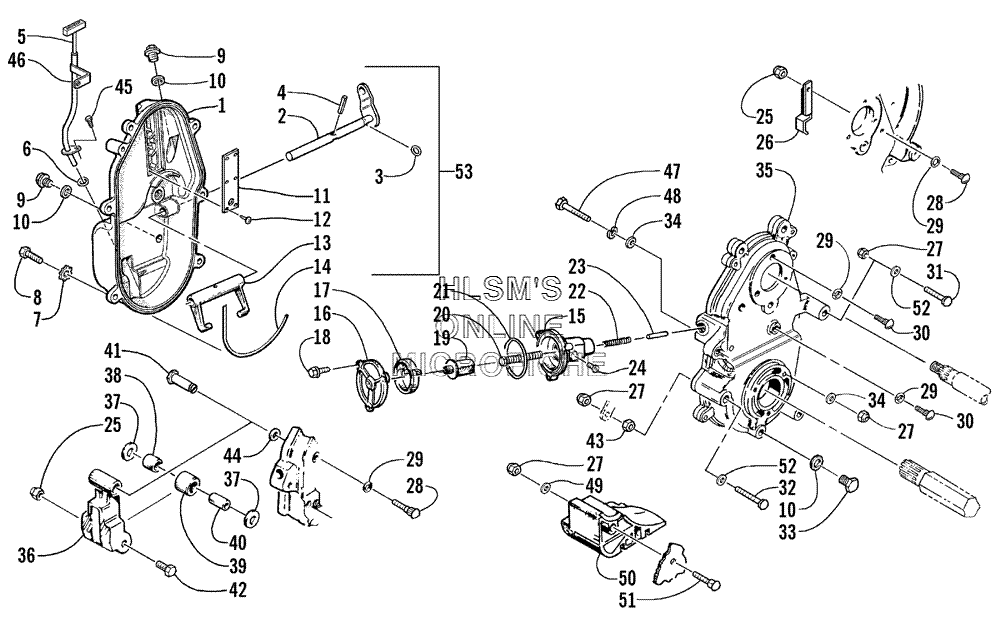

DROPCASE AND CHAIN TENSION ASSY. (ESR) для Arctic Cat ZL 550 (ESR) - 2002 года выпуска`
-
№АртикулНазвание
-
11602-222 COVER, DROPCASECOVER, DROPCASE
-
20702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
30602-021 SEAL, O-RINGSEAL, O-RING
-
40623-542 PIN, SPRINGPIN, SPRING
-
51602-107 STICK, OIL LEVELSTICK, OIL LEVEL
-
60605-014 O, O-RINGIL LEVEL STICK TUBEO, O-RINGIL LEVEL STICK TUBE
-
78053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
88002-134 SCREW, CAPSCREW, CAP
-
90623-293 PLUG, DRAINPLUG, DRAIN
-
101602-213 O-RINGO-RING
-
111602-151 COVER, OIL VENTCOVER, OIL VENT
-
120623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130602-085 FORK, SHIFTFORK, SHIFT
-
140602-437 SEAL, DROPCASESEAL, DROPCASE
-
150602-746 HOUSING, SCREW, CHAIN ADJUSTERHOUSING, SCREW, CHAIN ADJUSTER
-
160602-645 COVER, ADJUSTER HOUSINGCOVER, ADJUSTER HOUSING
-
170602-803 SPRING, POWER, ADJUSTER SHAFTSPRING, POWER, ADJUSTER SHAFT
-
180623-526 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190602-870 SHAFT, CHAIN ADJUSTERSHAFT, CHAIN ADJUSTER
-
200602-748 SCREW, CHAIN ADJUSTERSCREW, CHAIN ADJUSTER
-
210602-801 O-RING, COVER, CHAIN ADJUSTERO-RING, COVER, CHAIN ADJUSTER
-
220602-901 SPRING, COMPRESSIONSPRING, COMPRESSION
-
230602-804 RIVET, BUTTON HEADRIVET, BUTTON HEAD
-
240623-541 SCREW, MACHINESCREW, MACHINE
-
250623-122 NUT, LOCKNUT, LOCK
-
260602-466 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
278040-426 NUT, LOCKNUT, LOCK
-
280623-117 BOLT, RIBBEDBOLT, RIBBED
-
290607-025 O-RING, STUDO-RING, STUD
-
300123-523 BOLT, RIBBEDBOLT, RIBBED
-
318011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
328011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
330602-479 PLUG, DRAINPLUG, DRAIN
-
348050-247 WASHERWASHER
-
350702-417 DROPCASE W/STUDSDROPCASE W/STUDS
-
360602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
370623-525 WASHERWASHER
-
380602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
390702-129 ROLLER, CHAIN TIGHTENER (INC. 38)ROLLER, CHAIN TIGHTENER (INC. 38)
-
400602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
-
410602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
428002-045 SCREW, CAPSCREW, CAP
-
438042-426 NUTNUT
-
448050-222 WASHERWASHER
-
450623-914 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
461602-106 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
478002-136 SCREW, CAPSCREW, CAP
-
488051-242 WASHER, LOCKWASHER, LOCK
-
498050-242 WASHERWASHER
-
500616-964 GUARD, DROPCASEGUARD, DROPCASE
-
518011-137 BOLT, CARRIAGEBOLT, CARRIAGE
-
528050-252 WASHERWASHER
-
537996-260 COVER, DROPCASE, ASSY. (INC. 1, 4 AND 11, 13)COVER, DROPCASE, ASSY. (INC. 1, 4 AND 11, 13)
