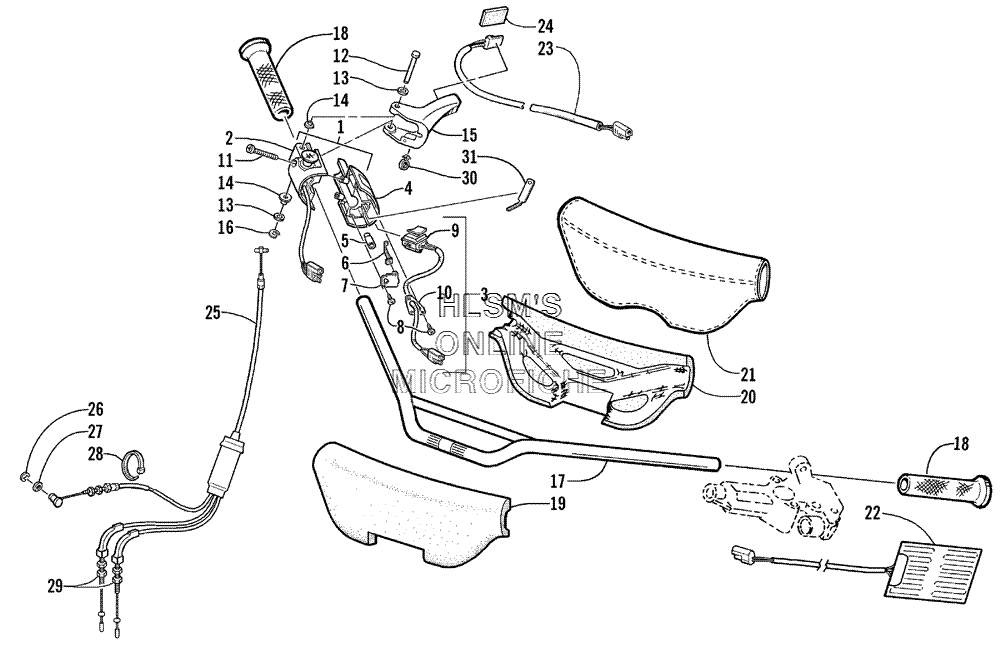

HANDLEBAR AND CONTROLS для Arctic Cat ZL 550 (ESR) - 2002 года выпуска`
-
№АртикулНазвание
-
10609-482 CONTROL, THROTTLE (HIGH/LOW/INC. 2, 11)CONTROL, THROTTLE (HIGH/LOW/INC. 2, 11)
-
20609-493 CONTROL, THROTTLE, STOP SWITCH HALFCONTROL, THROTTLE, STOP SWITCH HALF
-
30609-500 CONTROL, THROTTLE, THUMBWARMER ASSY. (HIGH/LOW/INC. 4, 10 AND TWO NO. 8)CONTROL, THROTTLE, THUMBWARMER ASSY. (HIGH/LOW/INC. 4, 10 AND TWO NO. 8)
-
40609-495 CONTROL, THROTTLE, THUMBWARMER HALF (HIGH/LOW) W/O COMPONENTSCONTROL, THROTTLE, THUMBWARMER HALF (HIGH/LOW) W/O COMPONENTS
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING, THROTTLE CABLECLIP, RETAINING, THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90609-382 SWITCH, THUMBWARMER ASSY. (HIGH/LOW) (INC. THREE NO. 8 AND 10)SWITCH, THUMBWARMER ASSY. (HIGH/LOW) (INC. THREE NO. 8 AND 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER, THROTTLEWASHER, SHOULDER, THROTTLE
-
150609-324 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-360 HANDLEBARHANDLEBAR
-
182606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
190605-354 PAD, HANDLEBAR (FRONT)PAD, HANDLEBAR (FRONT)
-
200605-353 PAD, HANDLEBAR (REAR)PAD, HANDLEBAR (REAR)
-
210705-285 WRAP, HANDLEBAR PADWRAP, HANDLEBAR PAD
-
220609-375 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
230609-373 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240617-248 PAD, INSULATORPAD, INSULATOR
-
250687-060 CABLE, THROTTLECABLE, THROTTLE
-
260124-057 E, RINGE, RING
-
270124-056 WASHERWASHER
-
280123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
290623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
300623-262 CLIP, WIRECLIP, WIRE
-
311639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
