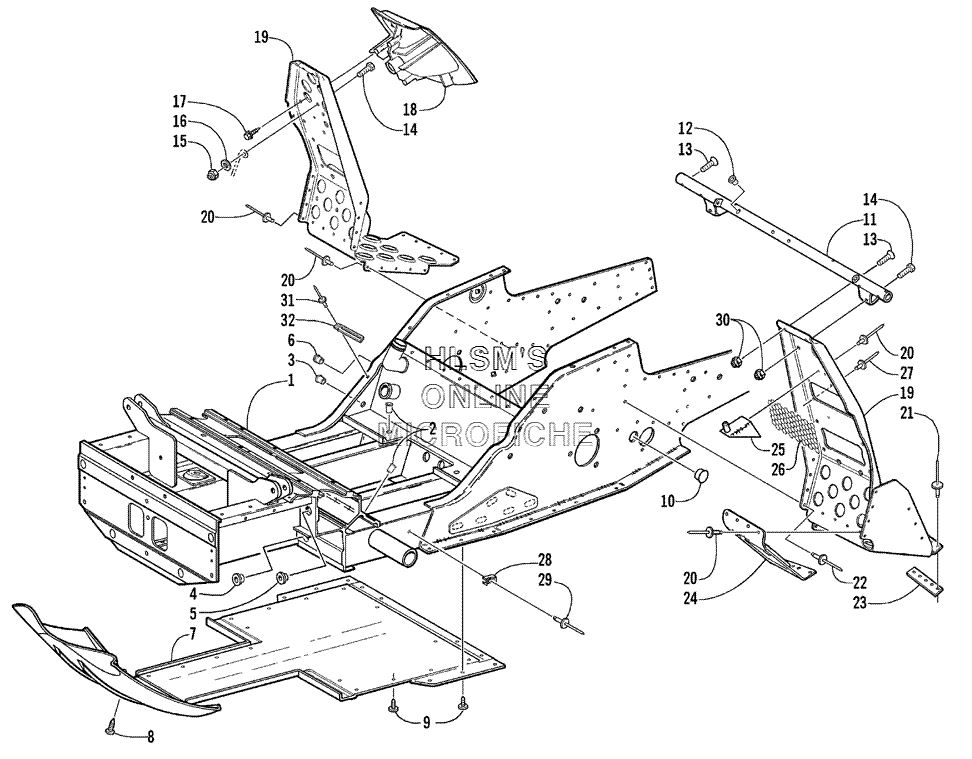

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat ZL 550 (ESR) - 2002 года выпуска`
-
№АртикулНазвание
-
10707-617 CHASSIS ASSY. (INC. 2, 6)CHASSIS ASSY. (INC. 2, 6)
-
20623-699 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
50607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
60623-581 INSERTINSERT
-
71606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
80623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101606-079 PLUG, HOLEPLUG, HOLE
-
110705-426 SUPPORT, STEERING (INC. 12)SUPPORT, STEERING (INC. 12)
-
120623-779 INSERTINSERT
-
138019-614 SCREW, MACHINESCREW, MACHINE
-
148002-041 SCREW, CAPSCREW, CAP
-
158040-366 NUT, LOCKNUT, LOCK
-
168050-212 WASHERWASHER
-
170623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
181706-099 CUP, RECOIL ROPE (ESR)CUP, RECOIL ROPE (ESR)
-
191706-884 FOOTREST (RIGHT) (BLACK)FOOTREST (RIGHT) (BLACK)
-
191706-885 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
200623-166 RIVETRIVET
-
210623-282 RIVETRIVET
-
220623-341 RIVETRIVET
-
230616-701 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
241706-886 PLATE, BACKING (RIGHT) (BLACK)PLATE, BACKING (RIGHT) (BLACK)
-
241706-887 PLATE, BACKING (LEFT) (BLACK)PLATE, BACKING (LEFT) (BLACK)
-
250705-173 BRACKET, MOUNTING, GUARDBRACKET, MOUNTING, GUARD
-
261606-912 SCREEN, GUARDSCREEN, GUARD
-
278060-704 RIVETRIVET
-
280623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
298060-428 RIVETRIVET
-
308041-366 NUT, LOCKNUT, LOCK
-
318060-506 RIVETRIVET
-
323002-964 CLAMP, WIRECLAMP, WIRE
