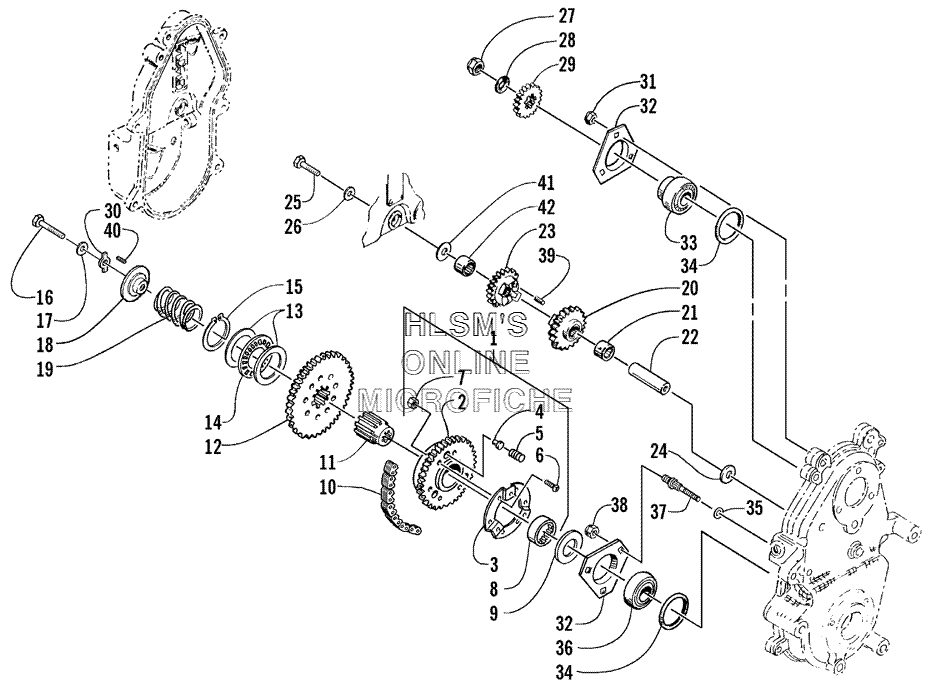

DRIVE/REVERSE DROPCASE ASSY. (ESR) для Arctic Cat ZL 550 (ESR) - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    1639-923 REVERSE OPTIONAL KIT, LOW ALT.
    REVERSE OPTIONAL KIT, LOW ALT.
  • -
    1639-924 REVERSE OPTIONAL KIT, HIGH ALT.
    REVERSE OPTIONAL KIT, HIGH ALT.
  • 1
    0702-170 SPROCKET ASSY. 39T (INC. 2, 8)
    SPROCKET ASSY. 39T (INC. 2, 8)
  • 3
    0602-144 RETAINER, SPRING
    RETAINER, SPRING
  • 4
    0602-133 PIN, SLIP
    PIN, SLIP
  • 5
    0602-138 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 6
    0623-182 SCREW, CAP
    SCREW, CAP
  • 7
    0123-430 NUT, LOCK
    NUT, LOCK
  • 8
    0602-016 BEARING
    BEARING
  • 9
    0602-012 SPACER, SHAFT
    SPACER, SHAFT
  • 10
    1602-041 CHAIN 70P
    CHAIN 70P
  • 11
    1602-048 EXTENSION, DRIVESHAFT
    EXTENSION, DRIVESHAFT
  • 12
    0702-048 GEAR, REVERSE 55T (INC. 13, 15)
    GEAR, REVERSE 55T (INC. 13, 15)
  • 13
    0602-023 WASHER, THRUST
    WASHER, THRUST
  • 14
    0602-022 BEARING, THRUST
    BEARING, THRUST
  • 15
    0602-024 RING, RETAINING
    RING, RETAINING
  • 16
    8002-231 SCREW, CAP
    SCREW, CAP
  • 17
    8050-272 WASHER
    WASHER
  • 18
    0702-372 RETAINER, SHAFT (INC. 43)
    RETAINER, SHAFT (INC. 43)
  • 19
    0602-028 SPRING, RETURN
    SPRING, RETURN
  • 20
    0702-260 IDLER, REVERSE, ASSY. 24T (INC. 21)
    IDLER, REVERSE, ASSY. 24T (INC. 21)
  • 21
    0602-018 BEARING
    BEARING
  • 22
    0602-094 SHAFT, REVERSE
    SHAFT, REVERSE
  • 23
    0702-366 IDLER, REVERSE, ASSY. 19T (INC. 42)
    IDLER, REVERSE, ASSY. 19T (INC. 42)
  • 24
    0602-215 SPACER, REVERSE IDLER
    SPACER, REVERSE IDLER
  • 25
    8002-130 SCREW, CAP
    SCREW, CAP
  • 26
    8050-242 WASHER
    WASHER
  • 27
    0623-465 NUT, LOCK
    NUT, LOCK
  • 28
    0623-231 WASHER, SPRING
    WASHER, SPRING
  • 29
    0602-444 SPROCKET (19 TEETH)
    SPROCKET (19 TEETH)
  • 30
    1602-046 WASHER, TAB LOCK
    WASHER, TAB LOCK
  • 31
    8041-426 NUT, LOCK
    NUT, LOCK
  • 32
    0602-198 PLATE, FLANGE
    PLATE, FLANGE
  • 33
    1602-052 BEARING, 7/8 IN.
    BEARING, 7/8 IN.
  • 34
    0107-003 SEAL, O-RING
    SEAL, O-RING
  • 35
    0607-025 O-RING, STUD
    O-RING, STUD
  • 36
    1602-051 BEARING, 1 IN.
    BEARING, 1 IN.
  • 37
    0623-317 STUD, RIBBED
    STUD, RIBBED
  • 38
    8040-426 NUT, LOCK
    NUT, LOCK
  • 39
    0602-366 ALIGNER, IDLER, PIN
    ALIGNER, IDLER, PIN
  • 40
    8070-153 PIN, SPRING
    PIN, SPRING
  • 41
    1602-044 WASHER, THRUST
    WASHER, THRUST
  • 42
    1602-045 BEARING
    BEARING
