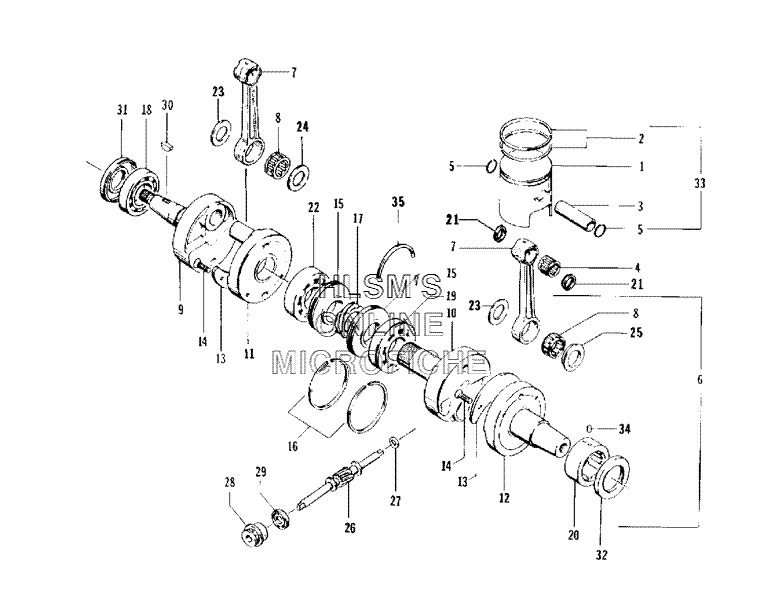

PISTON AND CRANKSHAFT для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска`
-
№АртикулНазвание
-
13005-407 PISTONPISTON
-
23003-760 RING ASSEMBLYRING ASSEMBLY
-
33003-767 PIN, PISTONPIN, PISTON
-
43003-433 BEARING, PISTON PINBEARING, PISTON PIN
-
53003-439 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-230 CRANKSHAFT ASSEMBLY (INC. 7-25)CRANKSHAFT ASSEMBLY (INC. 7-25)
-
73005-112 . ROD. ROD
-
83003-784 . BEARING. BEARING
-
93003-812 . CRANKSHAFT - RIGHT. CRANKSHAFT - RIGHT
-
103005-201 . CRANKSHAFT - CENTER. CRANKSHAFT - CENTER
-
113005-232 . WHEEL, CRANK. WHEEL, CRANK
-
123005-231 . CRANKSHAFT - LEFT. CRANKSHAFT - LEFT
-
133003-815 . BALANCER. BALANCER
-
143004-372 . SCREW, MACHINE. SCREW, MACHINE
-
153004-698 . RACE, MIDDLE SEAL. RACE, MIDDLE SEAL
-
163003-817 . RING. RING
-
173005-202 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
183005-210 . BEARING. BEARING
-
193003-164 . BEARING. BEARING
-
203003-805 . BEARING, CRANKSHAFT - LEFT. BEARING, CRANKSHAFT - LEFT
-
213005-209 . WASHER, PISTON PIN BEARING. WASHER, PISTON PIN BEARING
-
223003-164 . BEARING. BEARING
-
233003-782 . WASHER, CRANK PIN. WASHER, CRANK PIN
-
243003-783 . WASHER, CRANK PIN. WASHER, CRANK PIN
-
253003-933 . WASHER, CRANK PIN. WASHER, CRANK PIN
-
263005-324 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
273005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
283402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
293004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
303004-540 KEYKEY
-
313005-188 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
323003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
333004-198 PISTON ASSEMBLY (INC. 1-2 AND 5)PISTON ASSEMBLY (INC. 1-2 AND 5)
-
343003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
353003-216 C-RINGC-RING
