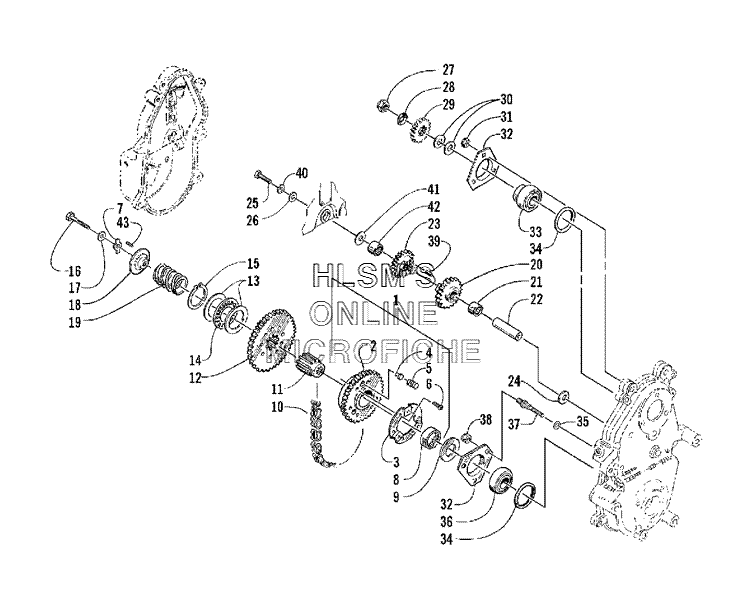

DRIVE/REVERSE DROPCASE ASSMEBLY для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0702-354 SPROCKET ASSEMBLY - 40T (15 WIDE) (INC. 2-6 AND 8)
    SPROCKET ASSEMBLY - 40T (15 WIDE) (INC. 2-6 AND 8)
  • 3
    0602-144 . RETAINER, SPRING
    . RETAINER, SPRING
  • 4
    0602-133 . PIN, SLIP
    . PIN, SLIP
  • 5
    0602-138 . SPRING, COMPRESSION
    . SPRING, COMPRESSION
  • 6
    8007-397 . SCREW, MACHINE
    . SCREW, MACHINE
  • 7
    1602-046 WASHER, TAB LOCK
    WASHER, TAB LOCK
  • 8
    0602-016 BEARING
    BEARING
  • 9
    0602-012 SPACER, SHAFT
    SPACER, SHAFT
  • 10
    0602-968 CHAIN - 70P
    CHAIN - 70P
  • 11
    1602-048 EXTENSION, DRIVESHAFT
    EXTENSION, DRIVESHAFT
  • 12
    0702-048 GEAR, REVERSE - 55T (INC. 13-15)
    GEAR, REVERSE - 55T (INC. 13-15)
  • 13
    0602-023 . WASHER, THRUST
    . WASHER, THRUST
  • 14
    0602-022 . BEARING, THRUST
    . BEARING, THRUST
  • 15
    0602-024 . RING, RETAINING
    . RING, RETAINING
  • 16
    8012-231 SCREW, CAP
    SCREW, CAP
  • 17
    8050-272 WASHER
    WASHER
  • 18
    0702-372 RETAINER, SHAFT (INC. 43N)
    RETAINER, SHAFT (INC. 43N)
  • 19
    0602-028 SPRING, RETURN
    SPRING, RETURN
  • 20
    0702-260 IDLER, REVERSE ASSEMBLY - 24T (INC. 21)
    IDLER, REVERSE ASSEMBLY - 24T (INC. 21)
  • 21
    0602-018 . BEARING
    . BEARING
  • 22
    0602-094 SHAFT, REVERSE
    SHAFT, REVERSE
  • 23
    0702-366 IDLER, REVERSE ASSEMBLY - 19T (INC. 41)
    IDLER, REVERSE ASSEMBLY - 19T (INC. 41)
  • 24
    0602-215 SPACER, REVERSE IDLER
    SPACER, REVERSE IDLER
  • 25
    8012-130 SCREW, CAP
    SCREW, CAP
  • 26
    8050-242 WASHER
    WASHER
  • 27
    0623-465 NUT, LOCK
    NUT, LOCK
  • 28
    0623-231 WASHER, SPRING
    WASHER, SPRING
  • 29
    0602-995 SPROCKET - 18T (15 WIDE)
    SPROCKET - 18T (15 WIDE)
  • 30
    0123-694 WASHER
    WASHER
  • 31
    8041-426 NUT, LOCK
    NUT, LOCK
  • 32
    0602-198 PLATE, FLANGE
    PLATE, FLANGE
  • 33
    0107-223 BEARING, 7/8 IN.
    BEARING, 7/8 IN.
  • 34
    0107-003 SEAL, O-RING
    SEAL, O-RING
  • 35
    0607-025 O-RING, STUD
    O-RING, STUD
  • 36
    0107-224 BEARING, 1 IN.
    BEARING, 1 IN.
  • 37
    0623-317 STUD, RIBBED
    STUD, RIBBED
  • 38
    8040-426 NUT, LOCK
    NUT, LOCK
  • 39
    0602-366 ALIGNER, IDLER - PIN
    ALIGNER, IDLER - PIN
  • 40
    8051-242 WASHER, LOCK
    WASHER, LOCK
  • 41
    1602-044 WASHER, THRUST
    WASHER, THRUST
  • 42
    1602-045 BEARING
    BEARING
  • 43
    8070-153 PIN, SPRING
    PIN, SPRING
