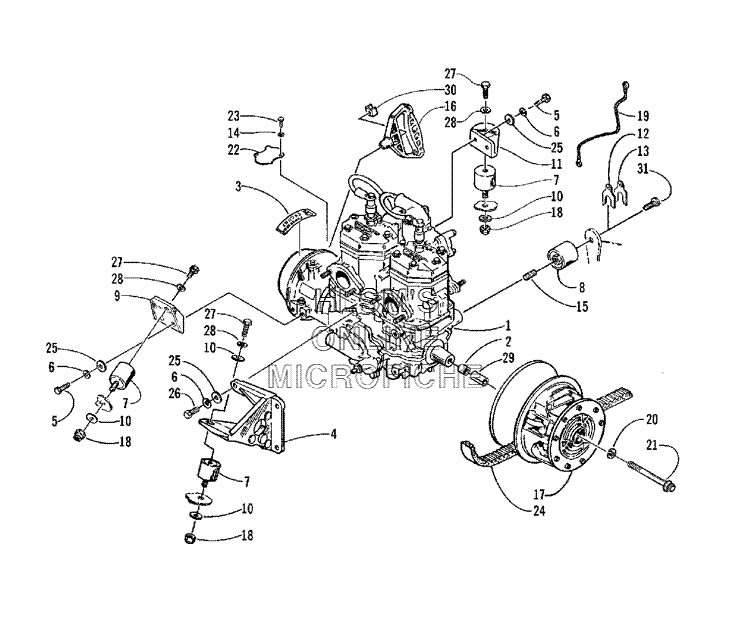

ENGINE AND RELATED PARTS для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-254 ENGINE, CB55L1
    ENGINE, CB55L1
  • 2
    0646-107 SPACER, ALUMINUM
    SPACER, ALUMINUM
  • 3
    1611-588 DECAL, ''POWERED BY''
    DECAL, ''POWERED BY''
  • 4
    0745-079 BRACKET, ENGINE MOUNT - LEFT FRONT
    BRACKET, ENGINE MOUNT - LEFT FRONT
  • 5
    8012-132 SCREW, CAP
    SCREW, CAP
  • 6
    8051-242 WASHER, LOCK
    WASHER, LOCK
  • 7
    0608-061 MOUNT, ENGINE
    MOUNT, ENGINE
  • 8
    0608-054 MOUNT, ENGINE - LEFT REAR
    MOUNT, ENGINE - LEFT REAR
  • 9
    0608-045 BRACKET, ENGINE MOUNT - RIGHT FRONT
    BRACKET, ENGINE MOUNT - RIGHT FRONT
  • 10
    8050-277 WASHER
    WASHER
  • 11
    0708-028 BRACKET, ENGINE MOUNT - RIGHT REAR
    BRACKET, ENGINE MOUNT - RIGHT REAR
  • 12
    0608-055 SHIM, ENGINE MOUNT - 1/32 IN.
    SHIM, ENGINE MOUNT - 1/32 IN.
  • 13
    0608-056 SHIM, ENGINE MOUNT - 1/16 IN.
    SHIM, ENGINE MOUNT - 1/16 IN.
  • 14
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 15
    0623-281 STUD, ENGINE MOUNT
    STUD, ENGINE MOUNT
  • 16
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 17
    0725-296 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 18
    8040-486 NUT
    NUT
  • 19
    0686-099 HARNESS, ENGINE GROUND
    HARNESS, ENGINE GROUND
  • 20
    0623-210 WASHER, LOCK
    WASHER, LOCK
  • 21
    0623-206 BOLT, CLUTCH
    BOLT, CLUTCH
  • 22
    3003-948 COVER, SENSOR OPENING
    COVER, SENSOR OPENING
  • 23
    0623-352 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    0627-014 BELT, DRIVE
    BELT, DRIVE
  • 25
    8050-242 WASHER
    WASHER
  • 26
    8012-132 SCREW, CAP
    SCREW, CAP
  • 27
    8012-222 SCREW, CAP
    SCREW, CAP
  • 28
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 29
    0646-106 SPACER, URETHANE
    SPACER, URETHANE
  • 30
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 31
    0623-295 SCREW, CAP
    SCREW, CAP
