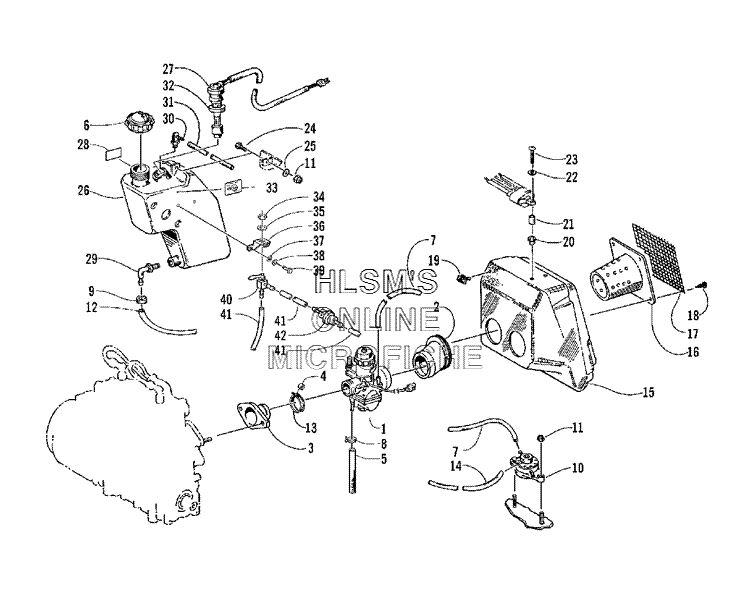

FUEL PUMP- OIL TANK W/ AIR SILENCER для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска`
-
№АртикулНазвание
-
10770-204 CARBURETOR, VM38CARBURETOR, VM38
-
20670-149 BOOT, CARBURETORBOOT, CARBURETOR
-
30670-197 FLANGE, CARBURETORFLANGE, CARBURETOR
-
40670-209 SPACER, CLAMPSPACER, CLAMP
-
50610-279 HOSE, DRAINHOSE, DRAIN
-
60670-341 CAP, TANKCAP, TANK
-
70610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
80623-652 CLAMP, HOSECLAMP, HOSE
-
90124-045 CLAMP, HOSECLAMP, HOSE
-
100670-311 PUMP, FUELPUMP, FUEL
-
118040-366 NUT, LOCKNUT, LOCK
-
120610-011 HOSE, OIL LINE - 25 FTHOSE, OIL LINE - 25 FT
-
130670-199 CLAMP, CARBURETOR FLANGE (INC. 4)CLAMP, CARBURETOR FLANGE (INC. 4)
-
140610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
150770-395 SILENCER, AIRSILENCER, AIR
-
160670-151 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
-
170670-155 SCREEN, AIR-INTAKESCREEN, AIR-INTAKE
-
180623-165 CLIP, RETAININGCLIP, RETAINING
-
190623-403 CLAMP, PUSH MOUNTCLAMP, PUSH MOUNT
-
200623-529 INSERTINSERT
-
210107-630 SPACER, COILSPACER, COIL
-
228050-157 WASHERWASHER
-
230623-082 SCREW, MACHINESCREW, MACHINE
-
248017-580 SCREW, MACHINESCREW, MACHINE
-
258050-217 WASHERWASHER
-
260670-742 TANK, OILTANK, OIL
-
270609-224 SENSOR, OIL (INC. 32)SENSOR, OIL (INC. 32)
-
281611-564 DECAL, OIL TANKDECAL, OIL TANK
-
290670-075 FITTING, OIL TANKFITTING, OIL TANK
-
300670-242 VENT, TANKVENT, TANK
-
310610-010 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
320609-237 SEAL, GROMMETSEAL, GROMMET
-
330611-978 DECAL, FUEL SHUT-OFF VALVEDECAL, FUEL SHUT-OFF VALVE
-
340623-287 NUTNUT
-
350623-288 WASHERWASHER
-
360670-284 BRACKET, MOUNTING - FUEL SHUT-OFF VALVEBRACKET, MOUNTING - FUEL SHUT-OFF VALVE
-
378050-222 WASHERWASHER
-
388051-212 WASHER, LOCKWASHER, LOCK
-
398002-037 SCREW, CAPSCREW, CAP
-
400670-144 VALVE, FUEL SHUT-OFFVALVE, FUEL SHUT-OFF
-
410610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
410610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
420510-335 FILTER, FUELFILTER, FUEL
