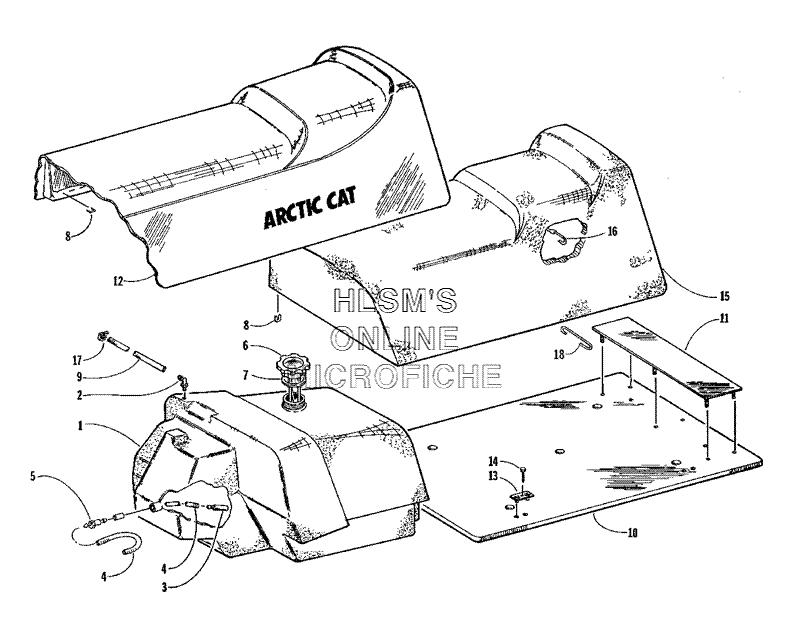

GAS TANK AND SEAT ASSMEBLIES для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    0718-494 COMPLETE SEAT ASSEMBLY
    COMPLETE SEAT ASSEMBLY
  • 1
    0770-190 TANK, GAS (INC. 2-5)
    TANK, GAS (INC. 2-5)
  • 2
    0670-572 . VENT, GAS TANK
    . VENT, GAS TANK
  • 3
    0510-358 . STRAINER
    . STRAINER
  • 4
    0610-017 . HOSE, GASLINE - 100 FT
    . HOSE, GASLINE - 100 FT
  • 4
    0610-008 . HOSE, GASLINE - 25 FT
    . HOSE, GASLINE - 25 FT
  • 5
    0670-042 . OUTLET, TANK
    . OUTLET, TANK
  • 6
    0670-135 CAP, GAS TANK (INC. 7)
    CAP, GAS TANK (INC. 7)
  • 7
    0109-733 . SEAL, GAS CAP
    . SEAL, GAS CAP
  • 8
    0623-577 STAPLE
    STAPLE
  • 9
    0610-010 HOSE, GAS TANK VENT
    HOSE, GAS TANK VENT
  • 10
    0718-786 BASE ASSEMBLY (INC. 13, 14, AND 19)
    BASE ASSEMBLY (INC. 13, 14, AND 19)
  • 11
    0716-319 PLATE, BACKING
    PLATE, BACKING
  • 12
    0716-586 COVER, SEAT
    COVER, SEAT
  • 13
    0716-570 PLATE, BACKING - HINGE (INC. 19)
    PLATE, BACKING - HINGE (INC. 19)
  • 14
    0623-301 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    0716-606 FOAM, SEAT COVER
    FOAM, SEAT COVER
  • 16
    1606-150 WIRE, SEAT
    WIRE, SEAT
  • 17
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0606-057 WIRE, SEAT
    WIRE, SEAT
  • 19
    0623-582 INSERT
    INSERT
