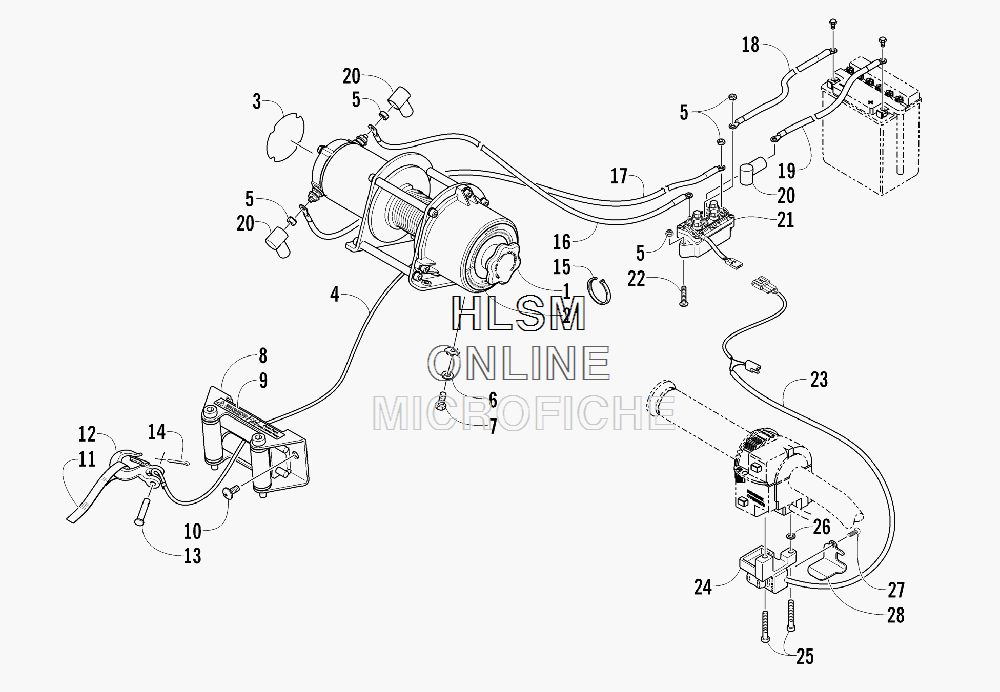

WINCH ASSEMBLY для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1441-830 WINCH (INC. 2-4 AND TWO NO. 5)
    WINCH (INC. 2-4 AND TWO NO. 5)
  • 2
    2411-141 ...DECAL, WARNING - TENSION
    ...DECAL, WARNING - TENSION
  • 3
    2411-140 ...DECAL, WARNING - OPERATION
    ...DECAL, WARNING - OPERATION
  • 4
    1441-831 ...CABLE, WINCH
    ...CABLE, WINCH
  • 5
    0623-038 ...NUT W/WASHER
    ...NUT W/WASHER
  • 6
    8051-246 WASHER, LOCK
    WASHER, LOCK
  • 7
    8408-820 SCREW, CAP
    SCREW, CAP
  • 8
    0441-403 ROLLER, WINCH (INC. 9)
    ROLLER, WINCH (INC. 9)
  • 9
    0411-474 ...DECAL, WARNING - PINCH POINT
    ...DECAL, WARNING - PINCH POINT
  • 10
    8468-820 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    1441-781 STRAP
    STRAP
  • 12
    1441-833 HOOK, WINCH
    HOOK, WINCH
  • 13
    1441-834 PIN
    PIN
  • 14
    0623-175 PIN, COTTER
    PIN, COTTER
  • 15
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 16
    0445-068 CABLE, WINCH/SOLENOID - YELLOW
    CABLE, WINCH/SOLENOID - YELLOW
  • 17
    0445-069 CABLE, WINCH/SOLENOID - BLUE
    CABLE, WINCH/SOLENOID - BLUE
  • 18
    1441-112 CABLE, SOLENOID/BATTERY - BLACK
    CABLE, SOLENOID/BATTERY - BLACK
  • 19
    0445-087 CABLE, SOLENOID/BATTERY - RED
    CABLE, SOLENOID/BATTERY - RED
  • 20
    0645-019 BOOT, TERMINAL
    BOOT, TERMINAL
  • 21
    0409-066 SOLENOID
    SOLENOID
  • 22
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0409-087 SWITCH, CONTROL
    SWITCH, CONTROL
  • 24
    0409-034 RETAINER, CONTROL SWITCH
    RETAINER, CONTROL SWITCH
  • 25
    8464-560 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    0423-593 WASHER
    WASHER
  • 27
    0423-382 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    0409-106 COVER, SWITCH
    COVER, SWITCH
