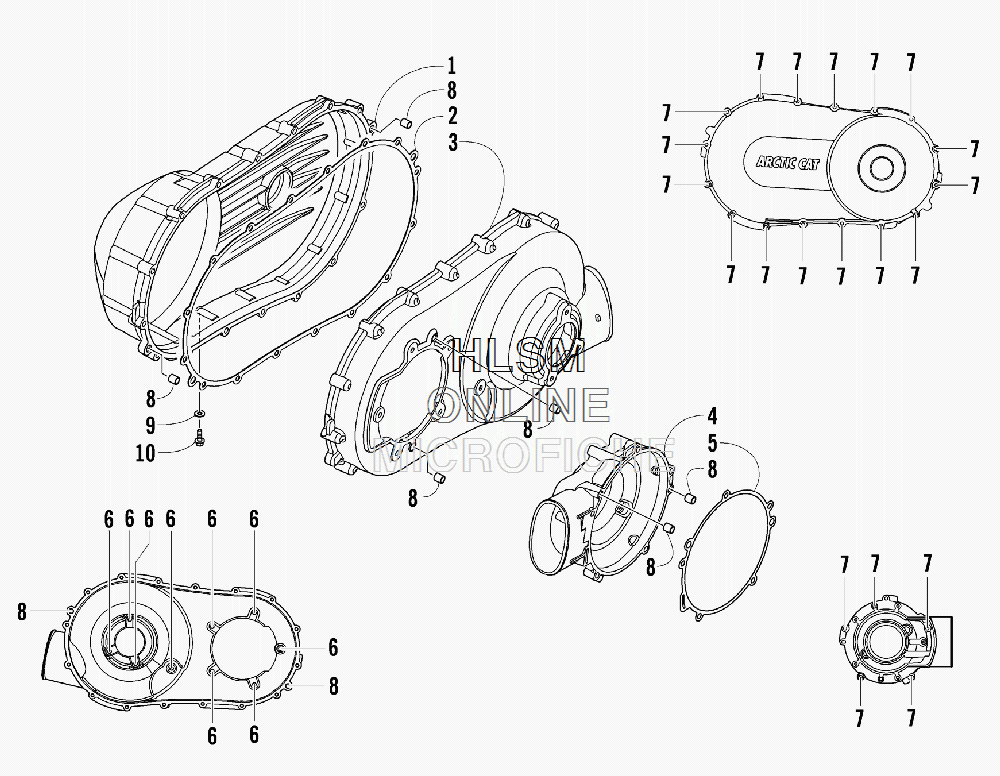

CLUTCH SIDE ENGINE COVERS для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0806-112 COVER, OUTSIDE
    COVER, OUTSIDE
  • 2
    0830-137 GASKET, COVER
    GASKET, COVER
  • 3
    0806-110 COVER, INSIDE
    COVER, INSIDE
  • 4
    0806-109 COVER, CLUTCH
    COVER, CLUTCH
  • 5
    0830-133 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 6
    8468-616 SCREW, MACH-TSPNH M6X1.0X16 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X16 CL8.8 BLK
  • 7
    8468-630 SCREW, MACH-TSPNH M6X1.0X30 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X30 CL8.8 BLK
  • 8
    0829-001 PIN, DOWEL
    PIN, DOWEL
  • 9
    0830-013 WASHER, CRUSH, 8 X 16 X 1
    WASHER, CRUSH, 8 X 16 X 1
  • 10
    8408-812 SCREW, CAP-HFH M8X1.25X12 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X12 CL8.8 Z & Y
