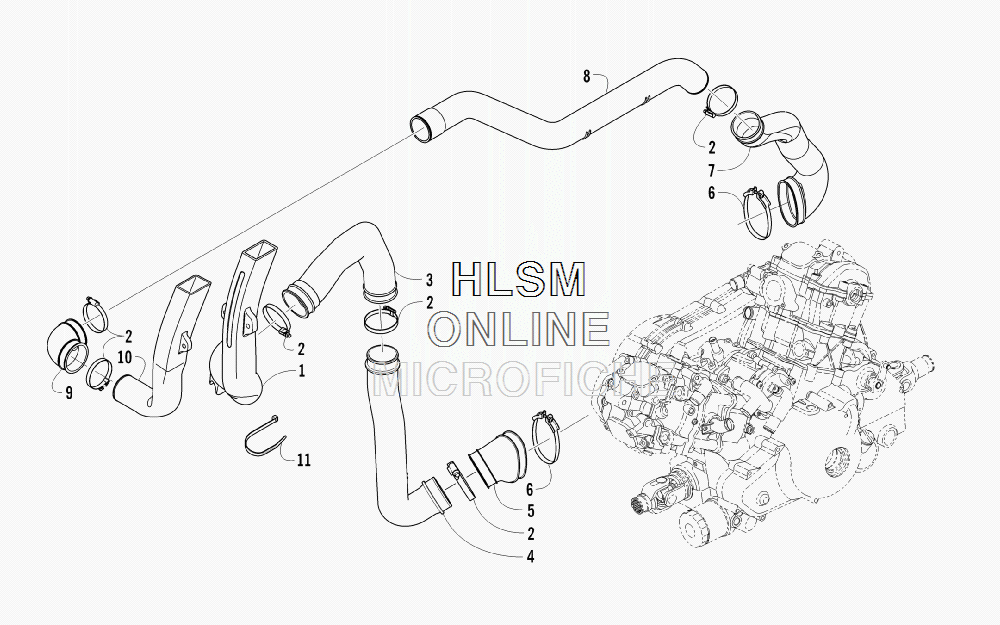

CASE/BELT COOLING ASSEMBLY для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0513-035 DUCT, INTAKE - FRONT
    DUCT, INTAKE - FRONT
  • 2
    0423-019 CLAMP, HOSE-WORM (NORMA 50-70)
    CLAMP, HOSE-WORM (NORMA 50-70)
  • 3
    0413-092 BOOT, INTAKE
    BOOT, INTAKE
  • 4
    0413-250 DUCT, INTAKE - LOWER
    DUCT, INTAKE - LOWER
  • 5
    0413-055 BOOT, INTAKE
    BOOT, INTAKE
  • 6
    0423-057 CLAMP, HOSE-WORM (NORMA 70-90X9MM)
    CLAMP, HOSE-WORM (NORMA 70-90X9MM)
  • 7
    0413-249 BOOT, AIR OUT
    BOOT, AIR OUT
  • 8
    0513-033 DUCT, AIR OUT - REAR
    DUCT, AIR OUT - REAR
  • 9
    0413-098 BOOT, AIR OUT
    BOOT, AIR OUT
  • 10
    0513-034 DUCT, AIR OUT - FRONT
    DUCT, AIR OUT - FRONT
  • 11
    0623-144 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
