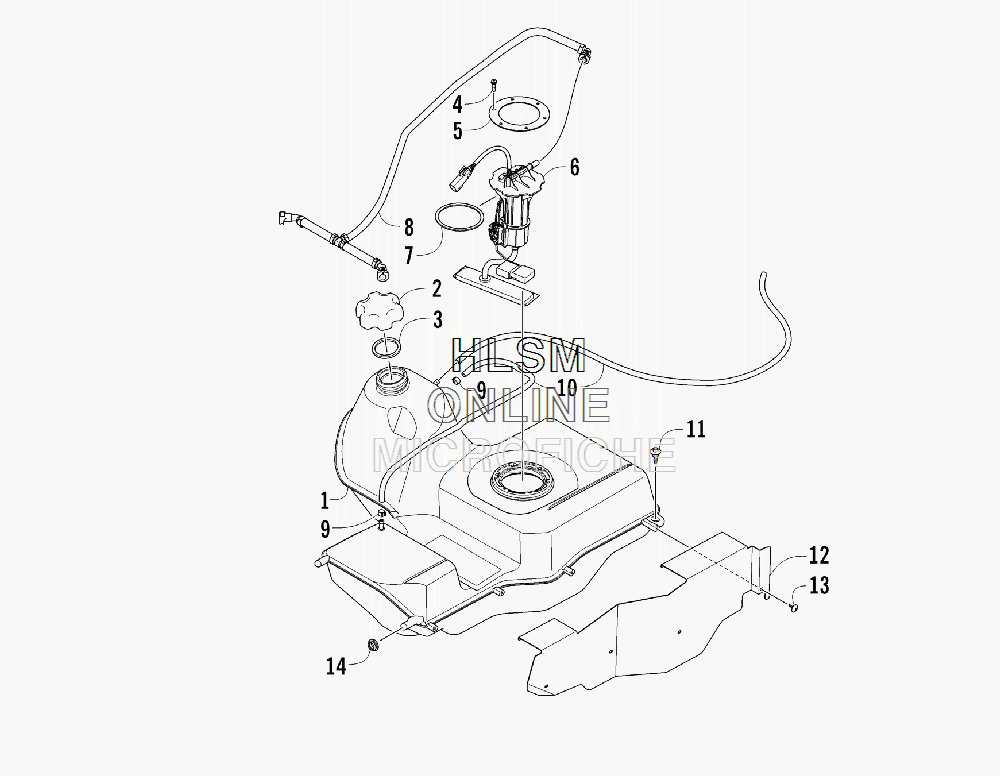

GAS TANK ASSEMBLY для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-308 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    0423-898 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    2670-042 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 6
    0570-323 PUMP, FUEL - ASSEMBLY (INC. 7)
    PUMP, FUEL - ASSEMBLY (INC. 7)
  • 7
    0470-838 ...SEAL
    ...SEAL
  • 8
    0570-282 HOSE, FUEL - ASSEMBLY
    HOSE, FUEL - ASSEMBLY
  • 9
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 11
    0423-732 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    0470-822 SHIELD, HEAT
    SHIELD, HEAT
  • 13
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0423-460 GROMMET
    GROMMET
