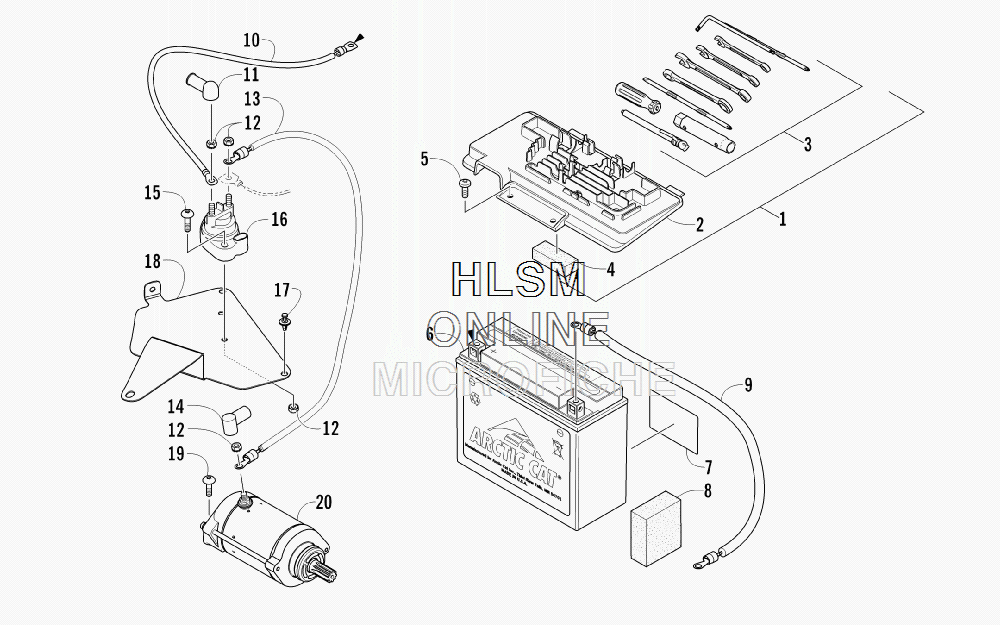

BATTERY AND STARTER ASSEMBLY для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    5991-655 BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
    BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
  • 2
    2406-815 ...COVER, BATTERY
    ...COVER, BATTERY
  • 3
    0444-122 ...KIT, TOOL
    ...KIT, TOOL
  • 4
    0417-016 ...PAD, BATTERY
    ...PAD, BATTERY
  • 5
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0645-480 BATTERY ASSEMBLY (INC. 7)
    BATTERY ASSEMBLY (INC. 7)
  • 7
    0645-430 ...DECAL, WARNING
    ...DECAL, WARNING
  • 8
    0417-017 FOAM, BATTERY
    FOAM, BATTERY
  • 9
    0445-071 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 10
    0445-062 CABLE, BATTERY/SOLENIOD
    CABLE, BATTERY/SOLENIOD
  • 11
    0645-327 BOOT, TERMINAL
    BOOT, TERMINAL
  • 12
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 13
    0445-066 CABLE, SOLENOID/STARTER (INC. 14)
    CABLE, SOLENOID/STARTER (INC. 14)
  • 14
    0645-019 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 15
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0445-058 SOLENOID
    SOLENOID
  • 17
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 18
    2416-096 PLATE, MOUNTING - SOLENOID
    PLATE, MOUNTING - SOLENOID
  • 19
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    0825-015 MOTOR, STARTER - ASSEMBLY
    MOTOR, STARTER - ASSEMBLY
