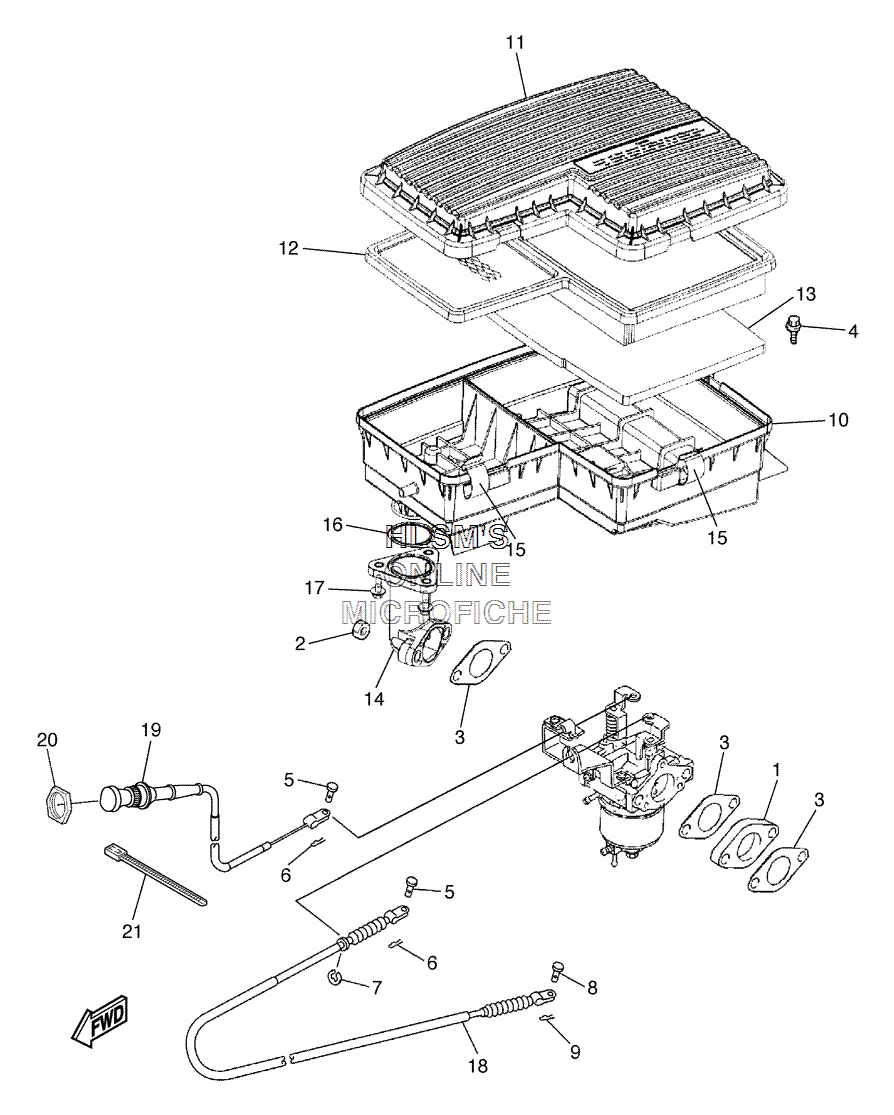

AIR CLEANER ASSY. W/ INTAKE для Yamaha PRO HAULER 1000 - 2005 года выпуска`
-
№АртикулНазвание
-
1JN6-13595-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
295707-08500-00 NUT, FLANGENUT, FLANGE
-
3JN6-13567-00-00 GASKETGASKET
-
490119-06838-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
591701-05010-00 PIN, CLEVISPIN, CLEVIS
-
690468-10049-00 CLIPCLIP
-
799001-07600-00 CIRCLIPCIRCLIP
-
891701-05010-00 PIN, CLEVISPIN, CLEVIS
-
990468-10049-00 CLIPCLIP
-
10JN6-E4411-02-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
11JN6-E4412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
12JN6-E4450-01-PC ELEMENT ASSY., AIR CLEANERELEMENT ASSY., AIR CLEANER
-
13JN6-E445E-00-00 AIR FILTERAIR FILTER
-
14JN6-E3586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
15JN6-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
1693210-398D6-00 O-RINGO-RING
-
1790105-06862-00 BOLT, FLANGEBOLT, FLANGE
-
18JN6-F6312-01-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
19J55-F6331-11-00 CABLE, STARTER 1CABLE, STARTER 1
-
20JN6-F6333-10-00 NUTNUT
-
2190464-31827-00 CLAMPCLAMP
