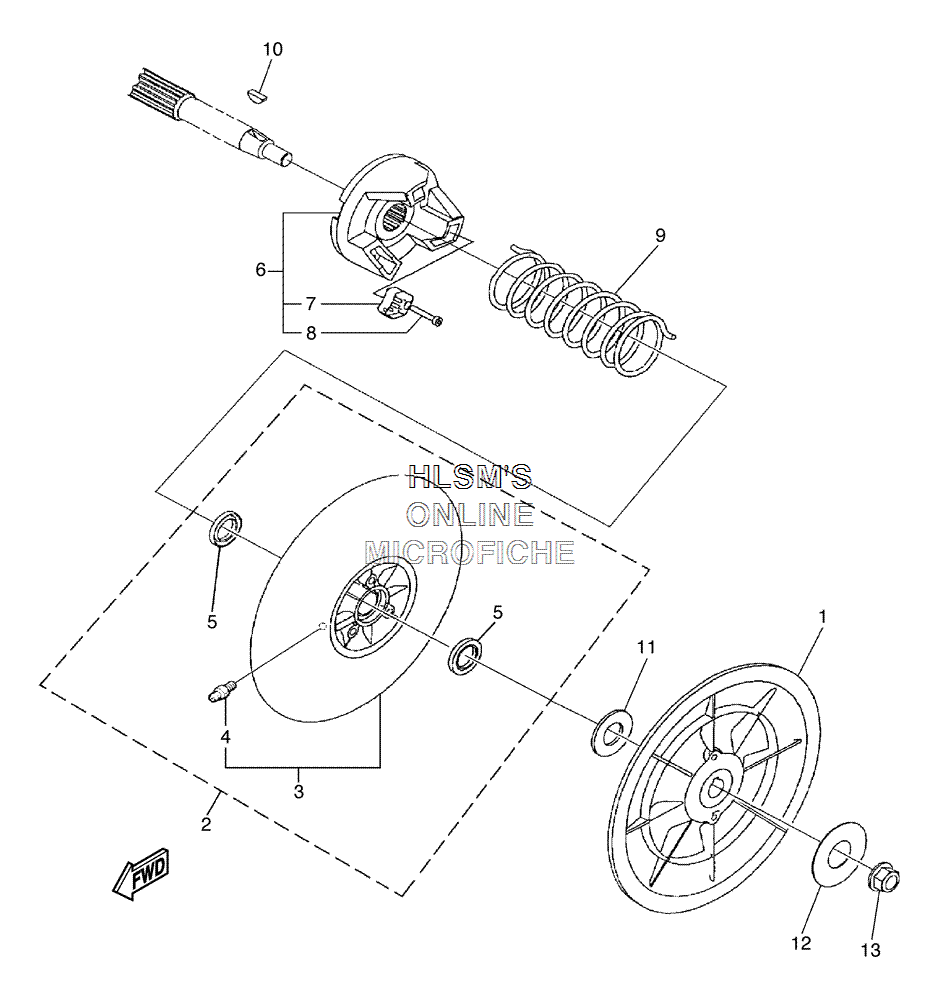

SECONDARY SHEAVE для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
1JN6-G6260-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
2JN6-G6270-01-00 SECONDARY SLIDING SHEAVE COMP.SECONDARY SLIDING SHEAVE COMP.
-
3JN6-G6271-02-00 ...SECONDARY SLIDING SHEAVE...SECONDARY SLIDING SHEAVE
-
493700-06809-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
593109-20069-00 ...OIL SEAL...OIL SEAL
-
6JN6-G6280-00-00 SECONDARY SPRING SEAT COMP.SECONDARY SPRING SEAT COMP.
-
7JN6-E7688-00-00 ...SHOE, RAMP...SHOE, RAMP
-
890110-04834-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
990508-45849-00 SPRING, TORSIONSPRING, TORSION
-
1090280-05022-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190202-20130-00 WASHER, PLATEWASHER, PLATE
-
1290201-128S5-00 WASHER, PLATEWASHER, PLATE
-
1395607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
