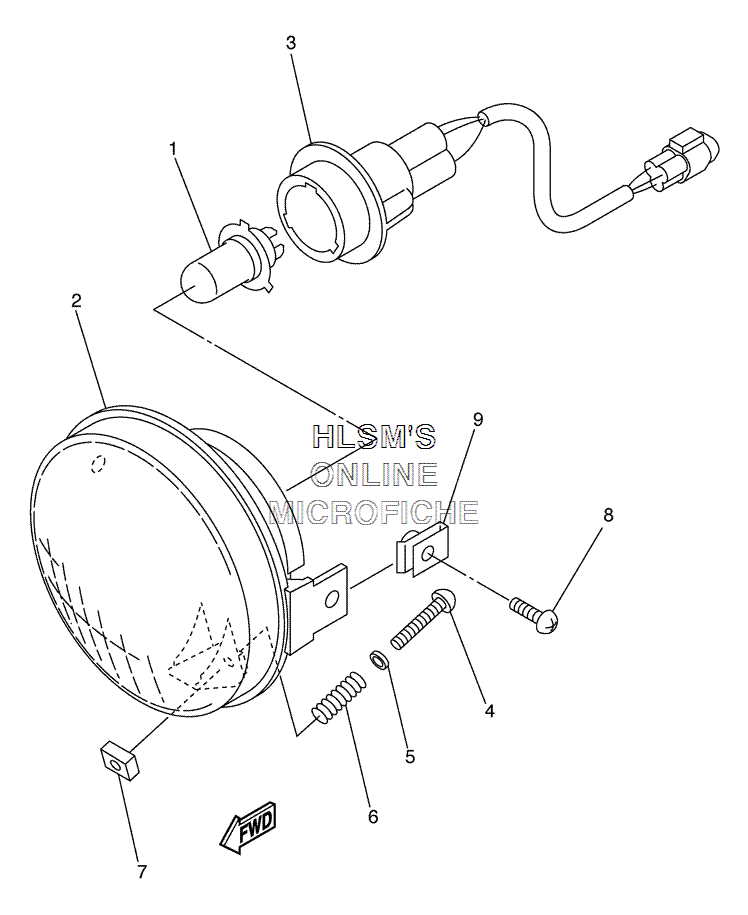

HEADLIGHT ASSY. для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
15FU-H4314-00-00 BULB, HEADLIGHT(12V-30/30W)BULB, HEADLIGHT(12V-30/30W)
-
25FU-H4320-00-00 LENS ASSY.LENS ASSY.
-
35FU-H4340-00-00 SOCKET CORD ASSY. 1SOCKET CORD ASSY. 1
-
498507-03540-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5JW4-H3663-00-00 WASHER, SPECIALWASHER, SPECIAL
-
62GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
7JU7-H4334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
890150-05802-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
990183-05008-00 NUT, SPRINGNUT, SPRING
