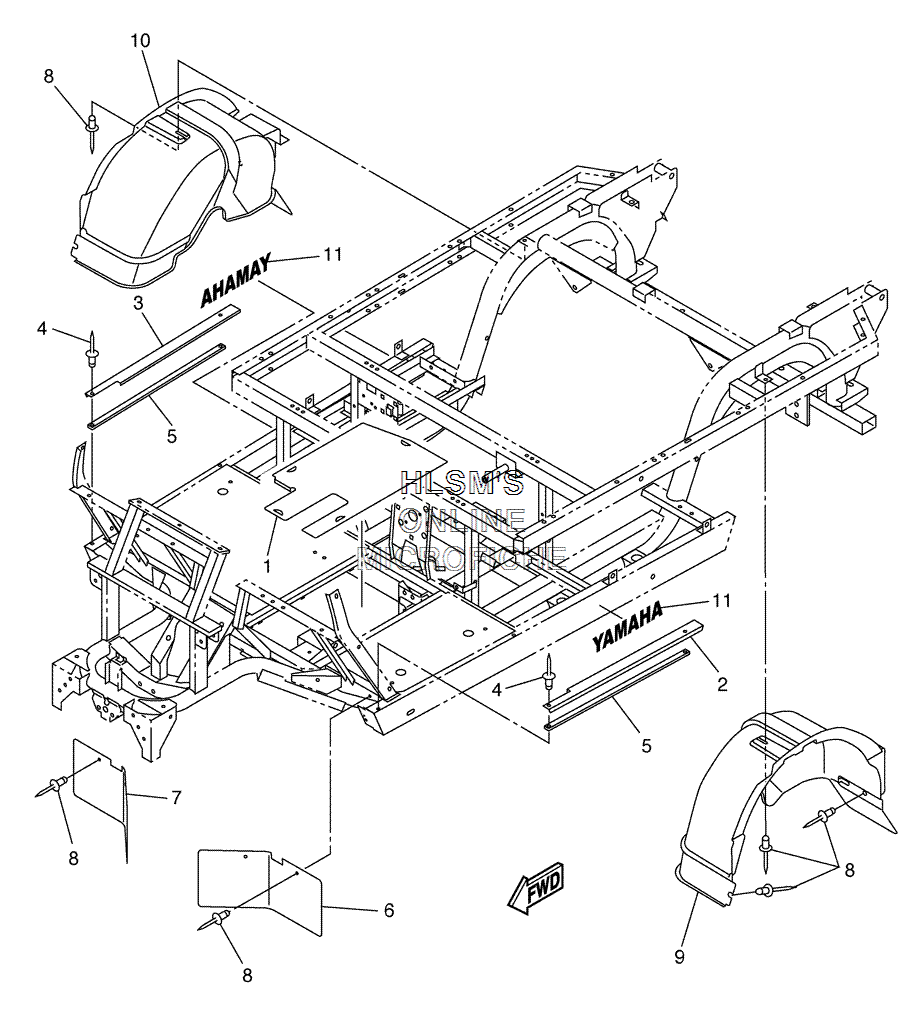

BODY FITTING для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
1JN6-K8271-00-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
2JF2-K8215-10-00 PLATE, SIDE TRIM 1PLATE, SIDE TRIM 1
-
3JF2-K821F-10-00 PLATE, SIDE TRIM 2PLATE, SIDE TRIM 2
-
490267-48154-00 RIVET, BLINDRIVET, BLIND
-
5JJ3-K8124-00-00 REINFORCEMENT 4REINFORCEMENT 4
-
6JF2-K8187-00-00 FLAP, FRONT FENDER (L.H)FLAP, FRONT FENDER (L.H)
-
7JF2-K8189-00-00 FLAP, FRONT FENDER (R.H)FLAP, FRONT FENDER (R.H)
-
890267-48831-00 RIVET, BLINDRIVET, BLIND
-
9JJ3-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
10JJ3-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
11JW5-F153A-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
