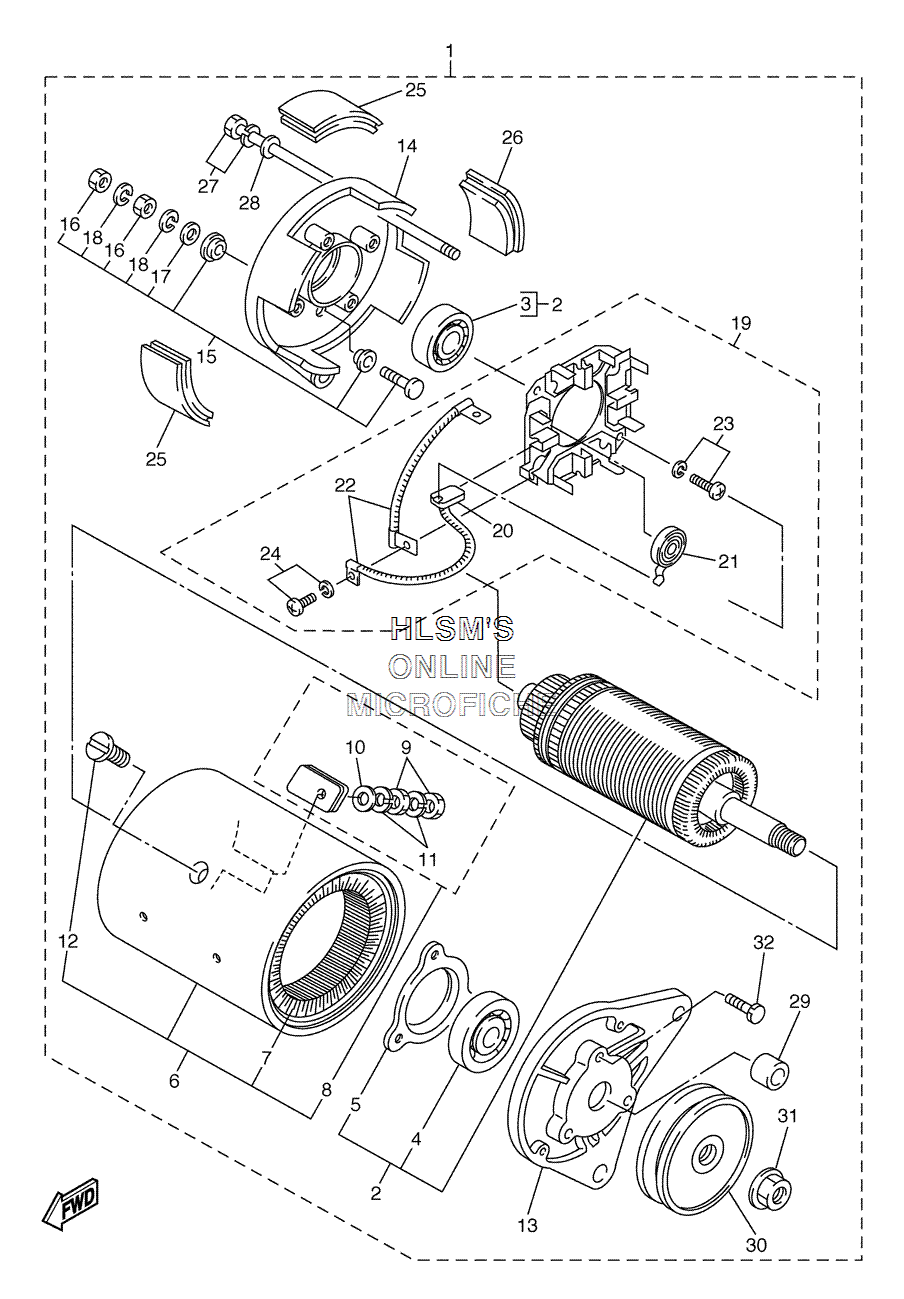

STARTING MOTOR ASSY. для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
1JN6-H1100-03-00 STARTER GENERATOR ASSY.STARTER GENERATOR ASSY.
-
2JN3-H1150-00-00 ...ARMATURE ASSY....ARMATURE ASSY.
-
3J10-H1157-10-00 ...BEARING 1 (6202 SD)...BEARING 1 (6202 SD)
-
4J10-H1158-10-00 ...BEARING 2 (6203 SD)...BEARING 2 (6203 SD)
-
5J10-H1159-10-00 ...HOLDER, BEARING...HOLDER, BEARING
-
6JN6-H1110-10-00 ...STATOR ASSY....STATOR ASSY.
-
7JN6-H1160-10-00 ...FIELD COIL ASSY....FIELD COIL ASSY.
-
8J10-81148-10-00 ...SCREW SET 4...SCREW SET 4
-
99530N-06600-00 ...NUT...NUT
-
109290N-06600-00 ...WASHER...WASHER
-
119290N-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
12J10-81146-10-00 ...SCREW 2...SCREW 2
-
13JN6-H1165-00-00 ...BRACKET, STARTER GENERATOR 1...BRACKET, STARTER GENERATOR 1
-
14J10-H1166-10-00 ...BRACKET, STARTER GENERATOR 2...BRACKET, STARTER GENERATOR 2
-
15J10-H1147-10-00 ...SCREW 3...SCREW 3
-
169530N-06600-00 ...NUT...NUT
-
179290N-06600-00 ...WASHER...WASHER
-
189290N-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
19JN6-H1119-00-00 ...BRUSH HOLDER ASSY....BRUSH HOLDER ASSY.
-
20JF2-H1111-00-00 ...BRUSH...BRUSH
-
21JN6-H1113-00-00 ...SPRING, BRUSH...SPRING, BRUSH
-
22J10-H1115-10-00 ...WIRE, LEAD...WIRE, LEAD
-
239850N-05016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
249850N-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
25J10-H1129-10-00 ...COVER, BRUSH...COVER, BRUSH
-
26J10-H1139-10-00 ...COVER, BRUSH 2...COVER, BRUSH 2
-
27J10-H1145-10-00 ...SCREW 1...SCREW 1
-
289290N-06600-00 ...WASHER, WAVE...WASHER, WAVE
-
29JN3-H1661-00-00 ...SPACER...SPACER
-
30JN6-H1161-00-00 ...PULLEY...PULLEY
-
3190179-16889-00 ...NUT...NUT
-
329850N-05018-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
