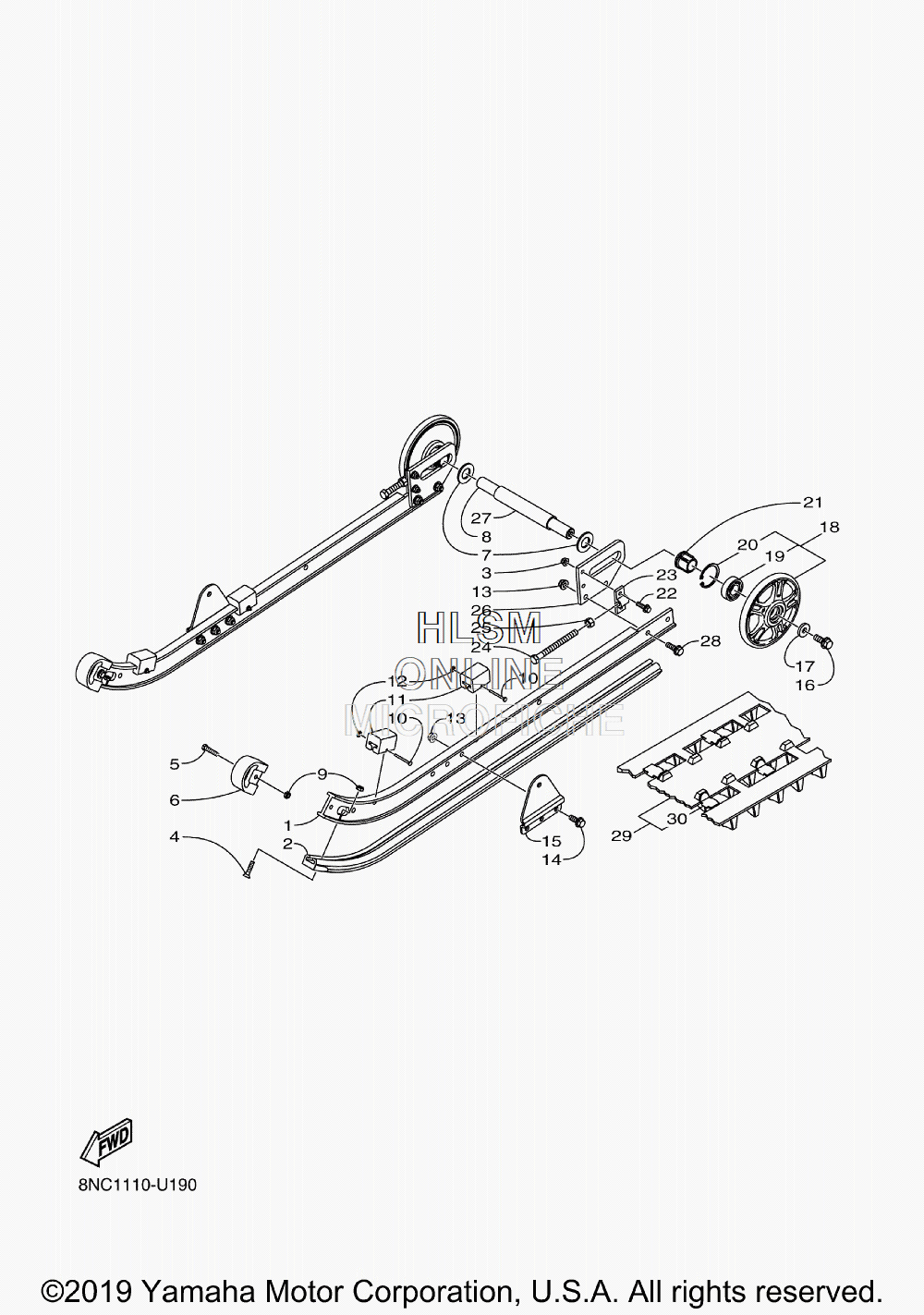

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SNOSCOOT ES - 2019 года выпуска`
-
№АртикулНазвание
-
18ML-G741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28ML-G7421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
38JP-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
48JM-RA206-00-00 SCREWSCREW
-
58JM-RA115-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
68JM-G7422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
78LN-RA466-00-00 WASHER, 9WASHER, 9
-
88JM-G7521-00-00 AXLE, REARAXLE, REAR
-
98JM-RA311-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
108JM-RAY02-00-00 PIN, 2PIN, 2
-
118JM-G7456-00-00 DAMPER 1DAMPER 1
-
128JM-RA313-00-00 NUT, SPRINGNUT, SPRING
-
138JM-RA303-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148JM-RA117-00-00 BOLT, FLANGEBOLT, FLANGE
-
158JM-G7415-00-00 BRACKET 1BRACKET 1
-
168JM-RA118-00-00 BOLT, FLANGEBOLT, FLANGE
-
178JM-RA409-00-00 WASHER, PLAINWASHER, PLAIN
-
188JM-G7550-20-00 GUIDE WHEEL ASSY (VYRS4 - YELLOWISH RED)GUIDE WHEEL ASSY (VYRS4 - YELLOWISH RED)
-
188JM-G7550-10-00 GUIDE WHEEL ASSY (DPBSE - PURPLISH BLUE)GUIDE WHEEL ASSY (DPBSE - PURPLISH BLUE)
-
198JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
208JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
218JM-G7341-00-00 SPACERSPACER
-
228MV-RA106-00-00 BOLT, FLANGEBOLT, FLANGE
-
238JM-G8177-00-00 PLATE, ADJUSTINGPLATE, ADJUSTING
-
248JM-RA119-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
258JM-RA314-10-00 NUT, HEXAGONNUT, HEXAGON
-
268JM-G741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
278ML-RA706-00-00 COLLARCOLLAR
-
288MV-RA117-00-00 BOLT, FLANGEBOLT, FLANGE
-
298ML-G7110-00-00 TRACK ASSYTRACK ASSY
-
308JM-G7119-00-00 ...METAL, GUIDE...METAL, GUIDE
