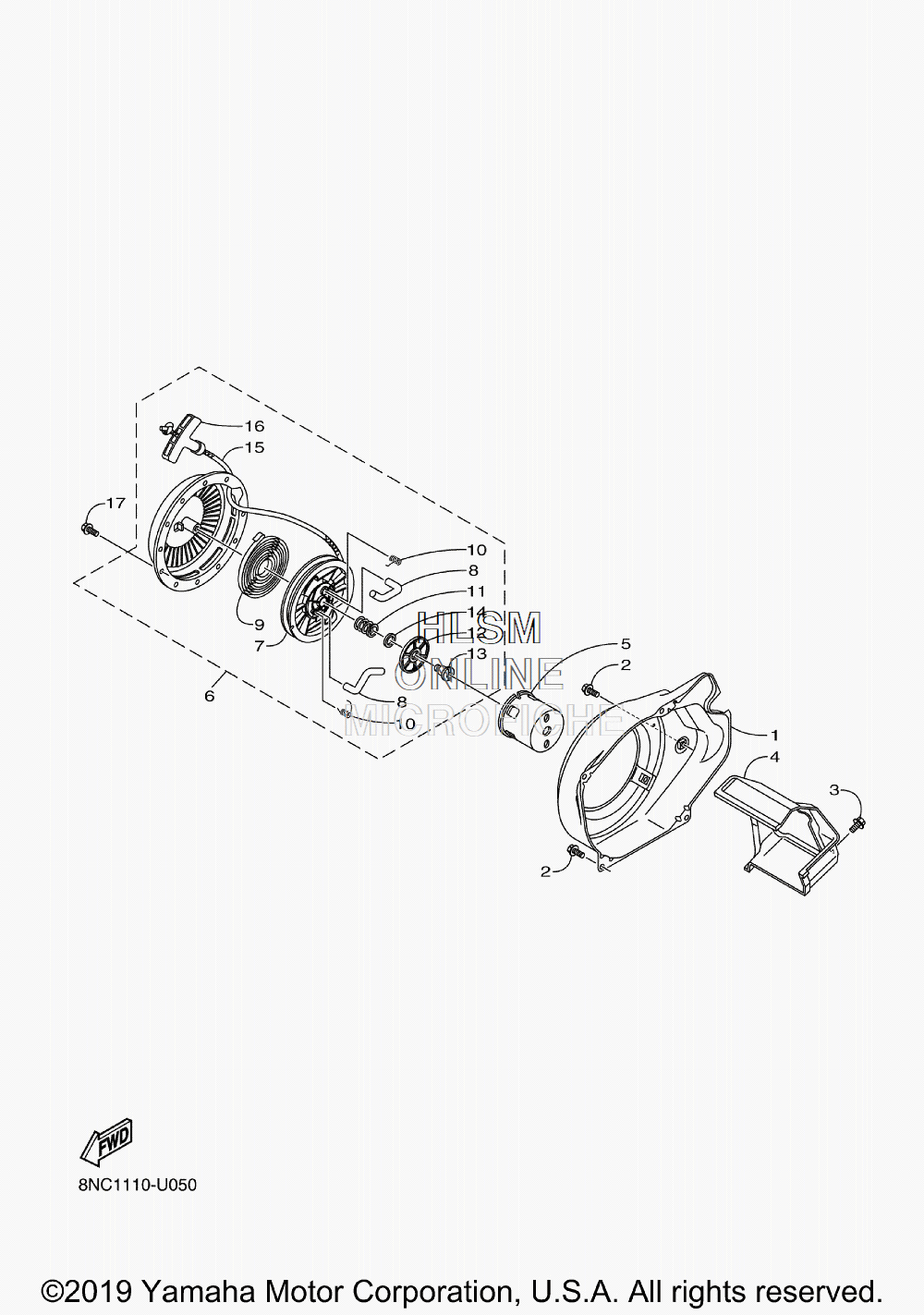

AIR SHROUD W/ RECOIL STARTER для Yamaha SNOSCOOT ES - 2019 года выпуска`
-
№АртикулНазвание
-
17CN-E2621-31-00 CASE, FANCASE, FAN
-
295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
395822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
47CN-E2651-01-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
57DH-E5723-00-00 PULLEY, STARTERPULLEY, STARTER
-
67DH-E5710-30-00 STARTER ASSYSTARTER ASSY
-
77DH-E5714-01-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
87DH-E5741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
97DH-E5713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
107DH-E5743-00-00 ...SPRING, RETURN...SPRING, RETURN
-
117DH-E5715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
127DH-E5716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
137DH-E5793-00-00 ...SCREW...SCREW
-
147DH-E5719-00-00 ...WASHER, THRUST...WASHER, THRUST
-
157DH-E5751-10-00 ...WIRE, STARTER...WIRE, STARTER
-
167DH-E5755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
1790105-068B9-00 BOLT, FLANGEBOLT, FLANGE
