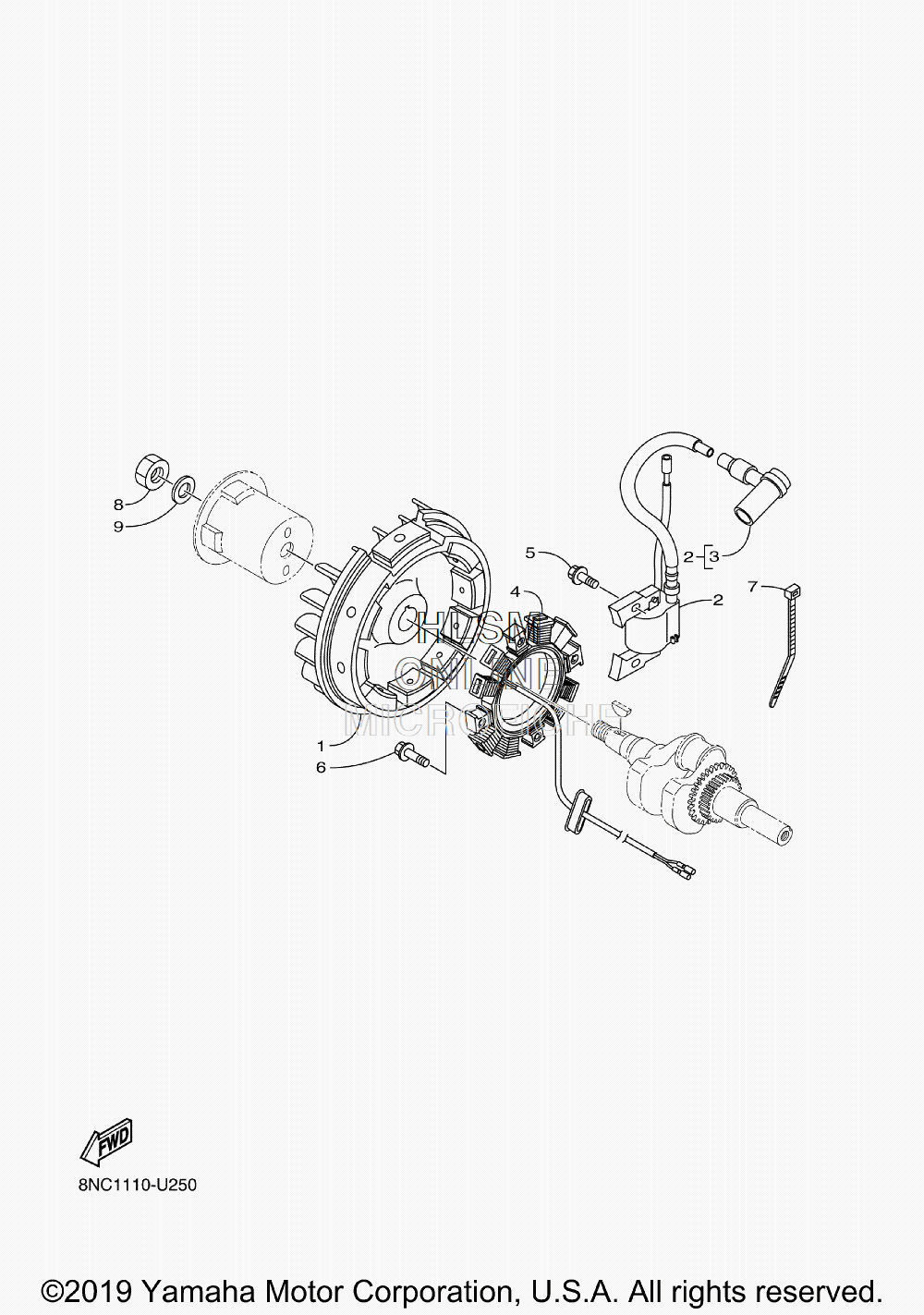

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
17DH-H5650-40-00 ROTOR ASSYROTOR ASSY
-
27CN-H2300-00-00 IGN. ASSYIGN. ASSY
-
37CN-H2370-00-00 ...PLUG CAP ASSY...PLUG CAP ASSY
-
47DH-H5521-10-00 COIL ASSYCOIL ASSY
-
595822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
695822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
77CN-H7188-00-00 BINDER (UN)BINDER (UN)
-
890170-14800-00 NUTNUT
-
992902-14200-00 WASHERWASHER
