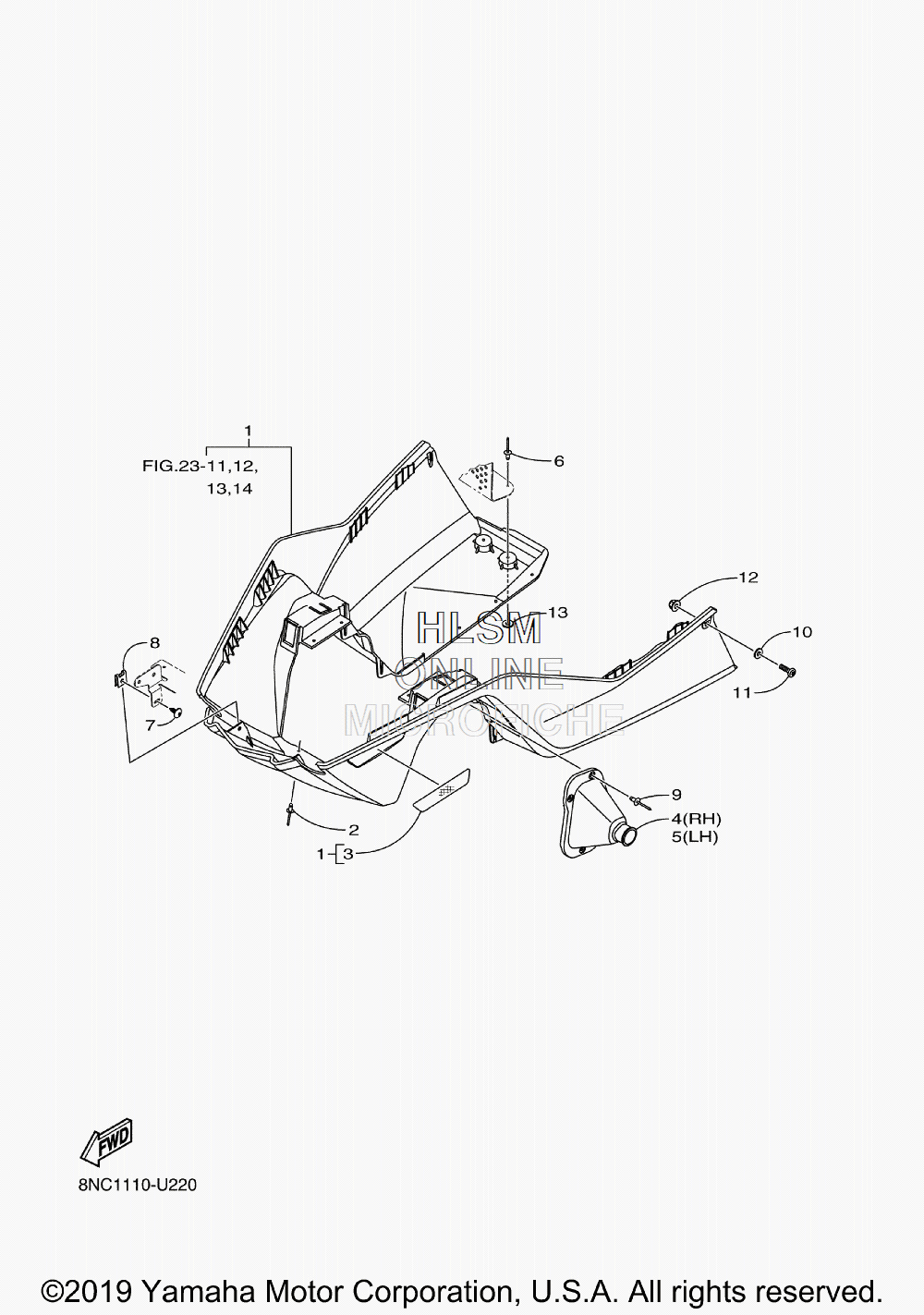

FRONT FRAME COMP для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18NC-F1914-00-00 PANEL, SUB FRAME 3 (DPBSE - PURPLISH BLUE)PANEL, SUB FRAME 3 (DPBSE - PURPLISH BLUE)
-
18NC-F1914-10-00 PANEL, SUB FRAME 3 (VYRS4 - YELLOWISH RED)PANEL, SUB FRAME 3 (VYRS4 - YELLOWISH RED)
-
28LN-RA525-00-00 RIVET, 16RIVET, 16
-
38MY-H5133-00-00 ...TAPE, REFLECTOR (INCL 1)...TAPE, REFLECTOR (INCL 1)
-
48JM-F198G-00-00 COVER 2COVER 2
-
58JM-F198F-00-00 COVER 1COVER 1
-
68JP-RA533-00-00 RIVET, 21RIVET, 21
-
78KC-RA290-00-00 SCREWSCREW
-
88JP-RA352-00-00 NUT, SPRINGNUT, SPRING
-
98JM-RA503-00-00 RIVET, BLIND 4RIVET, BLIND 4
-
108ML-RA411-00-00 WASHER, PLAINWASHER, PLAIN
-
118JP-RA247-00-00 SCREWSCREW
-
128JP-RA363-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138ML-RA400-00-00 WASHER, PLAINWASHER, PLAIN
