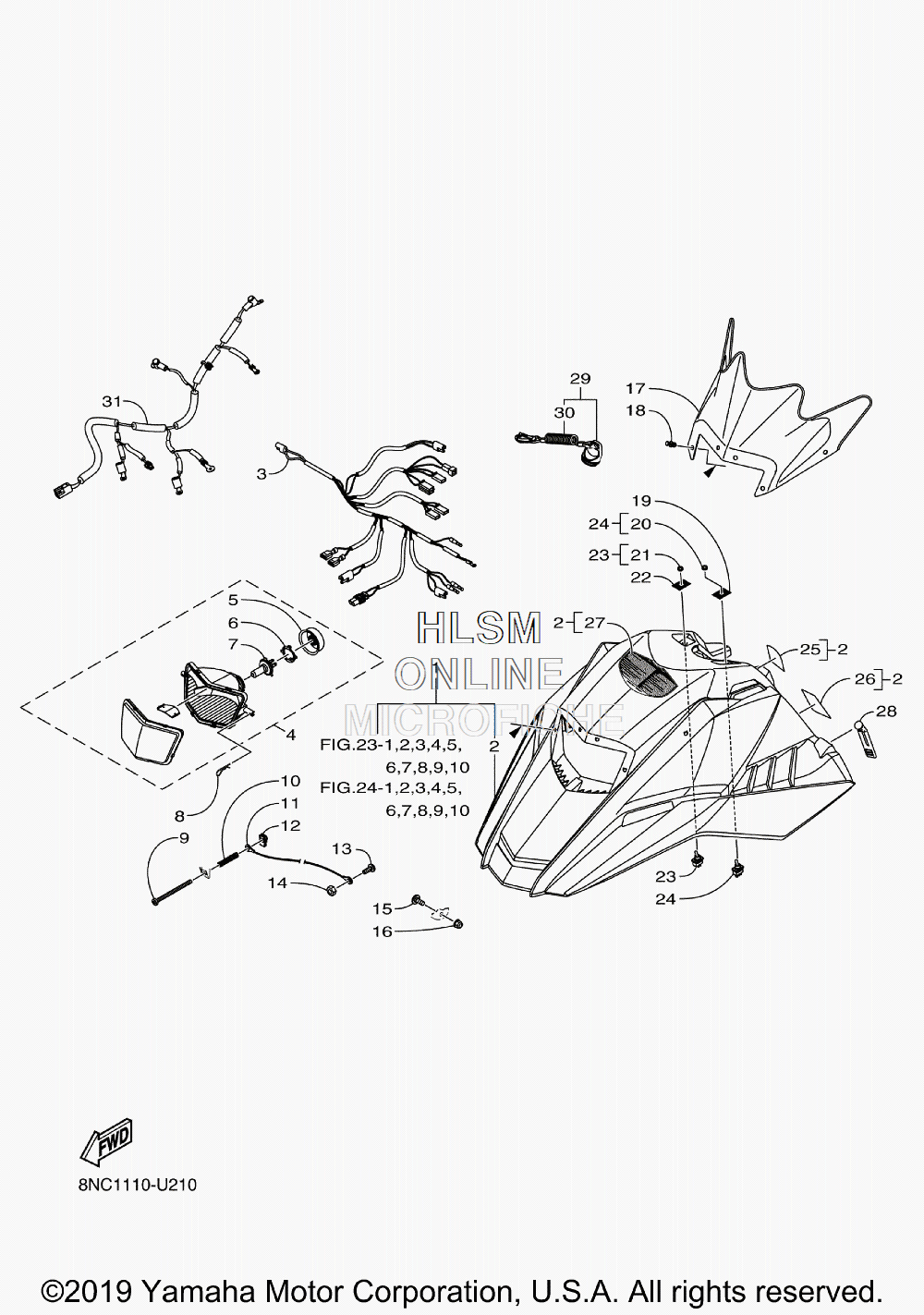

HOOD - WINDSHIELD ASSY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18ML-RAS10-11-00 SHROUD, WITH DECALS AND LABELS (DPBSE - PURPLISH BLUE)SHROUD, WITH DECALS AND LABELS (DPBSE - PURPLISH BLUE)
-
18ML-RAS10-41-00 SHROUD, WITH DECALS AND LABELS (VYRS4 - YELLOWISH RED)SHROUD, WITH DECALS AND LABELS (VYRS4 - YELLOWISH RED)
-
28ML-RAS30-41-00 ...SHROUD, WITH LABELS (VYRS4 - YELLOWISH RED)...SHROUD, WITH LABELS (VYRS4 - YELLOWISH RED)
-
28ML-RAS30-11-00 ...SHROUD, WITH LABELS (DPBSE - PURPLISH BLUE)...SHROUD, WITH LABELS (DPBSE - PURPLISH BLUE)
-
38NC-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
48ML-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
58ML-H4397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
68JP-H4393-00-00 ...SPRING SUPPORT...SPRING SUPPORT
-
78JR-H4314-00-00 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
88MV-H4374-00-00 CLIPCLIP
-
98MV-RA210-00-00 SCREWSCREW
-
108MV-RAD07-00-00 SPRING, COMPRESSION 3SPRING, COMPRESSION 3
-
118MV-K7118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
128JP-RA354-00-00 NUT, SPRINGNUT, SPRING
-
138JM-RA209-10-00 SCREWSCREW
-
148JM-RA319-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
158JP-RA253-00-00 SCREWSCREW
-
168MV-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
178ML-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
188ML-RA511-01-00 RIVET, 2RIVET, 2
-
198ML-K7229-00-00 LABELLABEL
-
208JM-RA345-00-00 ...NUT, 1 (INCL 24)...NUT, 1 (INCL 24)
-
218JM-RA345-00-00 ...NUT, 1 (INCL 23)...NUT, 1 (INCL 23)
-
228MV-K7229-00-00 LABELLABEL
-
238JM-H1860-00-00 SWITCH ASSYSWITCH ASSY
-
248ML-H1860-00-00 SWITCH ASSYSWITCH ASSY
-
258ML-F1697-00-00 ...LABEL, CAUTION 2 (INCL 2) (FRENCH)...LABEL, CAUTION 2 (INCL 2) (FRENCH)
-
258ML-F1696-00-00 ...LABEL, CAUTION (INCL 2) (ENGLISH)...LABEL, CAUTION (INCL 2) (ENGLISH)
-
268ML-F151F-00-00 ...LABEL 3 (INCL 2) (FRENCH)...LABEL 3 (INCL 2) (FRENCH)
-
268ML-F151E-00-00 ...LABEL 2 (INCL 2) (ENGLISH)...LABEL 2 (INCL 2) (ENGLISH)
-
278ML-K7761-00-00 ...LABEL, WARNING 1 (INCL 2)...LABEL, WARNING 1 (INCL 2)
-
288JM-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
298NC-H6284-00-00 STOP SWITCHSTOP SWITCH
-
308NC-H2552-00-00 ...CAP, SWITCH...CAP, SWITCH
-
318NC-H2105-00-00 WIRE HARNESSWIRE HARNESS
