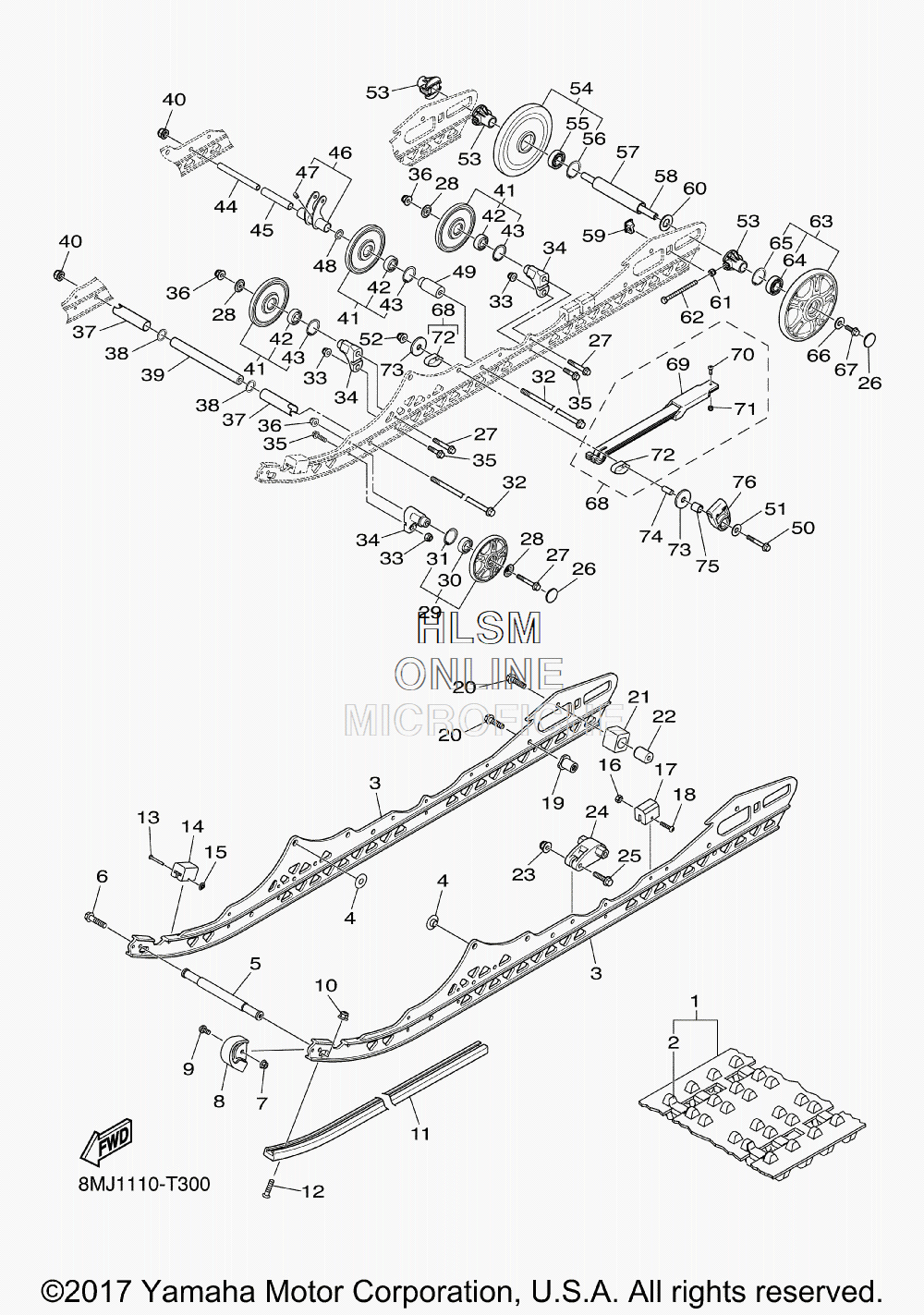

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SR VENTURE DX - 2018 года выпуска
-
№АртикулНазвание
-
18LN-G7110-00-00 TRACK ASSYTRACK ASSY
-
28JR-G7113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38MU-G741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
48JP-RA725-00-00 COLLAR, 13COLLAR, 13
-
58JP-G7485-00-00 SHAFT 3SHAFT 3
-
68JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
78JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
88JP-G7422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
98JP-RA266-00-00 SCREW, M6X1.0X30SCREW, M6X1.0X30
-
108JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
118LN-G7421-10-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
128JM-RA206-00-00 SCREW, 1/4-20X1.125SCREW, 1/4-20X1.125
-
138JM-RAY02-00-00 PIN, 2PIN, 2
-
148JM-G7456-00-00 DAMPER 1DAMPER 1
-
158JP-RA346-00-00 .NUT, 0.125.NUT, 0.125
-
168JP-RA363-00-00 NUT, FLANGE LOCKING M5X0.8NUT, FLANGE LOCKING M5X0.8
-
178JP-G7457-00-00 DAMPER 2DAMPER 2
-
188JP-RA249-00-00 SCREW, M5X0.8X40SCREW, M5X0.8X40
-
198JP-G7368-00-00 NUTNUT
-
208JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
218JP-G745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
228LN-G7368-00-00 NUTNUT
-
238JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
248MJ-G7371-00-00 BUSH, PIVOTBUSH, PIVOT
-
258JP-RA1B2-00-00 BOLT, HEX. M8X1.25X50BOLT, HEX. M8X1.25X50
-
268LN-G7377-00-00 CAPCAP
-
278JP-RA1B5-00-00 BOLT, FLANGE 1BOLT, FLANGE 1
-
288JP-RA466-00-00 WASHER, 9WASHER, 9
-
298JR-G7310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
308JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
318JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
328JP-RA194-10-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
338JP-RA379-00-00 NUT, LOCK 1NUT, LOCK 1
-
348JP-G7419-10-00 BRACKET 7BRACKET 7
-
358JP-RA1B6-00-00 BOLT, FLANGE 2BOLT, FLANGE 2
-
368JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
378JP-RA723-00-00 COLLAR, 11COLLAR, 11
-
388JP-RA437-00-00 WASHER, 0.890X1.19X0.060WASHER, 0.890X1.19X0.060
-
398JP-RA729-00-00 COLLAR, 22.2COLLAR, 22.2
-
408JP-RA378-01-00 NUT, LOCKNUT, LOCK
-
418JP-G7310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
428JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
438JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
448JX-G7487-00-00 SHAFT 5SHAFT 5
-
458JP-RA734-00-00 COLLAR, 18COLLAR, 18
-
468JX-G7349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
478JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
488JP-RA464-00-00 WASHER, PLAINWASHER, PLAIN
-
498JX-G7419-00-00 BRACKET 7BRACKET 7
-
508JP-RA192-00-00 BOLT, FLANGE M8X1.25X80BOLT, FLANGE M8X1.25X80
-
518JP-RA452-00-00 WASHER, 9.12X25.40X2.30WASHER, 9.12X25.40X2.30
-
528JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
538LN-G7534-00-00 WHEEL, GUIDE 1WHEEL, GUIDE 1
-
548LN-G7550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
558JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
568JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
578LN-RA734-00-00 COLLAR, 18COLLAR, 18
-
588LN-G7521-00-00 AXLE, REARAXLE, REAR
-
598JP-G7463-00-00 BRACKET 5BRACKET 5
-
608LN-RA466-00-00 WASHER, 9WASHER, 9
-
618JP-RA372-00-00 NUT, HEX. LOCKING M8X1.25NUT, HEX. LOCKING M8X1.25
-
628JP-RA1B1-00-00 BOLT, HEX. M8X1.25X100BOLT, HEX. M8X1.25X100
-
638LN-G7550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
648JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
658JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
668JP-RA453-00-00 WASHER, M10X29WASHER, M10X29
-
678JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
688MJ-F2260-00-00 SPRING GUIDE SUB-ASSY.SPRING GUIDE SUB-ASSY.
-
698MJ-G7441-00-00 ...SLIDER 1...SLIDER 1
-
708MJ-RA292-00-00 ...SCREW, SET...SCREW, SET
-
718JP-RA360-30-00 ......NUT, FLANGE LOCKING......NUT, FLANGE LOCKING
-
728MJ-RAC10-00-00 ...CLIP, 1...CLIP, 1
-
738JP-G7359-10-00 WASHERWASHER
-
748MJ-RA806-00-00 BUSH, 12DU12BUSH, 12DU12
-
758MJ-G7341-00-00 SPACERSPACER
-
768LN-G7446-00-00 HOOK 1HOOK 1
