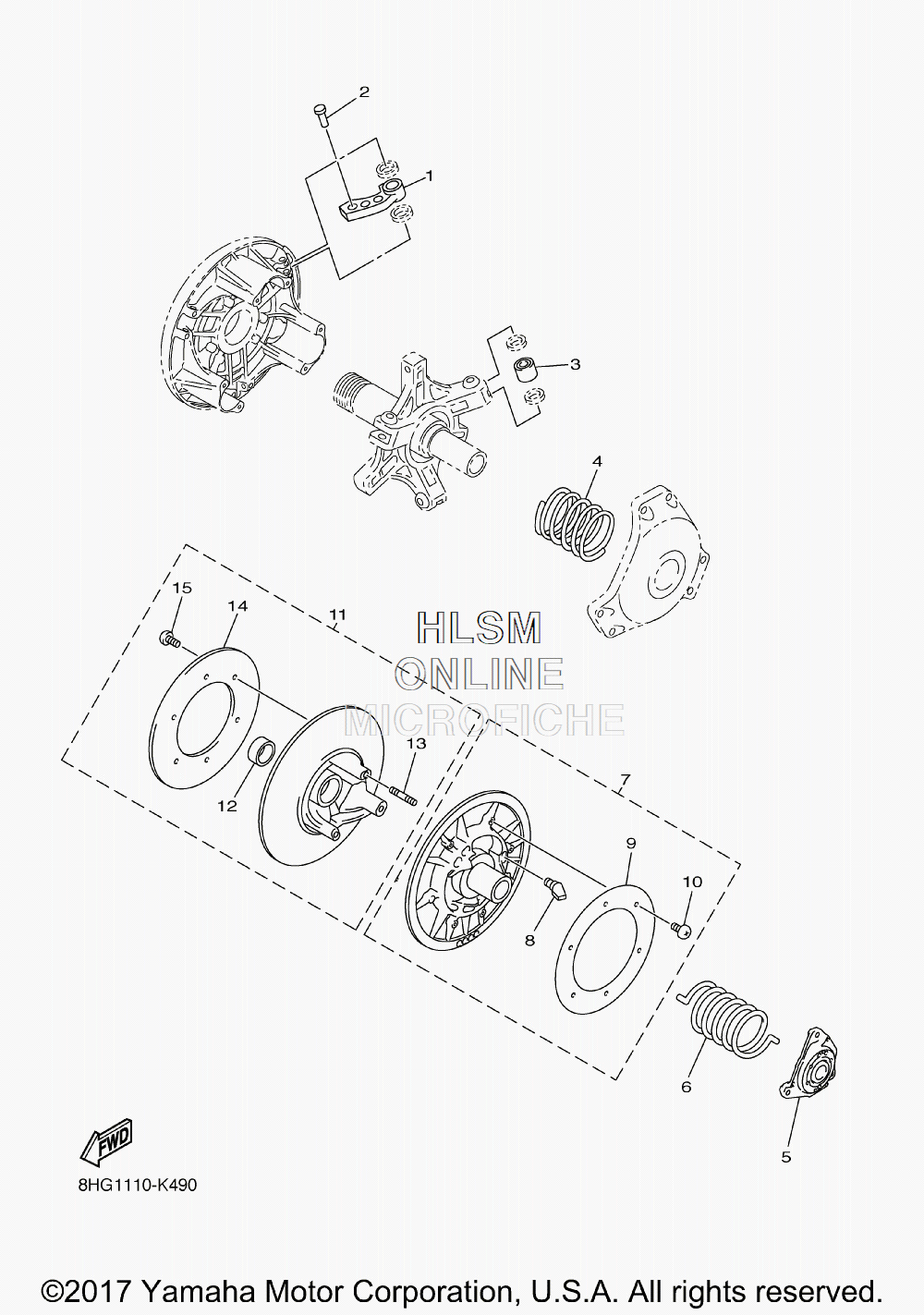

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha SR VENTURE DX - 2018 года выпуска

№

Артикул

Название
1

8ES-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8BU-17605-20-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8FP-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8GC-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8DN-17605-40-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8HF-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8HG-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8KW-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8GL-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
2

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)

RIVET, COUNTERSUNK (AL10.3MM) (OPT)
2

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)

RIVET, COUNTERSUNK (ST10.3MM) (OPT)
2

90266-06001-00 RIVET (AL13.3) (OPT)

RIVET (AL13.3) (OPT)
2

90266-06002-00 RIVET (ST13.3) (OPT)

RIVET (ST13.3) (OPT)
2

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)

RIVET, COUNTERSUNK (ST13.3MM) (OPT)
2

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)

RIVET, COUNTERSUNK (ST13.9MM) (OPT)
2

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)

RIVET, COUNTERSUNK (ST17.2MM) (OPT)
2

90269-06006-00 RIVET (ST17.2MM) (OPT)

RIVET (ST17.2MM) (OPT)
3

8FG-17624-00-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-20-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-30-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-10-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

8FG-17624-40-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
4

90501-551L3-00 SPRING, COMPRESSION (BL-P-BL) (OPT)

SPRING, COMPRESSION (BL-P-BL) (OPT)
4

90501-552L5-00 SPRING, COMPRESSION (BL-GR-BL) (OPT)

SPRING, COMPRESSION (BL-GR-BL) (OPT)
4

90501-581L5-00 SPRING, COMPRESSION (Y-P-Y) (OPT)

SPRING, COMPRESSION (Y-P-Y) (OPT)
4

90501-581L6-00 SPRING, COMPRESSION (GR-P-GR) (OPT)

SPRING, COMPRESSION (GR-P-GR) (OPT)
4

90501-582L1-00 SPRING, COMPRESSION (Y-SL-Y) (OPT)

SPRING, COMPRESSION (Y-SL-Y) (OPT)
4

90501-582L2-00 SPRING, COMPRESSION (GR-SL-GR) (OPT)

SPRING, COMPRESSION (GR-SL-GR) (OPT)
4

90501-582L6-00 SPRING, COMPRESSION (WH-GR-WH) (OPT)

SPRING, COMPRESSION (WH-GR-WH) (OPT)
4

90501-582L7-00 SPRING, COMPRESSION (Y-GR-Y) (OPT)

SPRING, COMPRESSION (Y-GR-Y) (OPT)
4

90501-583L0-00 SPRING, COMPRESSION (BL-WH-BL) (OPT)

SPRING, COMPRESSION (BL-WH-BL) (OPT)
4

90501-583L1-00 SPRING, COMPRESSION (WH-WH-WH) (OPT)

SPRING, COMPRESSION (WH-WH-WH) (OPT)
4

90501-583L4-00 SPRING, COMPRESSION (WH-SL-WH) (OPT)

SPRING, COMPRESSION (WH-SL-WH) (OPT)
4

90501-583L5-00 SPRING, COMPRESSION (WH-P-WH) (OPT)

SPRING, COMPRESSION (WH-P-WH) (OPT)
4

90501-601L7-00 SPRING, COMPRESSION (P-P-P) (OPT)

SPRING, COMPRESSION (P-P-P) (OPT)
4

90501-601L8-00 SPRING, COMPRESSION (OR-P-OR) (OPT)

SPRING, COMPRESSION (OR-P-OR) (OPT)
4

90501-602L3-00 SPRING, COMPRESSION (P-SL-P) (OPT)

SPRING, COMPRESSION (P-SL-P) (OPT)
4

90501-602L8-00 SPRING, COMPRESSION (GR-GR-GR) (OPT)

SPRING, COMPRESSION (GR-GR-GR) (OPT)
4

90501-602L9-00 SPRING, COMPRESSION (P-GR-P) (OPT)

SPRING, COMPRESSION (P-GR-P) (OPT)
4

90501-603L2-00 SPRING, COMPRESSION (Y-WH-Y) (OPT)

SPRING, COMPRESSION (Y-WH-Y) (OPT)
4

90501-603L3-00 SPRING, COMPRESSION (GR-WH-GR) (OPT)

SPRING, COMPRESSION (GR-WH-GR) (OPT)
4

90501-624L8-00 SPRING, COMPRESSION (OR-SL-OR) (OPT)

SPRING, COMPRESSION (OR-SL-OR) (OPT)
4

90501-550A2-00 SPRING, COMPRESSION (BL-BL-BL) (OPT)

SPRING, COMPRESSION (BL-BL-BL) (OPT)
4

90501-580A1-00 SPRING, COMPRESSION (Y-BL-Y) (OPT)

SPRING, COMPRESSION (Y-BL-Y) (OPT)
4

90501-600A1-00 SPRING, COMPRESSION (P-BL-P) (OPT)

SPRING, COMPRESSION (P-BL-P) (OPT)
4

90501-550A3-00 SPRING, COMPRESSION (WH-BL-WH) (OPT)

SPRING, COMPRESSION (WH-BL-WH) (OPT)
4

90501-550A5-00 SPRING, COMPRESSION (BL-Y-BL) (OPT)

SPRING, COMPRESSION (BL-Y-BL) (OPT)
4

90501-550A6-00 SPRING, COMPRESSION (WH-Y-WH) (OPT)

SPRING, COMPRESSION (WH-Y-WH) (OPT)
4

90501-580A3-00 SPRING, COMPRESSION (Y-Y-Y) (OPT)

SPRING, COMPRESSION (Y-Y-Y) (OPT)
4

90501-580A4-00 SPRING, COMPRESSION (GR-Y-GR) (OPT)

SPRING, COMPRESSION (GR-Y-GR) (OPT)
4

90501-600A4-00 SPRING, COMPRESSION (P-Y-P) (OPT)

SPRING, COMPRESSION (P-Y-P) (OPT)
4

90501-600A5-00 SPRING, COMPRESSION (OR-Y-OR) (OPT)

SPRING, COMPRESSION (OR-Y-OR) (OPT)
4

90501-580A2-00 SPRING, COMPRESSION (BL-BR-BL) (OPT)

SPRING, COMPRESSION (BL-BR-BL) (OPT)
4

90501-570A0-00 SPRING, COMPRESSION (BL-SL-BL) (OPT)

SPRING, COMPRESSION (BL-SL-BL) (OPT)
4

90501-550A7-00 SPRING, COMPRESSION (GO-R-GO) (OPT)

SPRING, COMPRESSION (GO-R-GO) (OPT)
5

8FA-17604-00-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-91-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-71-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-51-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-11-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8KG-17604-00-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-31-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
6

90508-60012-00 SPRING, TORSION (PINK) (OPT)

SPRING, TORSION (PINK) (OPT)
6

90508-60007-00 SPRING, TORSION (WHITE) (OPT)

SPRING, TORSION (WHITE) (OPT)
6

90508-60018-00 SPRING, TORSION (P-P) (OPT)

SPRING, TORSION (P-P) (OPT)
6

90508-60016-00 SPRING, TORSION (WH-WH) (OPT)

SPRING, TORSION (WH-WH) (OPT)
6

90508-500B1-00 SPRING, TORSION (BROWN) (OPT)

SPRING, TORSION (BROWN) (OPT)
6

90508-60020-00 SPRING, TORSION (YELLOW) (OPT)

SPRING, TORSION (YELLOW) (OPT)
6

90508-556A7-00 SPRING, TORSION (SILVER) (OPT)

SPRING, TORSION (SILVER) (OPT)
6

90508-536A9-00 SPRING, TORSION (RED) (OPT)

SPRING, TORSION (RED) (OPT)
6

90508-556A2-00 SPRING, TORSION (GREEN) (OPT)

SPRING, TORSION (GREEN) (OPT)
7

8GL-17660-10-00 SECONDARY FIXED SHEAVE COMP. (OPT)

SECONDARY FIXED SHEAVE COMP. (OPT)
8

8AV-17688-10-00 ...SHOE, RAMP (OPT)

...SHOE, RAMP (OPT)
9

8CM-17665-00-00 ...PLATE 1 (OPT)

...PLATE 1 (OPT)
10

90150-05040-00 ...SCREW, ROUND HEAD (OPT)

...SCREW, ROUND HEAD (OPT)
11

8BU-17670-10-00 SECONDARY SLIDING SHEAVE (OPT)

SECONDARY SLIDING SHEAVE (OPT)
12

90384-38243-00 ...BUSH, BIMETAL FORMED (OPT)

...BUSH, BIMETAL FORMED (OPT)
13

95617-08630-00 ...BOLT, STUD (OPT)

...BOLT, STUD (OPT)
14

8CM-17675-00-00 ...PLATE 2 (OPT)

...PLATE 2 (OPT)
15

90150-05040-00 ...SCREW, ROUND HEAD (OPT)

...SCREW, ROUND HEAD (OPT)
