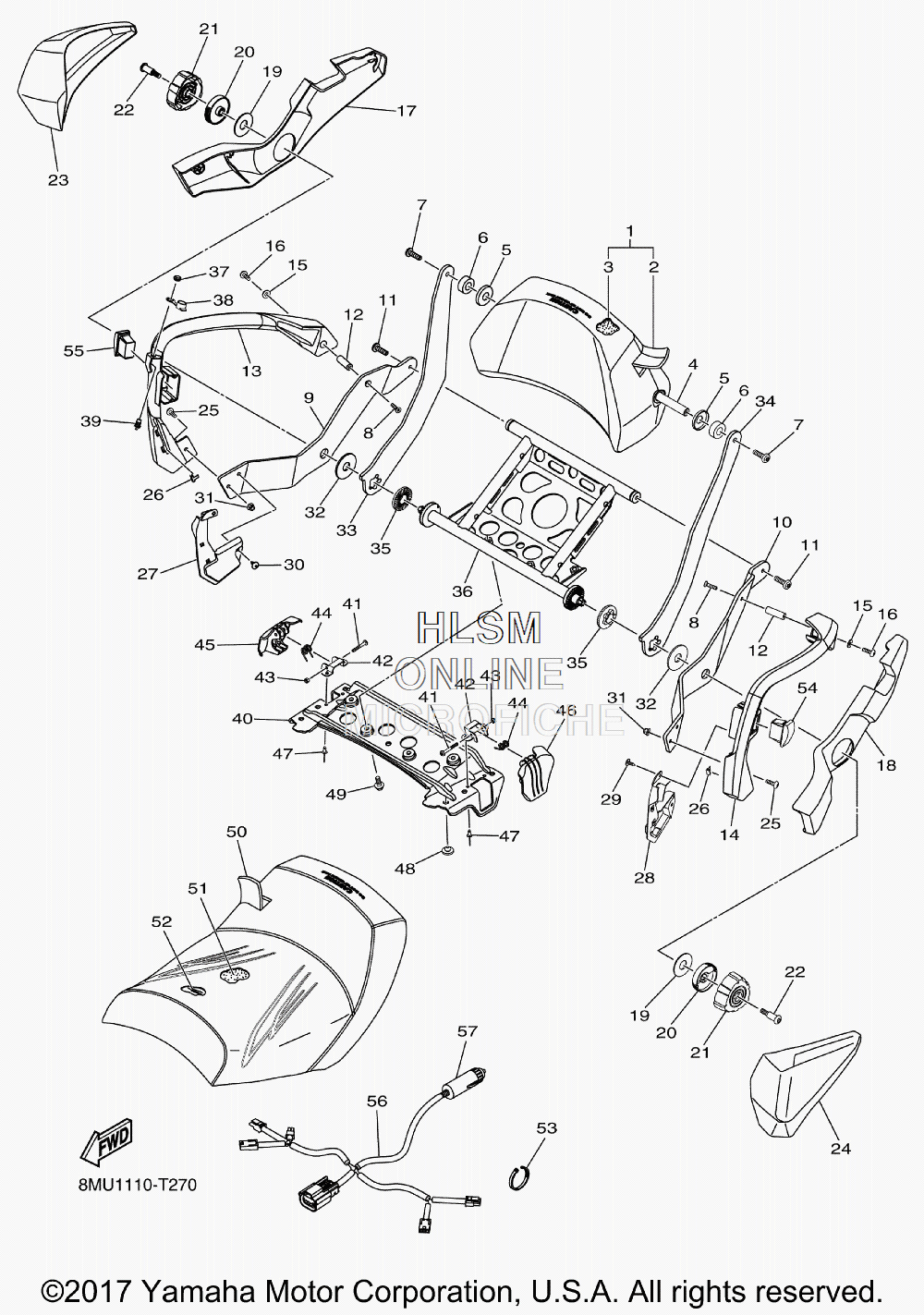

SEAT 2 для Yamaha SR VENTURE DX - 2018 года выпуска
-
№АртикулНазвание
-
18MU-F4790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
28MU-F4791-00-00 ...COVER, SEAT BACK...COVER, SEAT BACK
-
38MU-F842R-00-00 ...CUSHION 1...CUSHION 1
-
48MU-F381E-00-00 SHAFTSHAFT
-
58MU-RA441-00-00 WASHER, 1/4X0.625X0.065WASHER, 1/4X0.625X0.065
-
68MU-G7341-00-00 SPACERSPACER
-
78JP-RA239-20-00 SCREW, 5SCREW, 5
-
88JP-RA235-20-00 SCREW, 1SCREW, 1
-
98MU-F2544-00-00 BRACKET, BODY MOUNTING 2BRACKET, BODY MOUNTING 2
-
108MU-F2543-00-00 BRACKET, BODY MOUNTING 1BRACKET, BODY MOUNTING 1
-
118JP-RA235-00-00 SCREW, 1SCREW, 1
-
128MU-F381K-00-00 SHAFT 1SHAFT 1
-
138MU-K7572-00-00 GRIP, ASSIST 2GRIP, ASSIST 2
-
148MU-K7571-00-00 GRIP, ASSIST 1GRIP, ASSIST 1
-
158MU-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
168JP-RA245-10-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
178MU-F843T-00-00 COVER, ARM REST 2COVER, ARM REST 2
-
188MU-F843R-00-00 COVER, ARM REST 1COVER, ARM REST 1
-
198MU-G7341-10-00 SPACERSPACER
-
208MU-F2178-00-00 TENSIONERTENSIONER
-
218MU-F4288-00-00 KNOBKNOB
-
228MU-F3767-00-00 BOLTBOLT
-
238MU-F6145-00-00 COVER, HANDLE UPPER 2COVER, HANDLE UPPER 2
-
248MU-F6143-00-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
258JP-RA265-00-00 SCREW, M6X1.0X30SCREW, M6X1.0X30
-
268JP-RAC12-00-00 CLIP, 3CLIP, 3
-
278MU-H722G-00-00 COVER HARNESS 2COVER HARNESS 2
-
288MU-H7228-00-00 COVER HARNESSCOVER HARNESS
-
298KC-RA290-00-00 SCREWSCREW
-
308JM-RA200-00-00 SCREW,M6-16SCREW,M6-16
-
318JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
328MU-F4746-00-00 WASHER, SEATWASHER, SEAT
-
338MU-F479L-00-00 BRACKET, SEAT BACK 2BRACKET, SEAT BACK 2
-
348MU-F4797-00-00 BRACKET, SEAT BACKBRACKET, SEAT BACK
-
358MU-F471D-00-00 PLATE, LOCK 1PLATE, LOCK 1
-
368MU-F472G-00-00 BASE SEAT SETBASE SEAT SET
-
378LJ-K6169-00-00 NUTNUT
-
388LJ-K7563-00-00 COVER, 3COVER, 3
-
398LJ-H3619-00-00 PLUG, HEATERPLUG, HEATER
-
408MU-F475B-00-00 SEAT BASE, UNDERSEAT BASE, UNDER
-
418JP-RA249-10-00 SCREW, M5X0.8X40SCREW, M5X0.8X40
-
428MU-F4718-00-00 BRACKET, SEATBRACKET, SEAT
-
438JP-RA370-00-00 NUT, HEX. LOCKINGNUT, HEX. LOCKING
-
448MU-F478H-00-00 SPRING, LOCKSPRING, LOCK
-
458MU-F477K-00-00 HOOK, SEAT LEVER 2HOOK, SEAT LEVER 2
-
468MU-F477J-00-00 HOOK, SEAT LEVER 1HOOK, SEAT LEVER 1
-
478JP-RA528-00-00 RIVET, 3/16RIVET, 3/16
-
488JP-E2465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
498JP-RA240-10-00 SCREW, M5X0.8X12SCREW, M5X0.8X12
-
508MU-F470H-00-00 SEAT COVER COMP. ,2SEAT COVER COMP. ,2
-
518MU-F4753-00-00 CUSHIONCUSHION
-
528MU-H2961-00-00 HEATER, SEAT 2HEATER, SEAT 2
-
538JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
548JP-H2627-00-00 SWITCHSWITCH
-
558MU-H259E-00-00 SWITCH ASSYSWITCH ASSY
-
568MU-H2386-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
578MU-H4762-00-00 GROMMETGROMMET
